Description
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

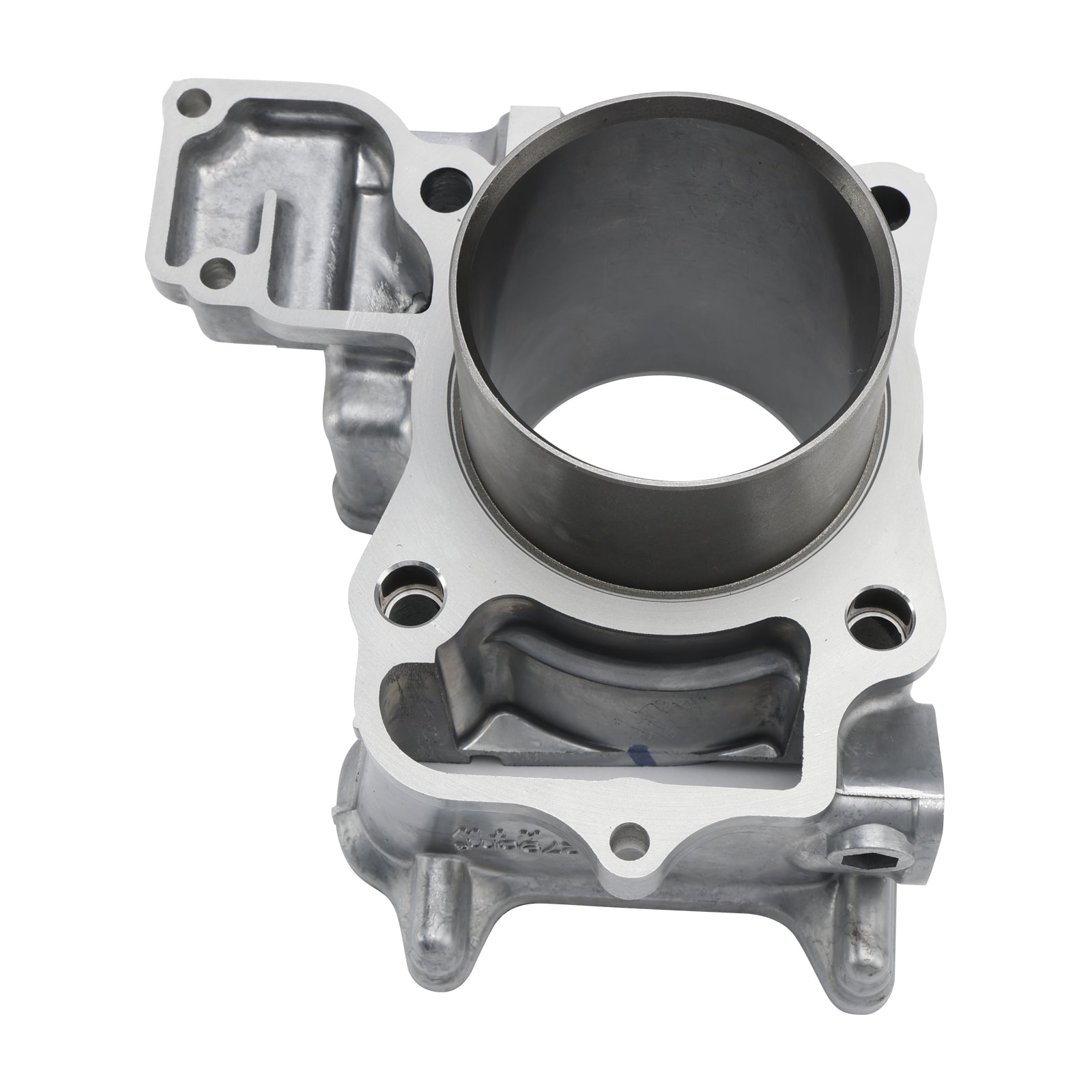

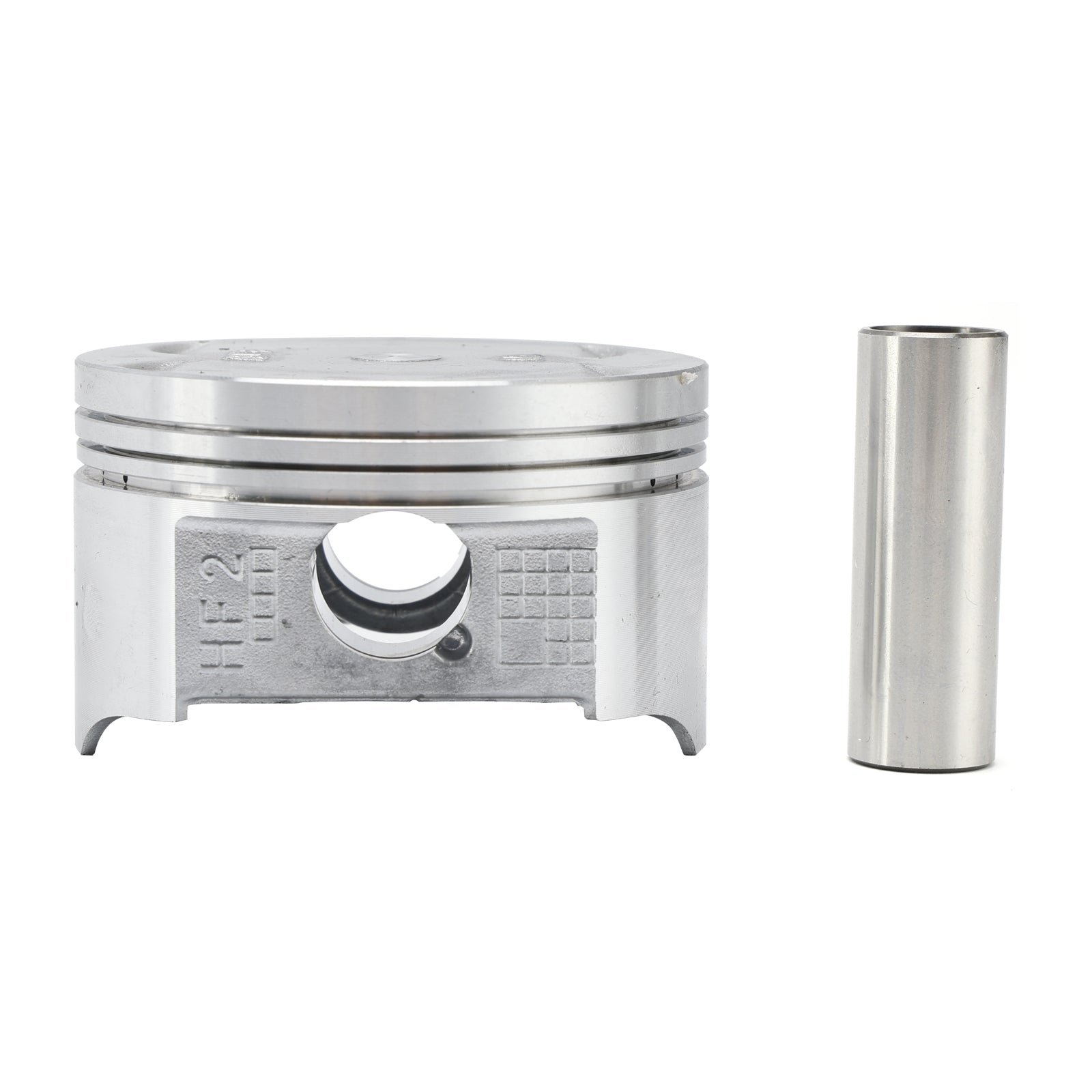

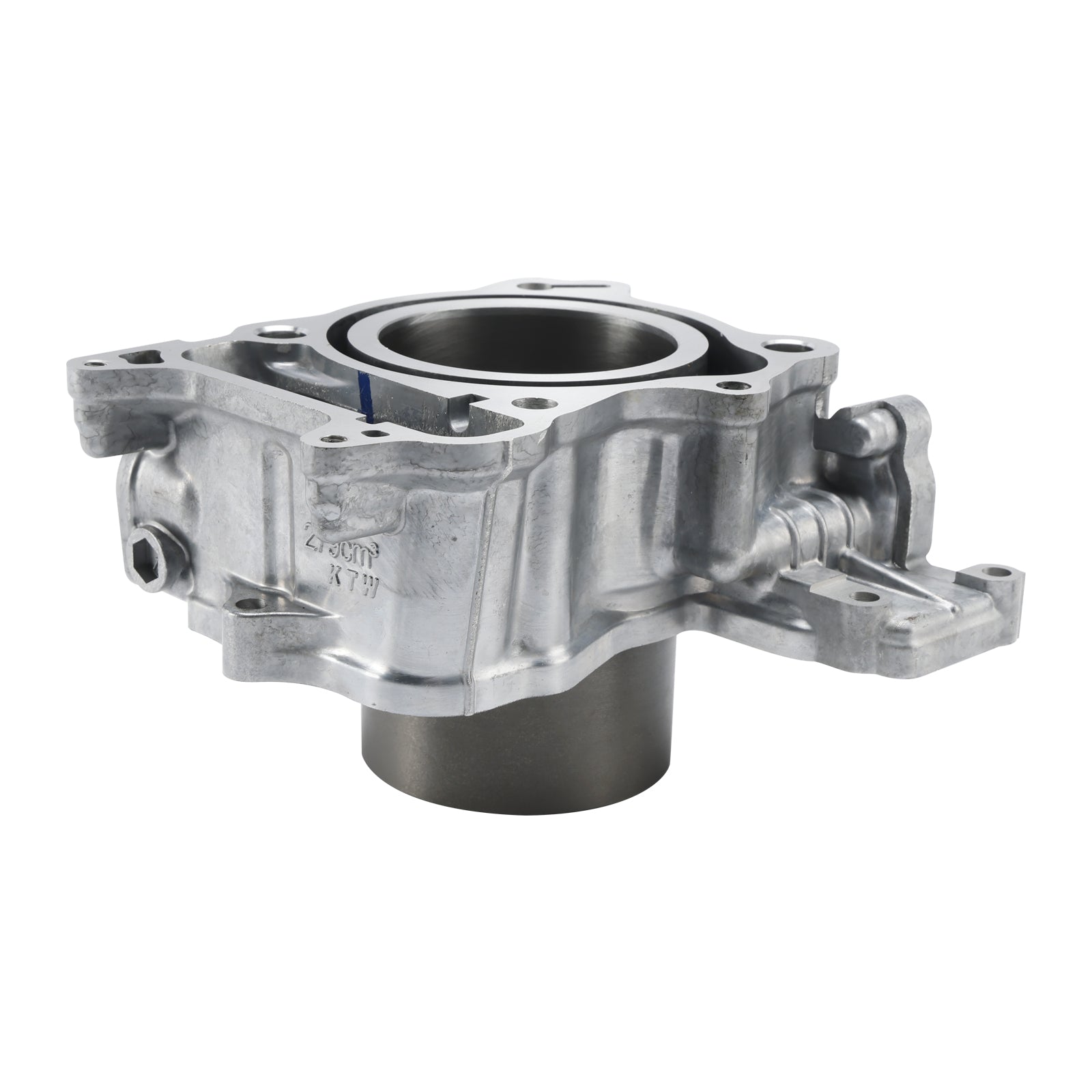

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.

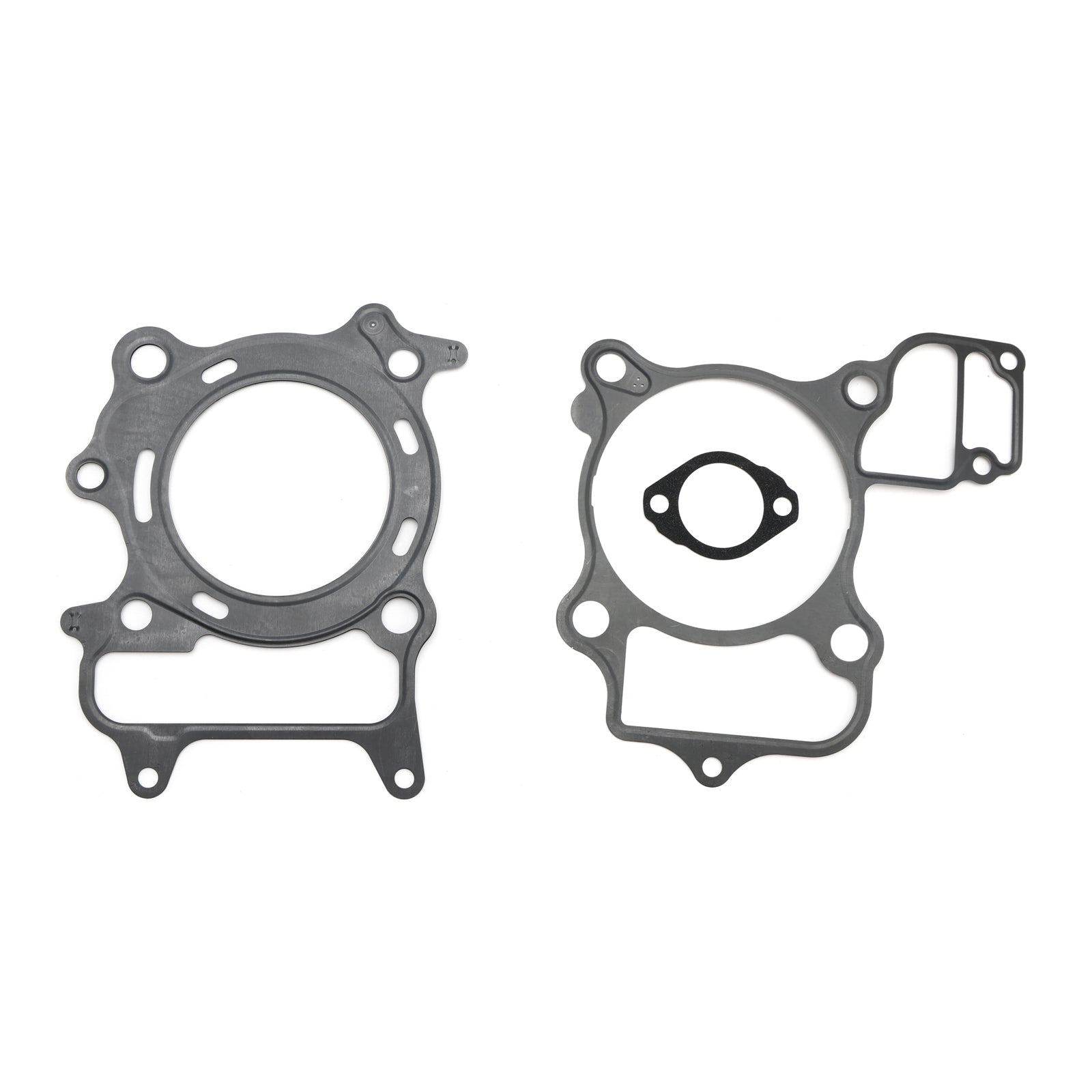

Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 72.0 mm x 68.5 mm stroke, 17mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 279cc
Engine type: 4-Stroke
Bore Type: Standard Bore
Bore diameter: STD 72mm
Stroke: 68.5mm
Pin diameter: 17mm
Replacement Part Number:
Cylinder: 12100-KTW-901, 12100-K04-931
Cylinder Base Gasket: 12191-KTW-901
Cylinder Head Gasket: 12251-KTW-901
Cam Chain Adjust Gasket: 14555-KAB-771, 14555-K04-931
Piston (Std): 13101-KTW-901, 13101-K04-930
Pin, Piston: 13111-MBG-000, 13111-K04-930

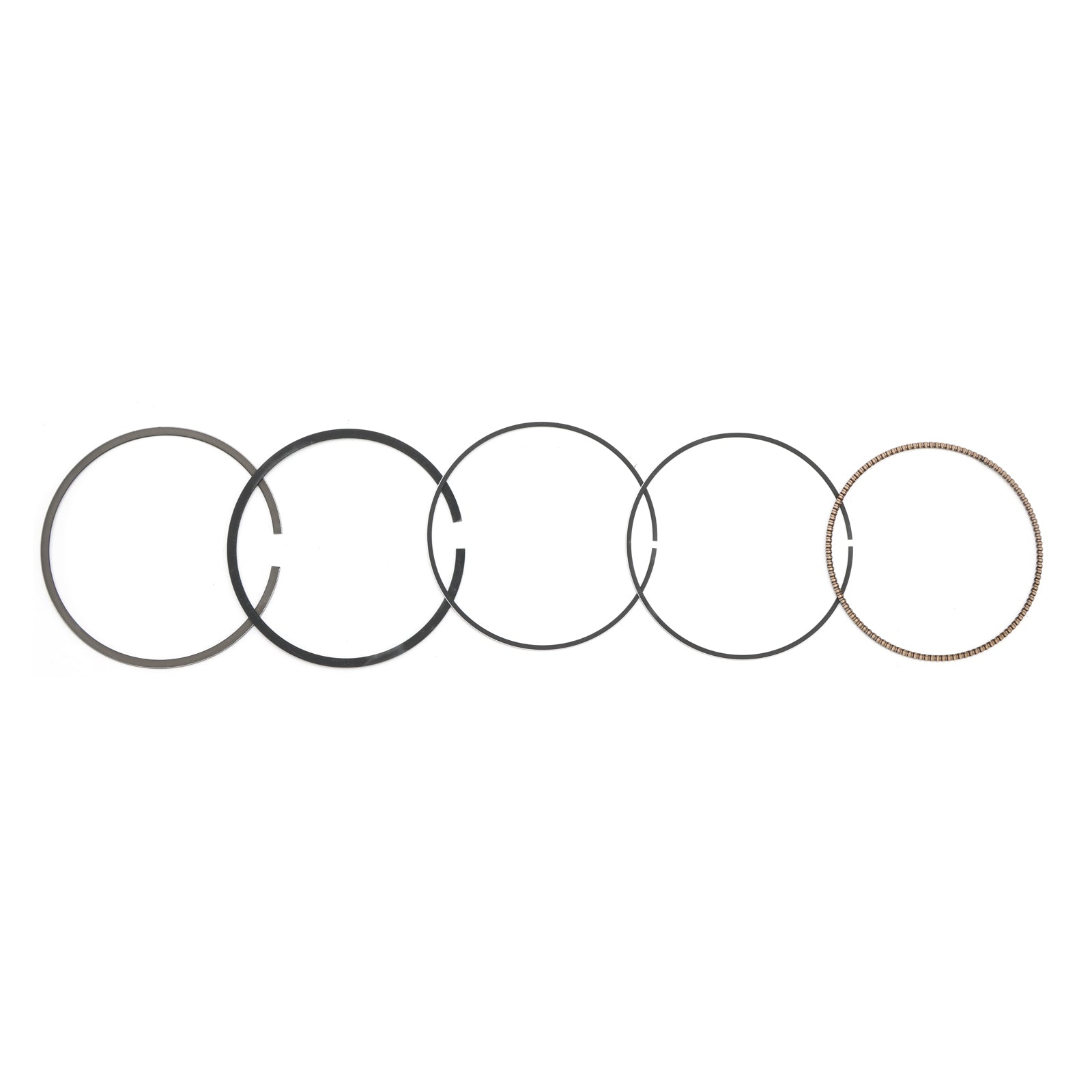

Piston Ring Set (Std): 13011-KTW-900
Circlips, piston (2): 94601-17000
Fits Make/Model/Year:
Fit for Honda SH 300 i (NF02A) 2008 - 2010
Fit for Honda SH 300 i A ABS (NF02B) 2007 - 2010
Fit for Honda SH 300 i A ABS (NF02D) 2011 - 2015
Fit for Honda SH 300 i A ABS (NF05A) 2016 - 2018
Fit for Honda SH 300 i A ABS (NF05B) 2019 - 2020
Fit for Honda NSS 300 Forza (NF04A) 2013 - 2017
Fit for Honda NSS 300 A Forza ABS (NF04B) 2013 - 2017
Fit for Honda NSS 300 A Forza ABS (NF08A) 2018 - 2020
Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x 17mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Camchain Gasket
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
