Description
Features:
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, easy installation.
3.Highest grade lamination materials.
4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.
6.Connector included.
7.All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

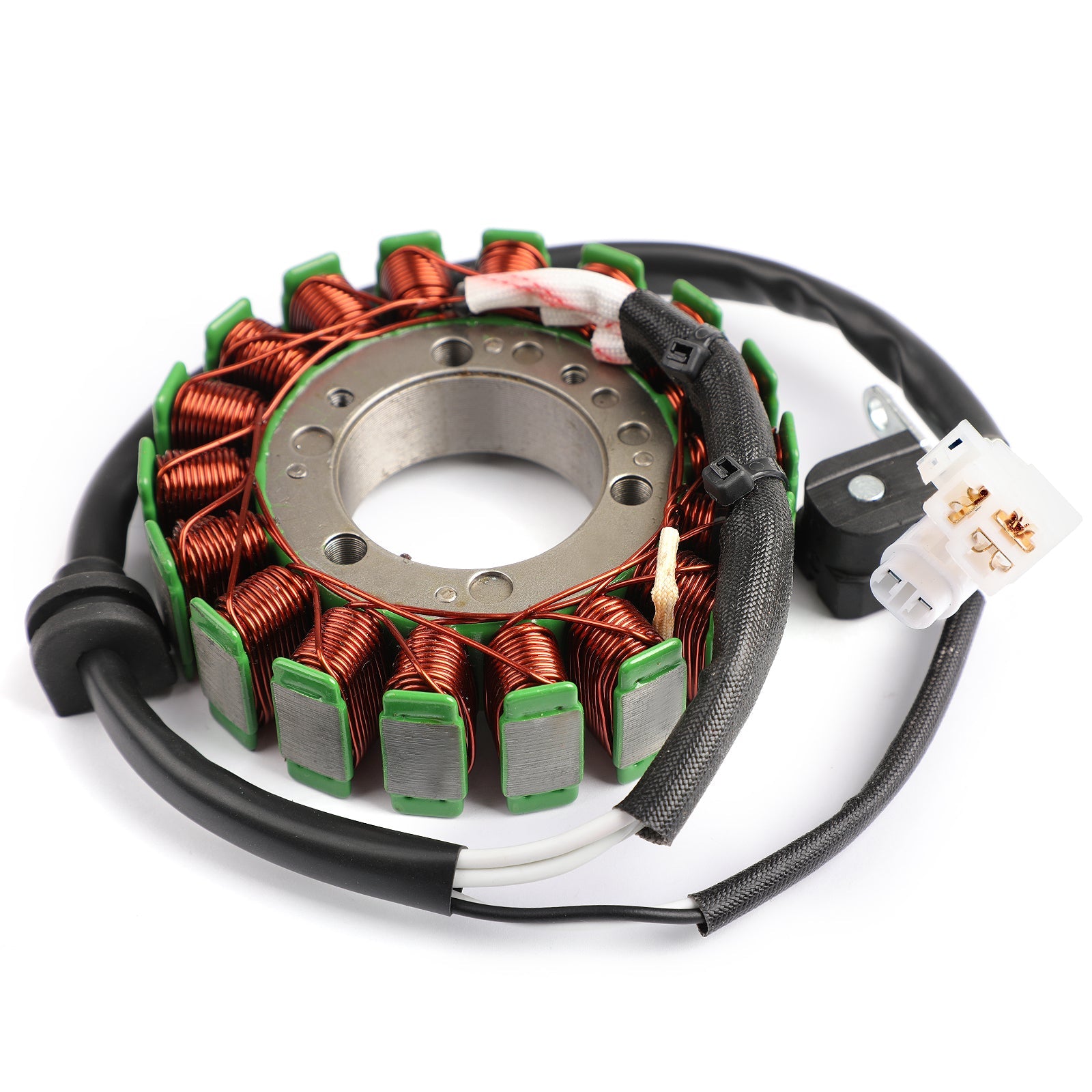

Type: Generator Stator Coil
OEM Replacement Part Number:
8EK-81410-00
8DN-81410-00
8EK-81410-01
8EK-81410-10

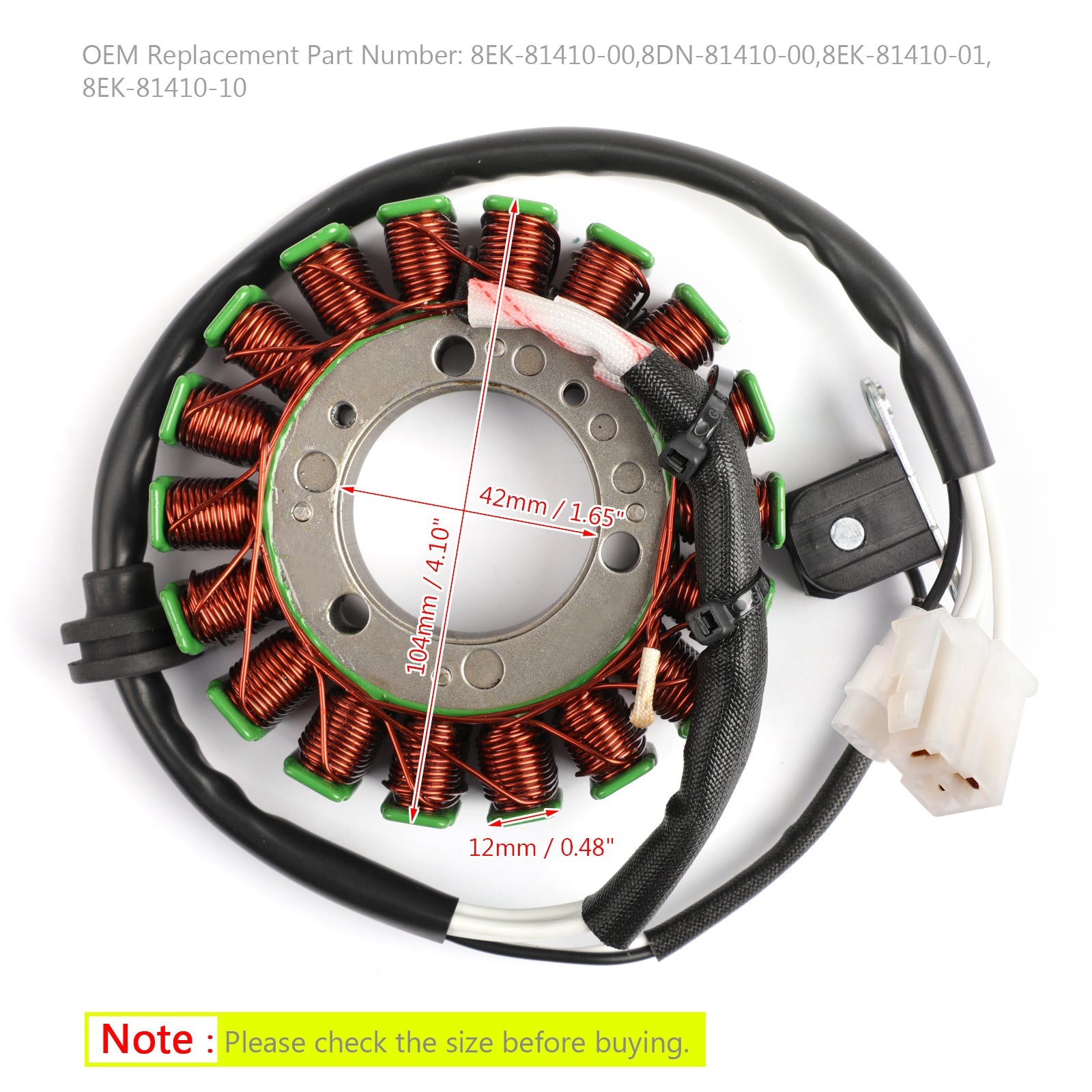

Dimensions :
Interior diameter : 42mm / 1.65"
Exterior diameter : 104mm / 4.10"
Thickness : 12mm / 0.48"
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+2)
FITMENT:
For Yamaha SRX700 2000-2002
For Yamaha SX Viper 700 2002-2006
For Yamaha Venture 700 2004
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
