Description
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

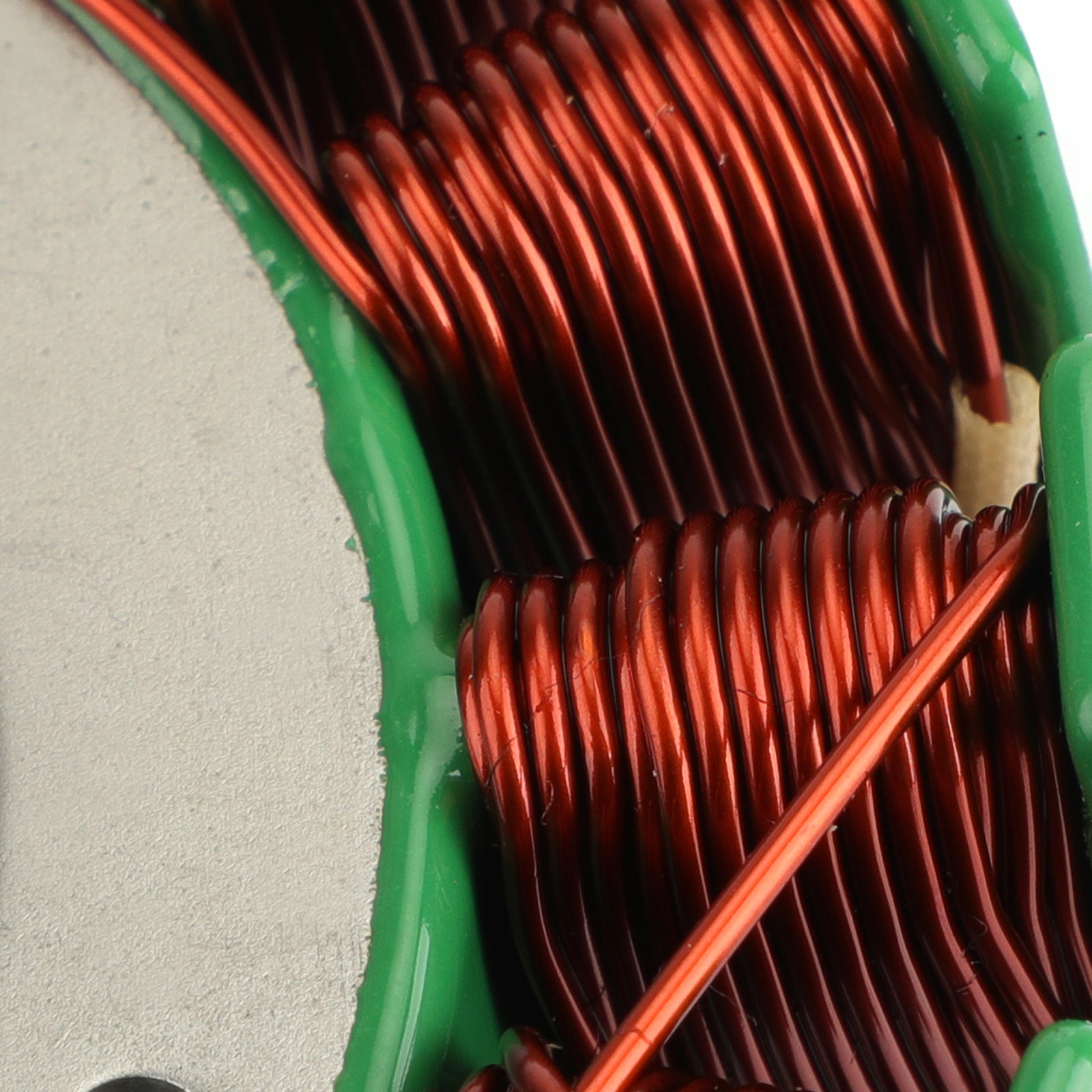

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

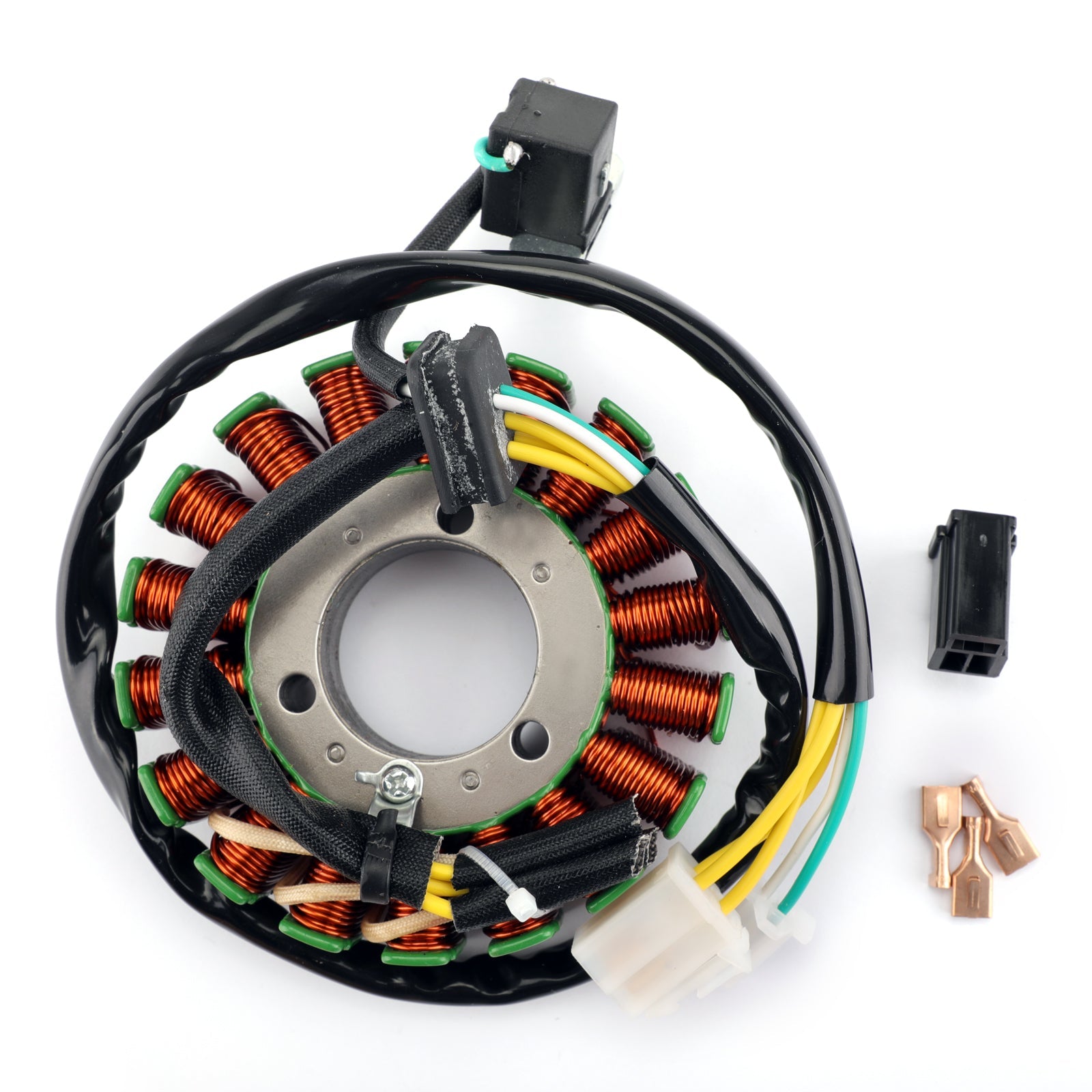

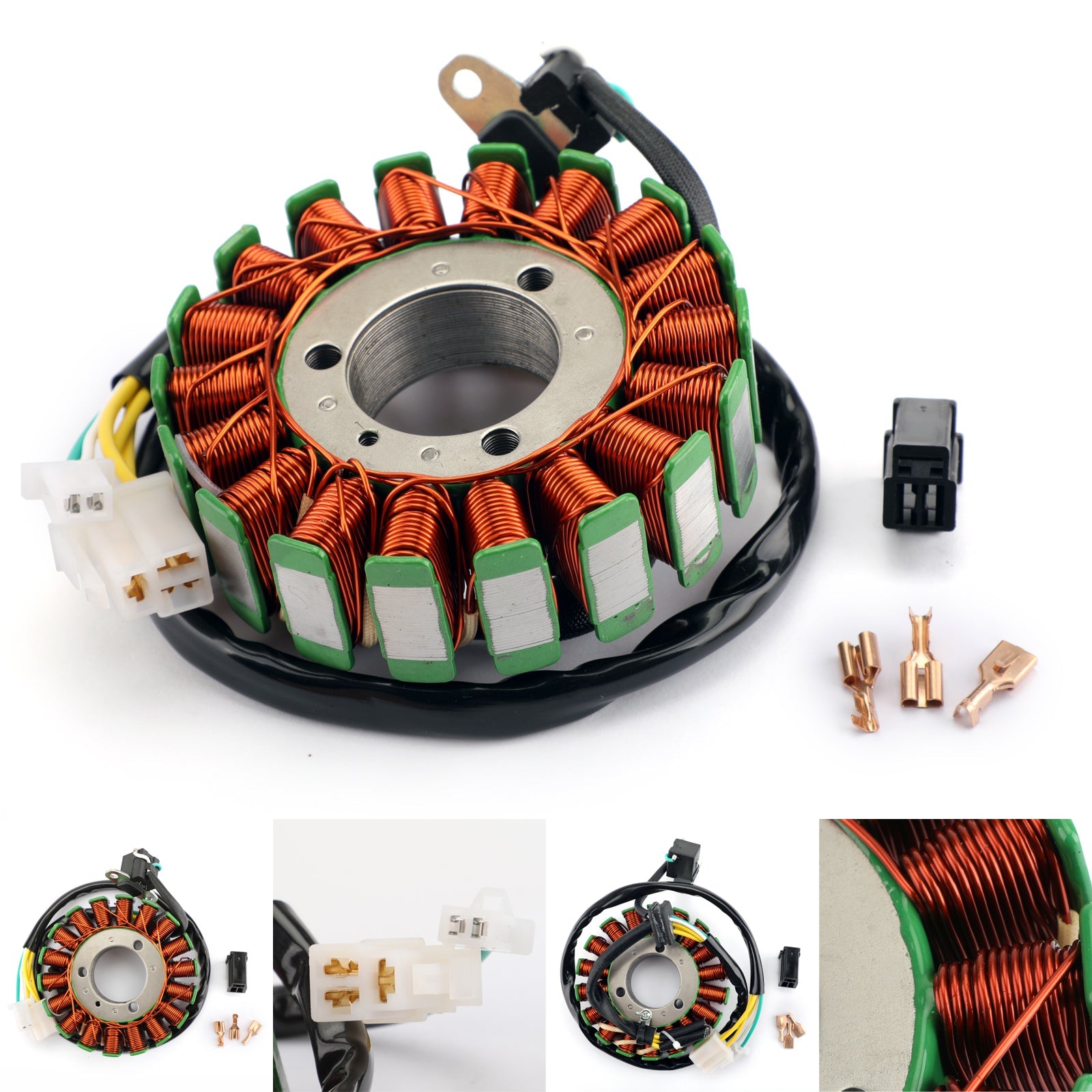

Type: Generator Stator Coil
Replacement Part Number:
32101-17G00
32101-17G01
32101-17G02
32101-17G10
32101-17G12
32101-17G13
Dimensions :
Interior diameter : 38mm / 1.48"
Exterior diameter : 107mm / 4.23"
Thickness : 12mm / 0.47"
Other specifications :
Number of wires: 5
Number of pins: 5

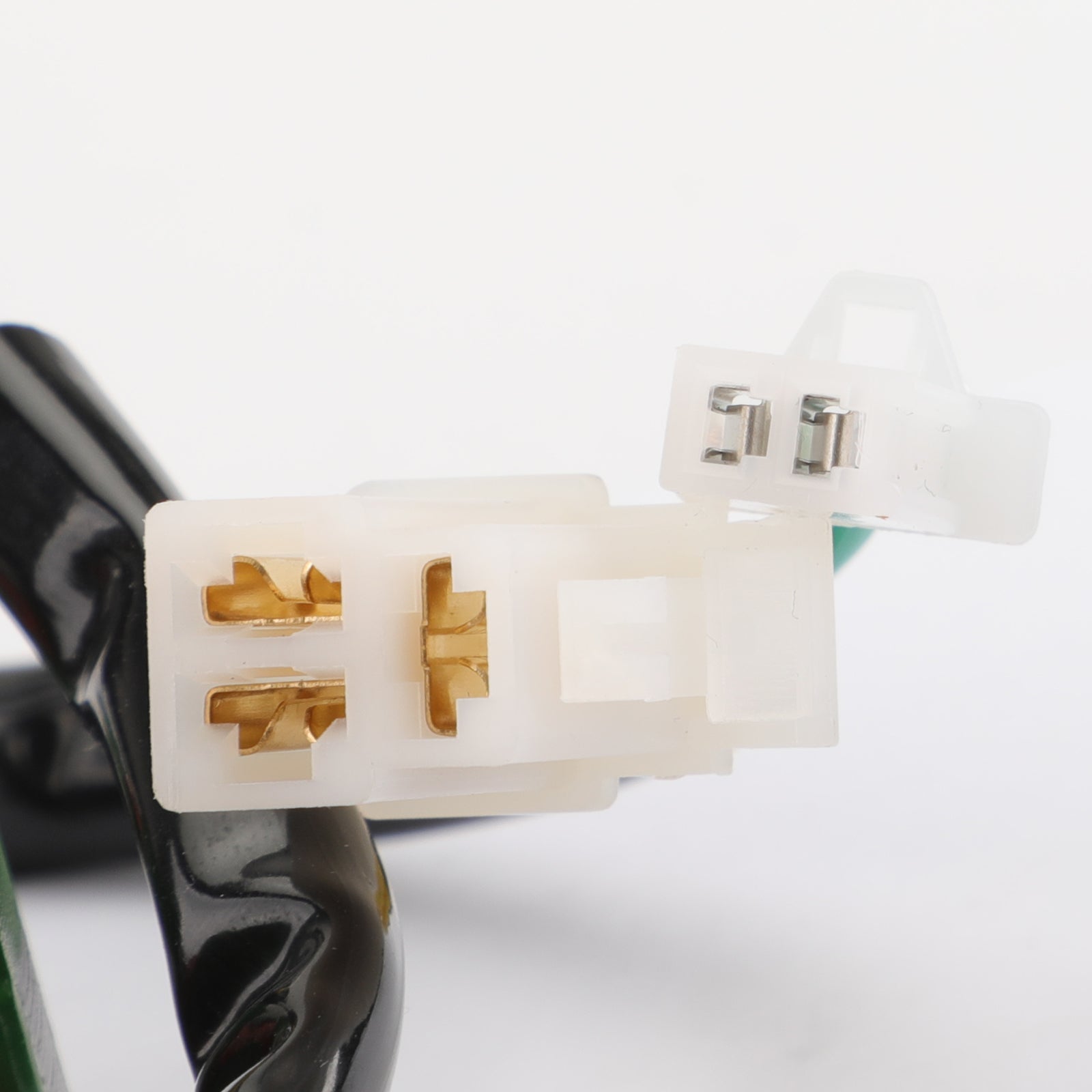

Number of plugs: 2
Number of fixation holes: 3
FITMENT:
For Suzuki SV650 2003-2012
For Suzuki SV650S 2003-2007
For Suzuki SV650 ABS 2007-2012
For Suzuki DL650 V-Strom 2004-2010
For Suzuki DL650 (ABS) V-Strom 2007-2010
For Suzuki DL650 V-Strom 2011-2016
For Suzuki DL650 (ABS) V-Strom 2011-2016
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
