Description
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

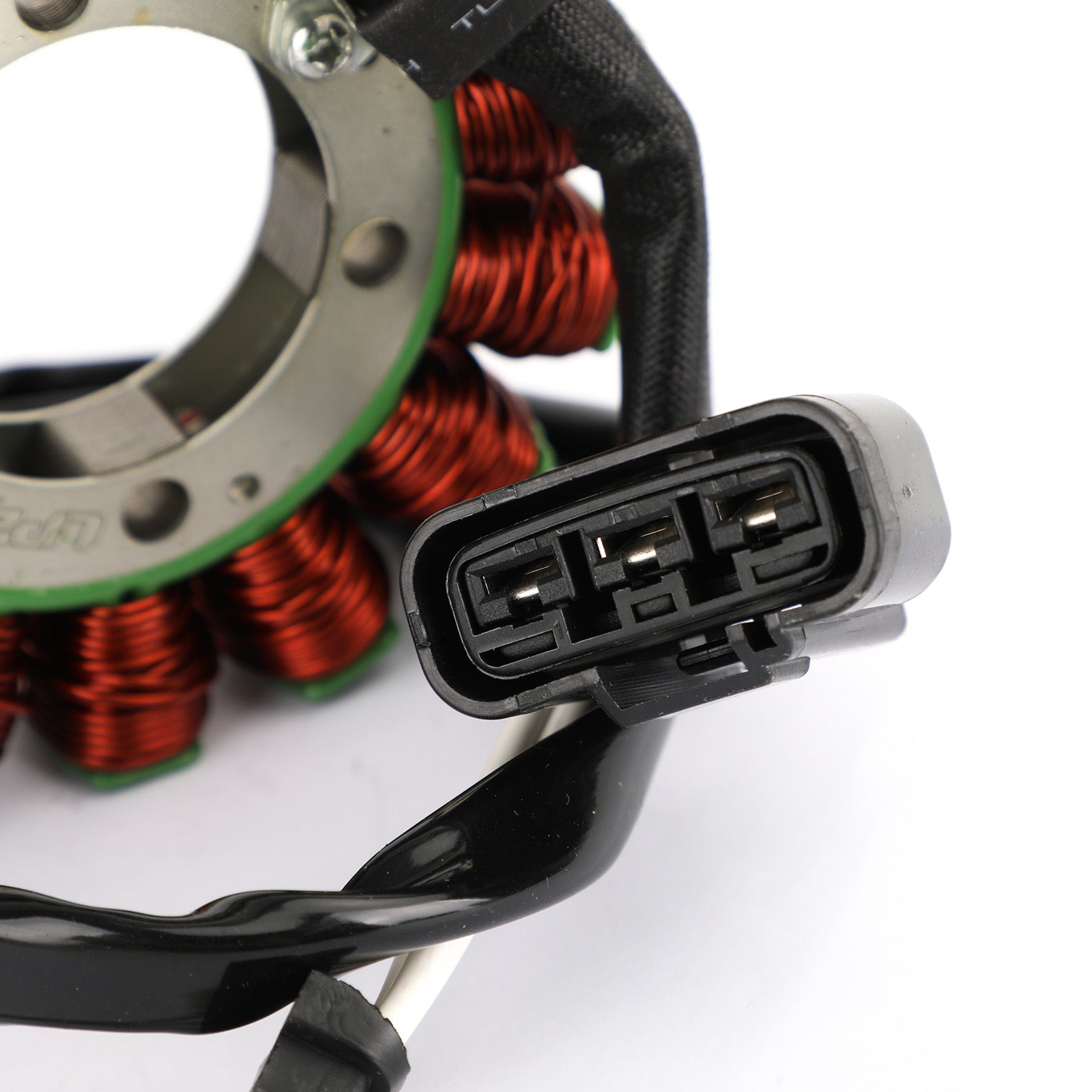

Type: Generator Stator Coil
Dimensions :
Interior diameter : 41.9mm
Exterior diameter : 104.3mm
Pole's Thickness : 26mm
Pole's Width : 13.2mm
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5
Number of poles: 18
REPLACEMENT PART NUMBERS:
21003-0174
21003-0203
21003-0129
Fitments:
Fit for Kawasaki ZR900 Z900 2017-2020
Fit for Kawasaki ZR900 Z900 ABS 2017-2020
Fit for Kawasaki KLZ1000 Versys 1000 2012-2014
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
