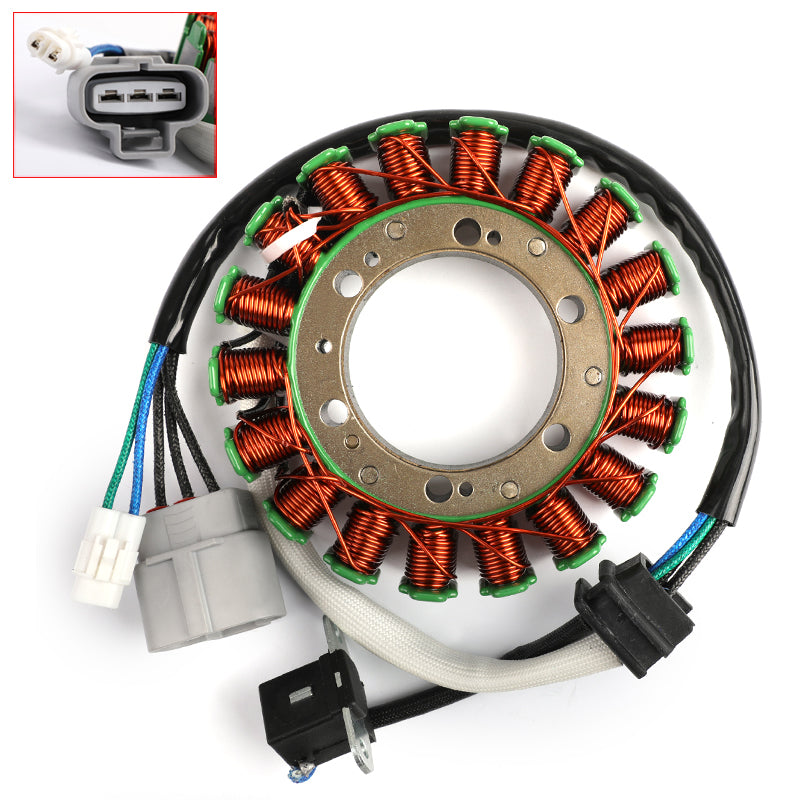

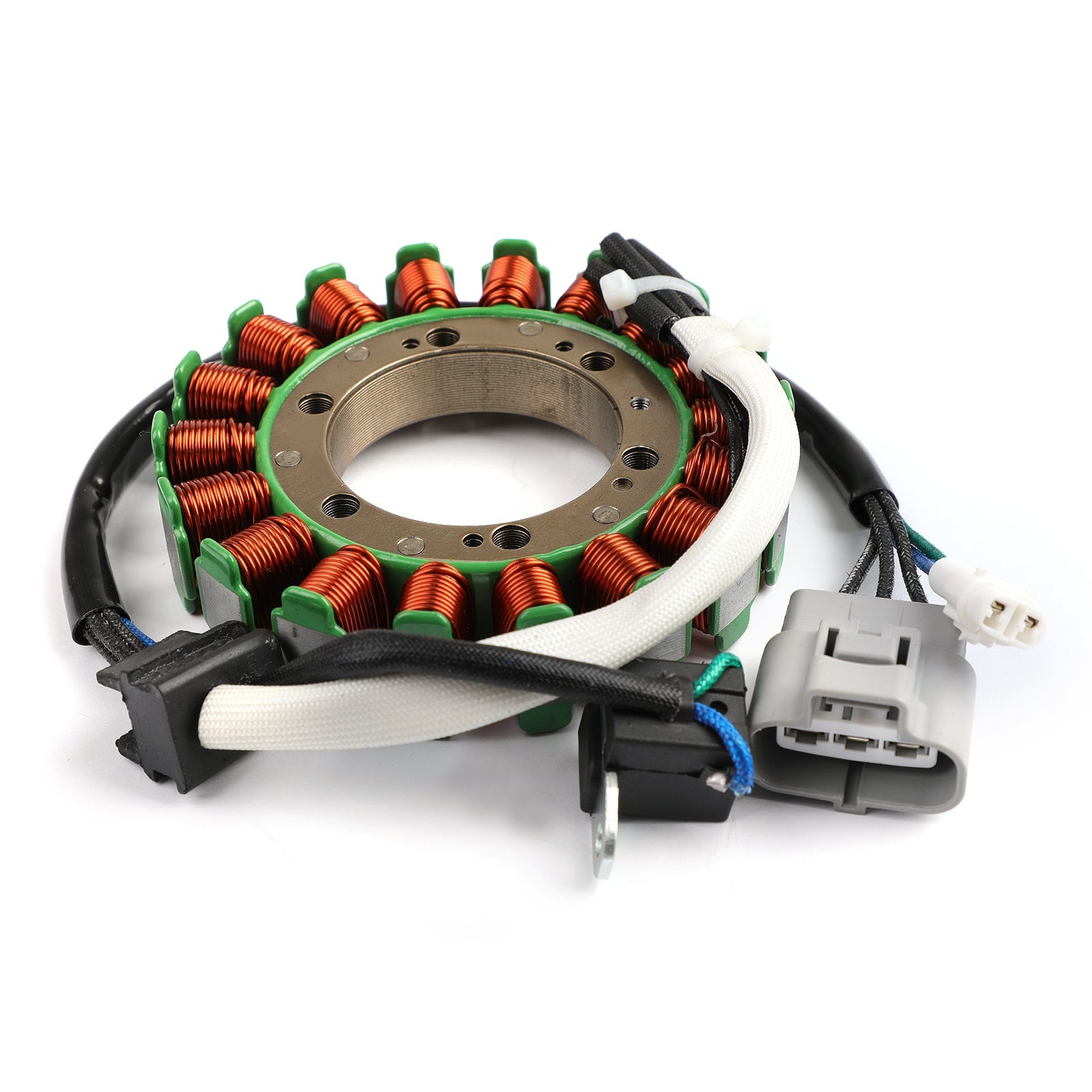

Generator Stator For Suzuki LTA400 LT-A400 LTF400 LT-F400 KingQuad 400 2008-2017 Generic

SKU: M550-A257

Price:
Sale priceR 1,519.09 ZAR

Description

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

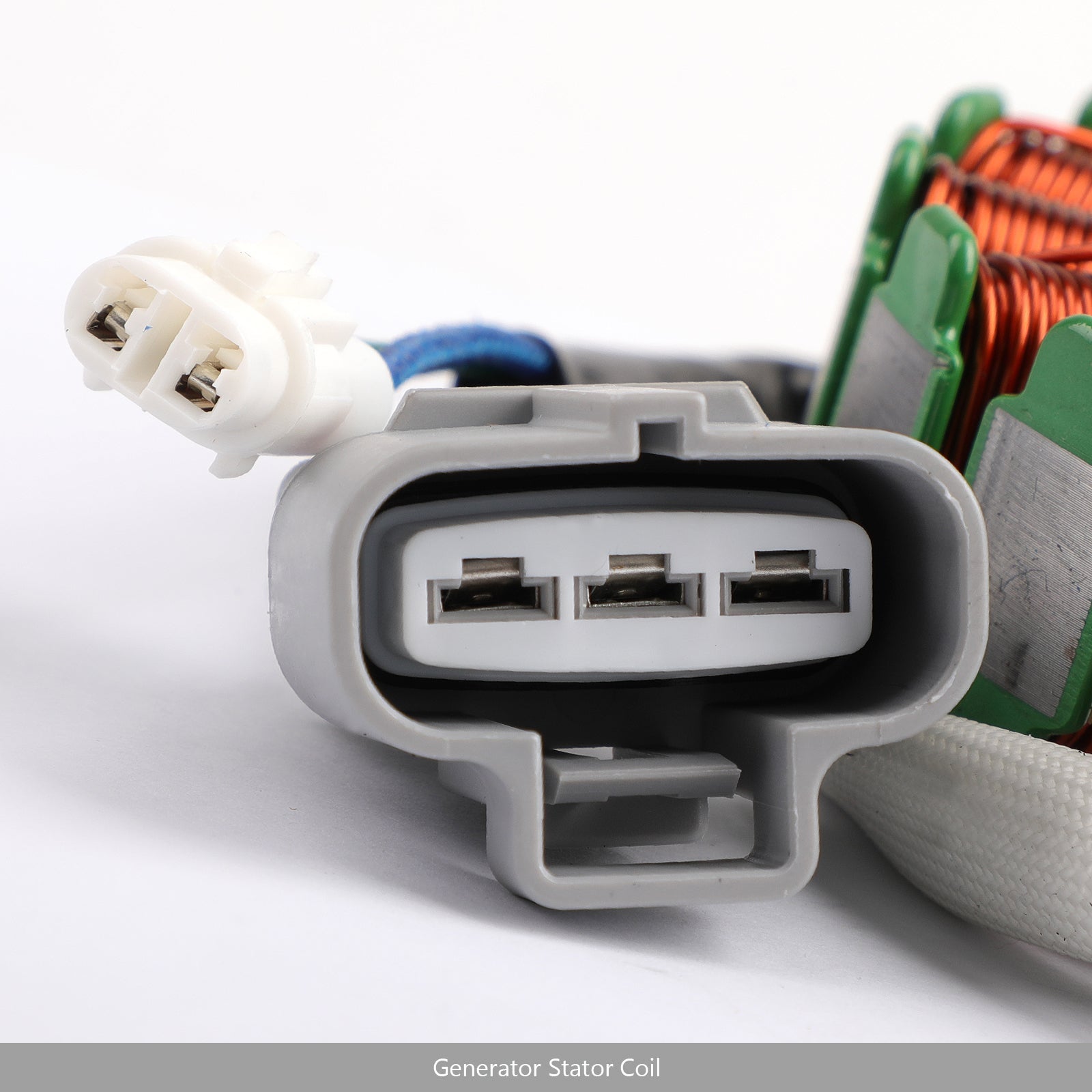

Connector included.
All products shipped are tested.

Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 32101-27H00,32101-27H10

Generator Stator For Suzuki LTA400 LT-A400 LTF400 LT-F400 KingQuad 400 2008-2017 Generic


Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 118mm / 4.65"
Thickness : 15mm / 0.58"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5(+4)

Fitment:
For Suzuki LTA400 KingQuad 2008-2017
For Suzuki LT-A400 KingQuad 400 2WD 2008-2012
For Suzuki LT-A400 KingQuad 400 4WD 2008-2012
For Suzuki LT-A400 KingQuad 400 ASi 2WD 2014
For Suzuki LT-A400 KingQuad 400 ASi 4WD Special Edition 2013-2017
For Suzuki LT-A400 KingQuad 400 ASi 4WD 2013-2017
For Suzuki LTF400 KingQuad 2008-2017
For Suzuki LT-F400 KingQuad 400 2WD 2008-2012
For Suzuki LT-F400 KingQuad 400 4WD 2008-2017

Package Include:
1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Delivery Time: 3-8 working days

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
