Description
Feature:
1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect.
2: Aluminum Outer Case material, long term stable and reliable.
3: Easy to install, anti-aging, good heat dissipation.

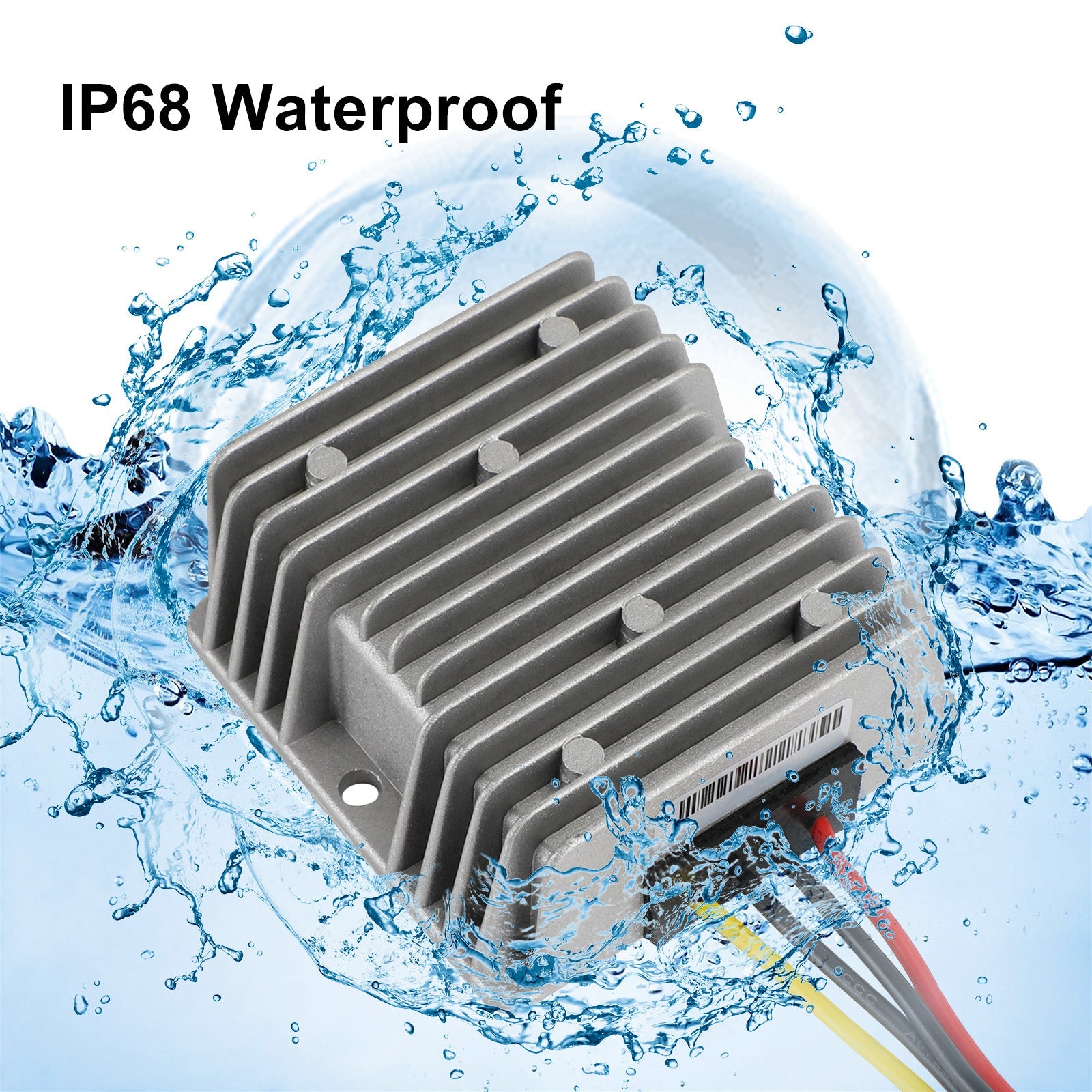

4: IP68 waterproof and shockproof design, suitable for different outdoor harsh environment.
5: With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.
Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input Voltage: 24V DC
Input Voltage Range: 15-40V DC
Output Voltage: 12V
Output Current: 25A
Output Rated Power: 300W
Conversion efficiency: 92%~96%
Operating Temperature: -40℃ to +80℃
Waterproof Rating: Ip68
Static power consumption: 10~15ma
Wire lengths: 130mm/5.12inches
Size: 74 x 74 x 32 mm/2.91 x 2.91 x 1.26 inches

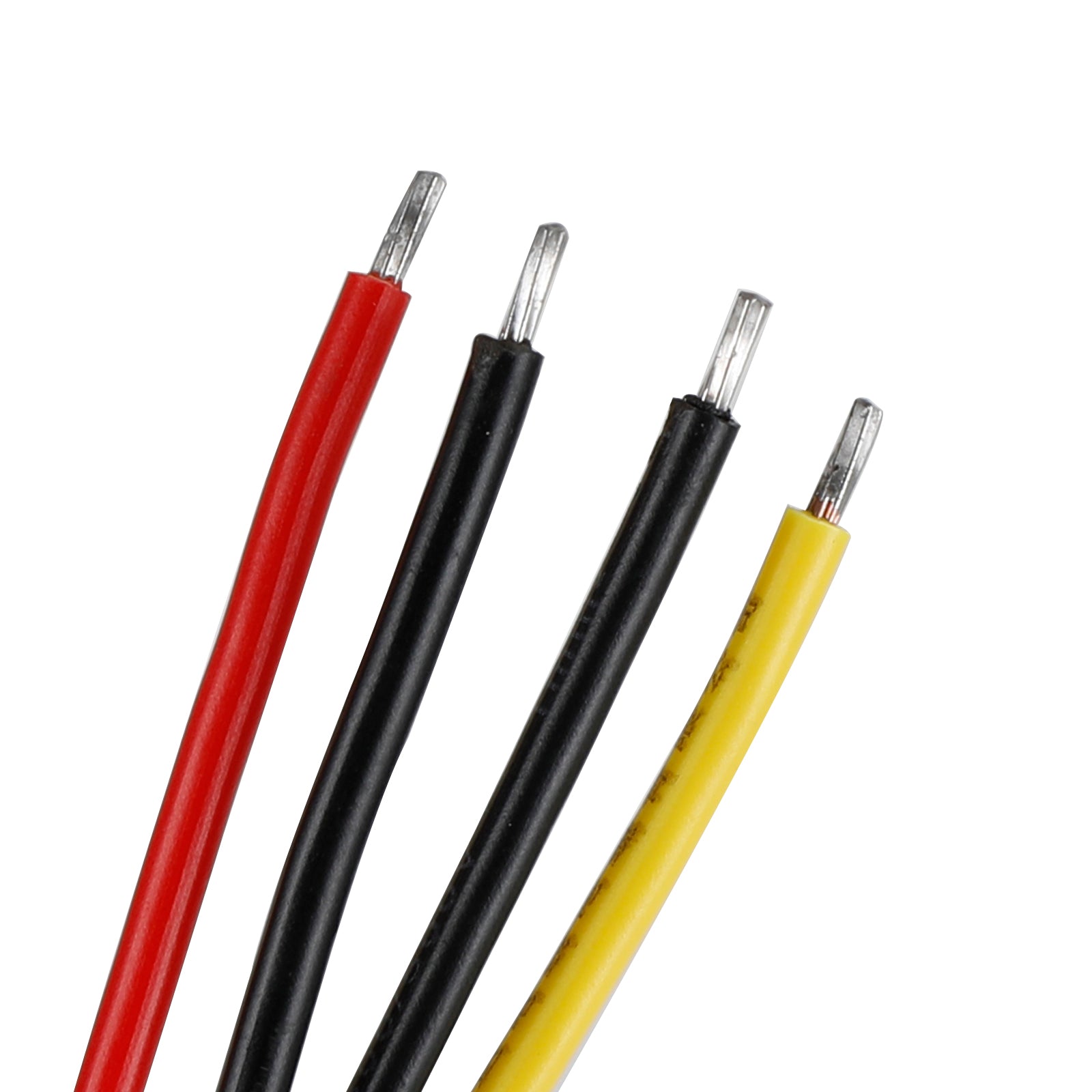

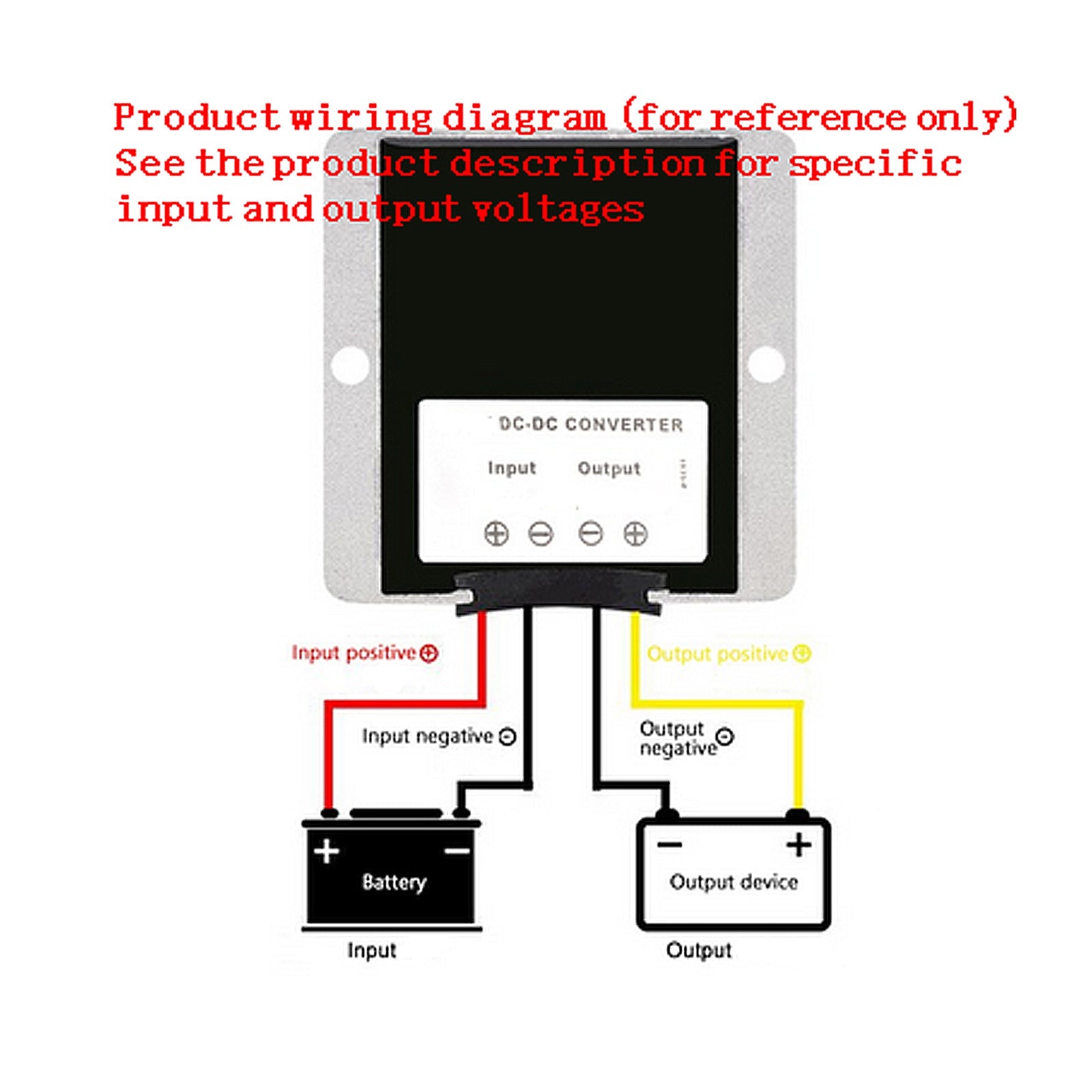

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. Please take with an average load, do not merge,if there are multiple output cables in the output port.
3. You need to pay attention to make the power module cool,if output is up to the maximum current value.
4. In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
