Description
Features:

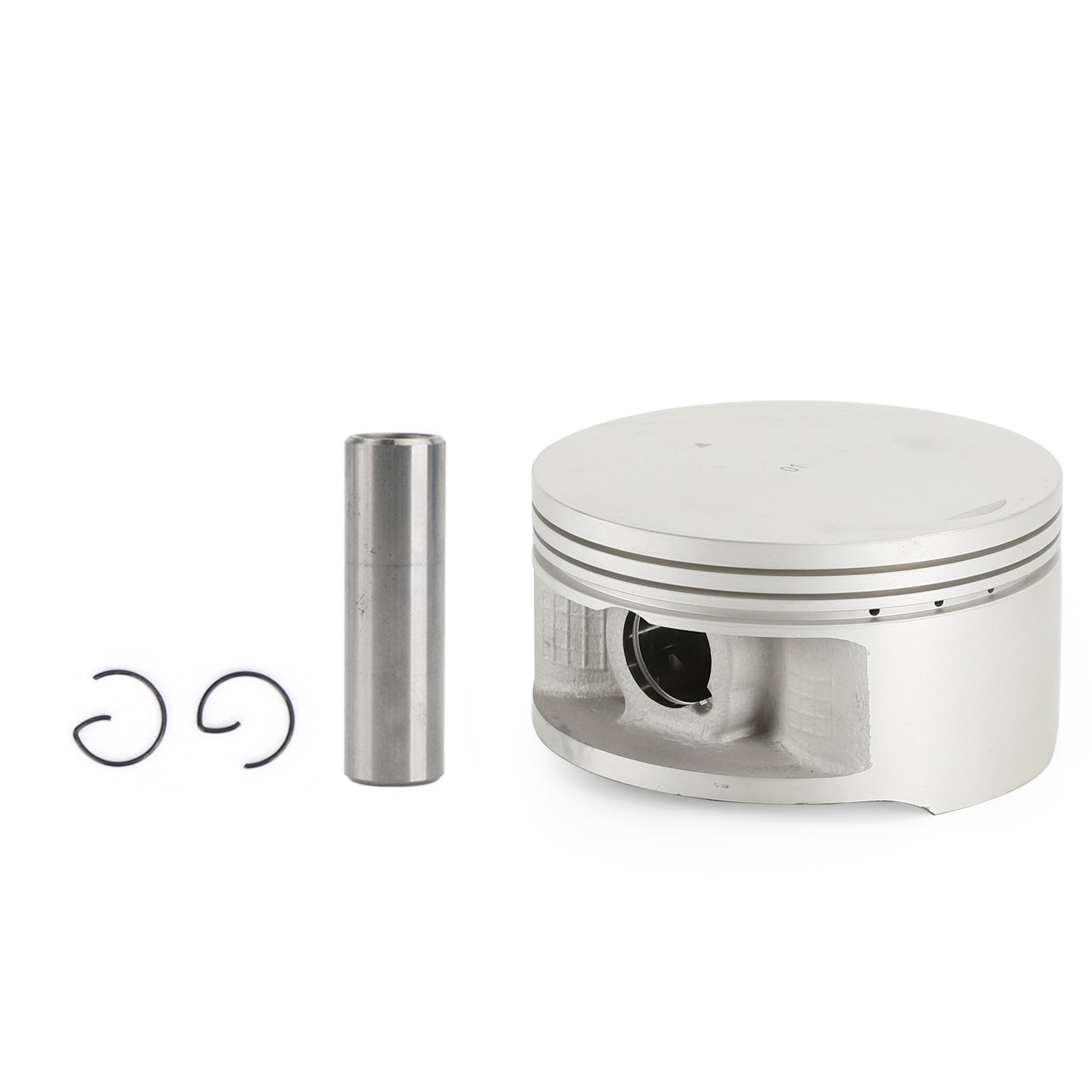

Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenum Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for big bore size - 102.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics:
Condition: 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Surface Finish: Forged
Actual Displacement: 686cc
Bore Type: Big Bore
Bore Size: 102.00 mm
Stroke: 84.00 mm
Replaces Part Number:
Cylinder: 5KM-11310-00-00, 3YF-11310-01-00
Piston: 3YF-11631-00-X0
Cylinder Base Gasket: 3YF-11351-00-00
Cylinder Head Gasket: 3YF-11181-00-00
Ring Set: 2C6-11603-00-00
Pin, piston: 3YF-11633-01-00
Circlips, piston: 93450-24028
Fitments:
For Yamaha Raptor 660R 2001-2005
For Yamaha Grizzly 660 2002-2008
For Yamaha Rhino 660 2004-2007
Package Includes:

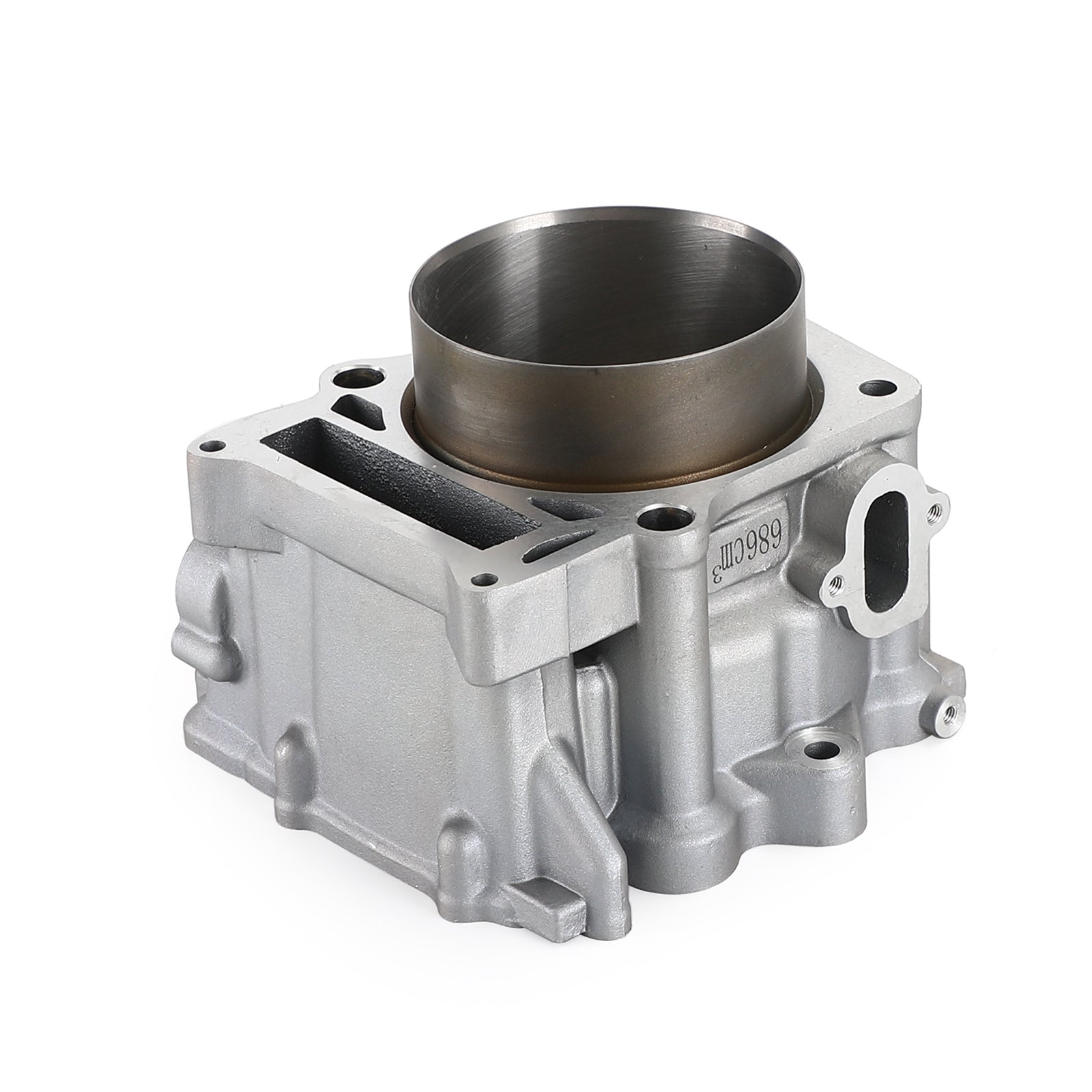

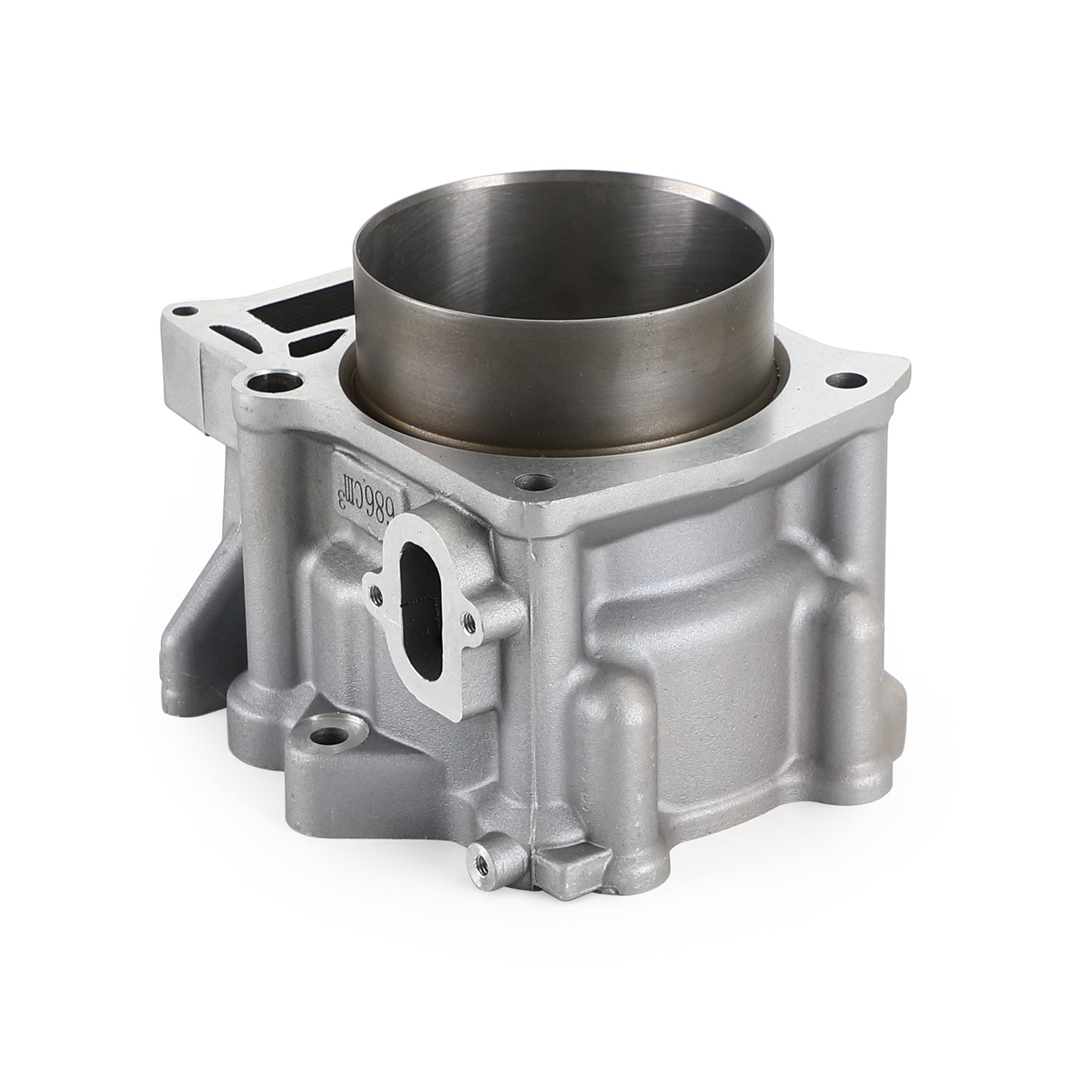

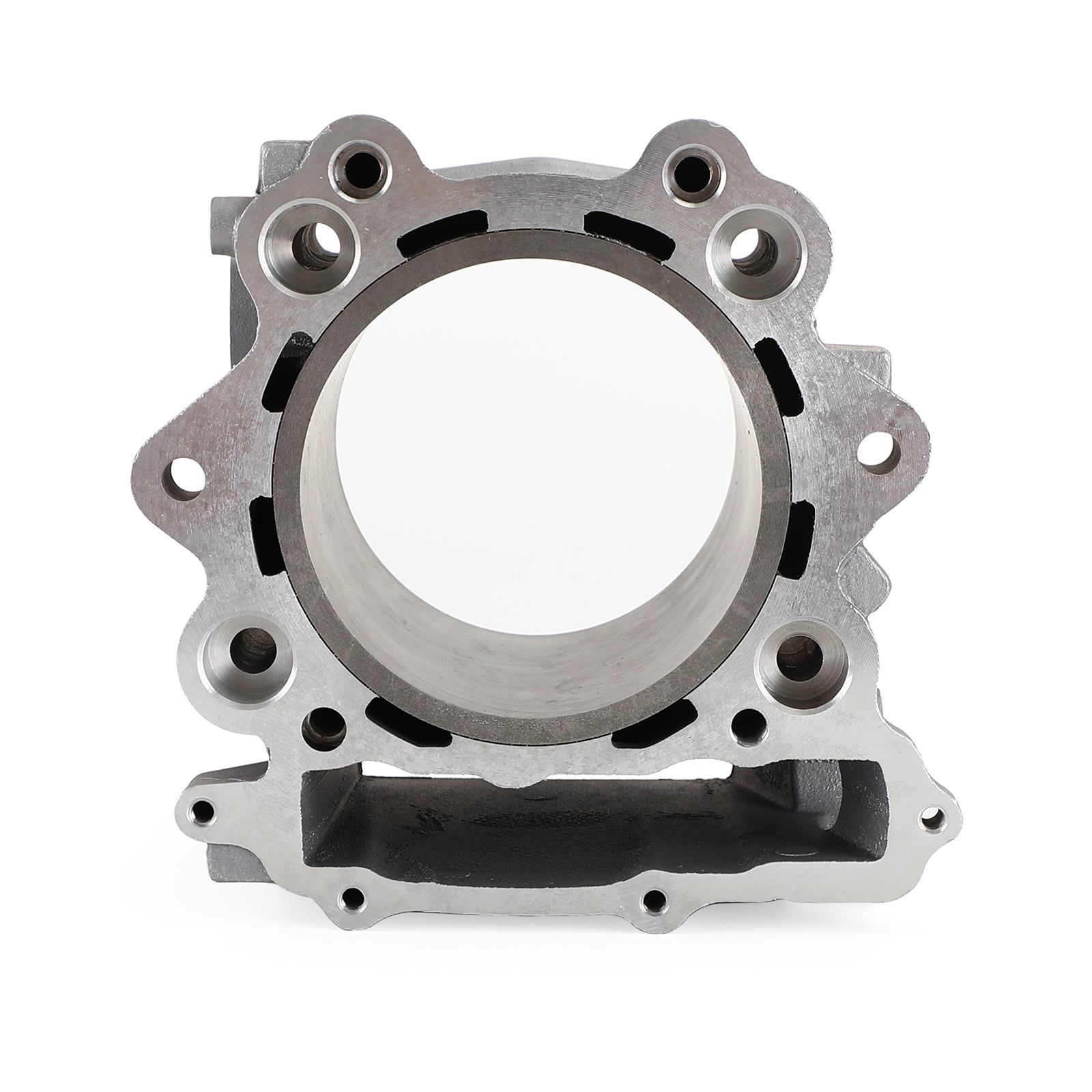

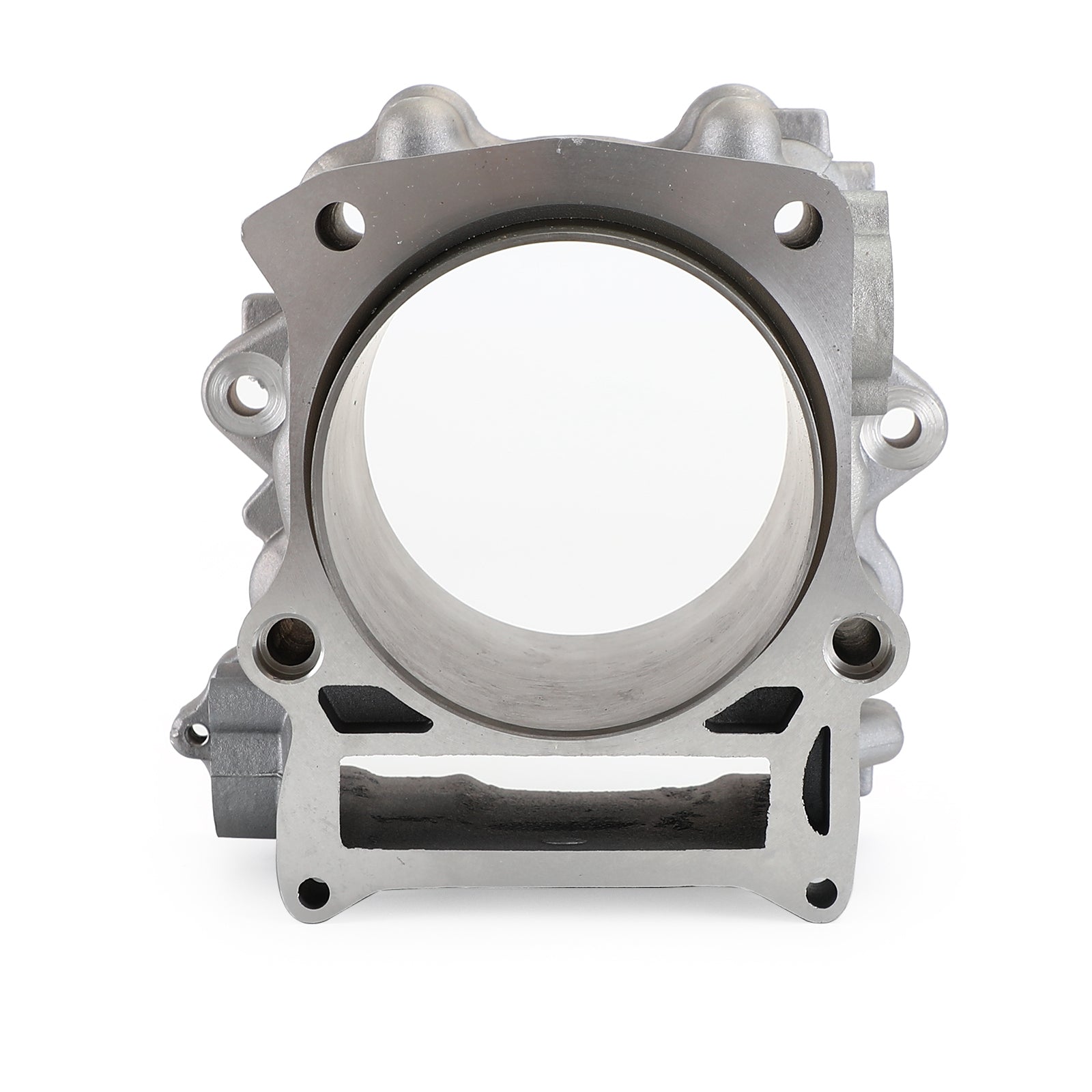

1 x Cylinder (Big Bore)
1 x Piston

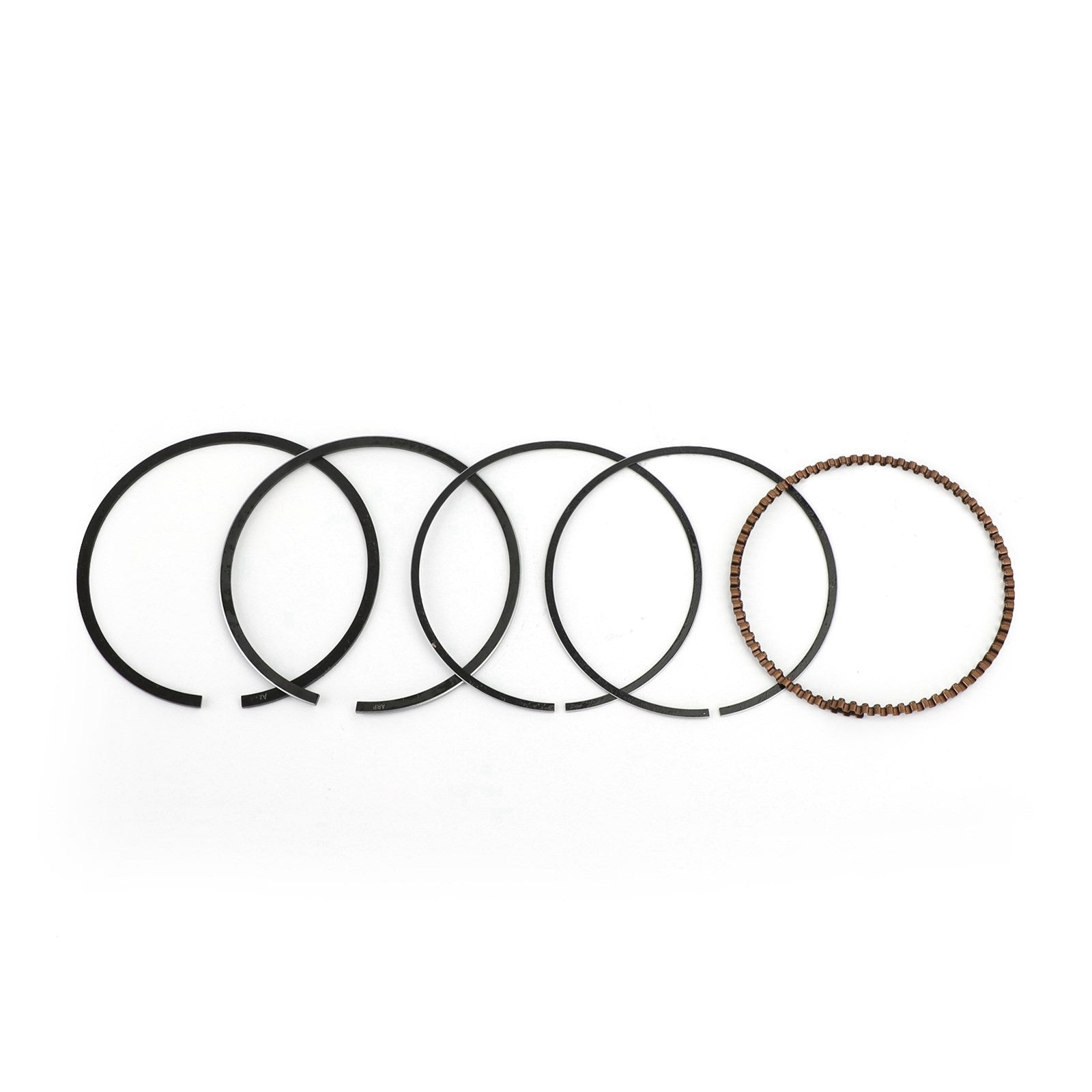

1 x Piston Ring Set
1 x Wrist pin
1 x Circlip(2)
1 x Cylinder Base Gasket
1 x Cylinder Head Gasket
Note:
Ring end gaps are checked prior to shipment for proper sizing.
