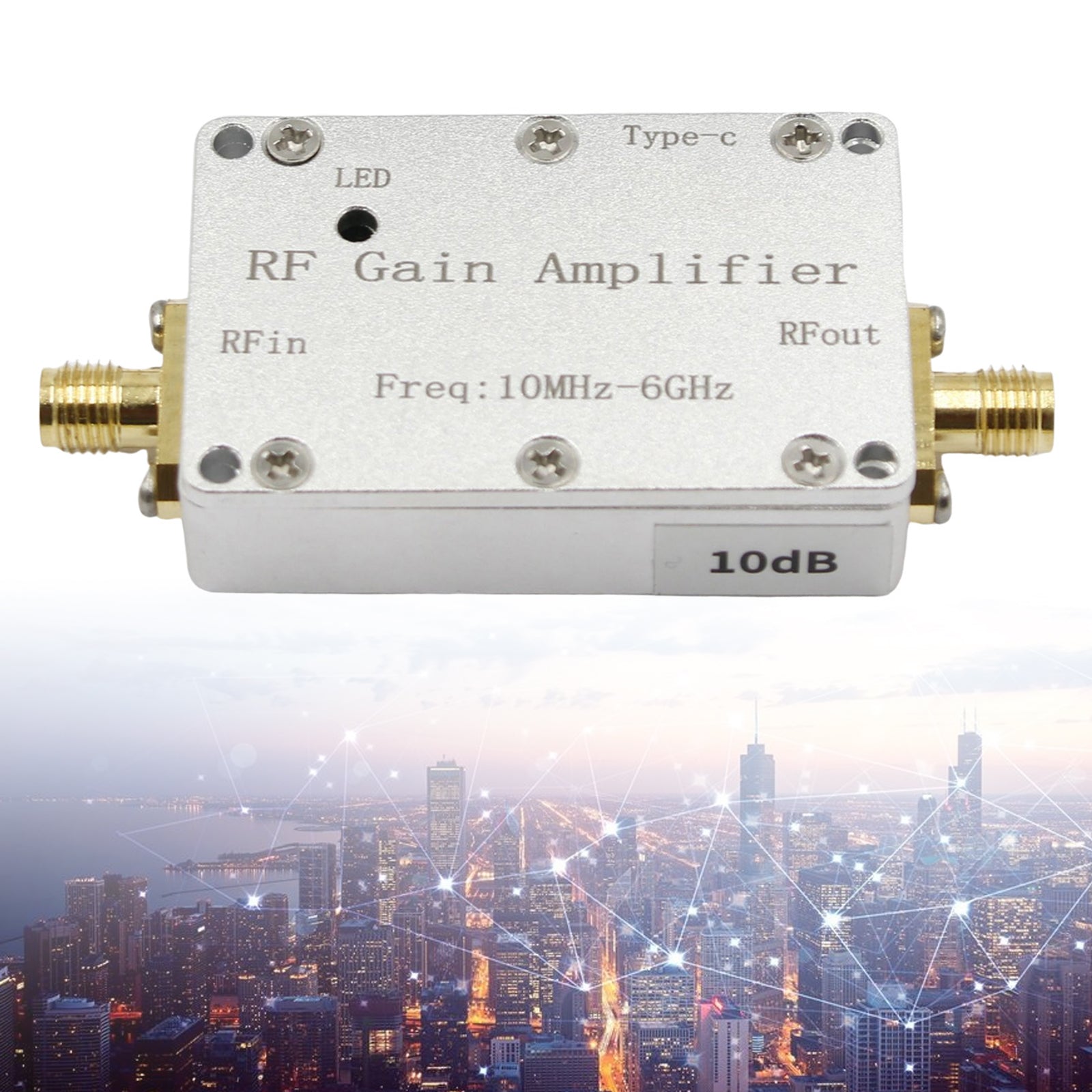

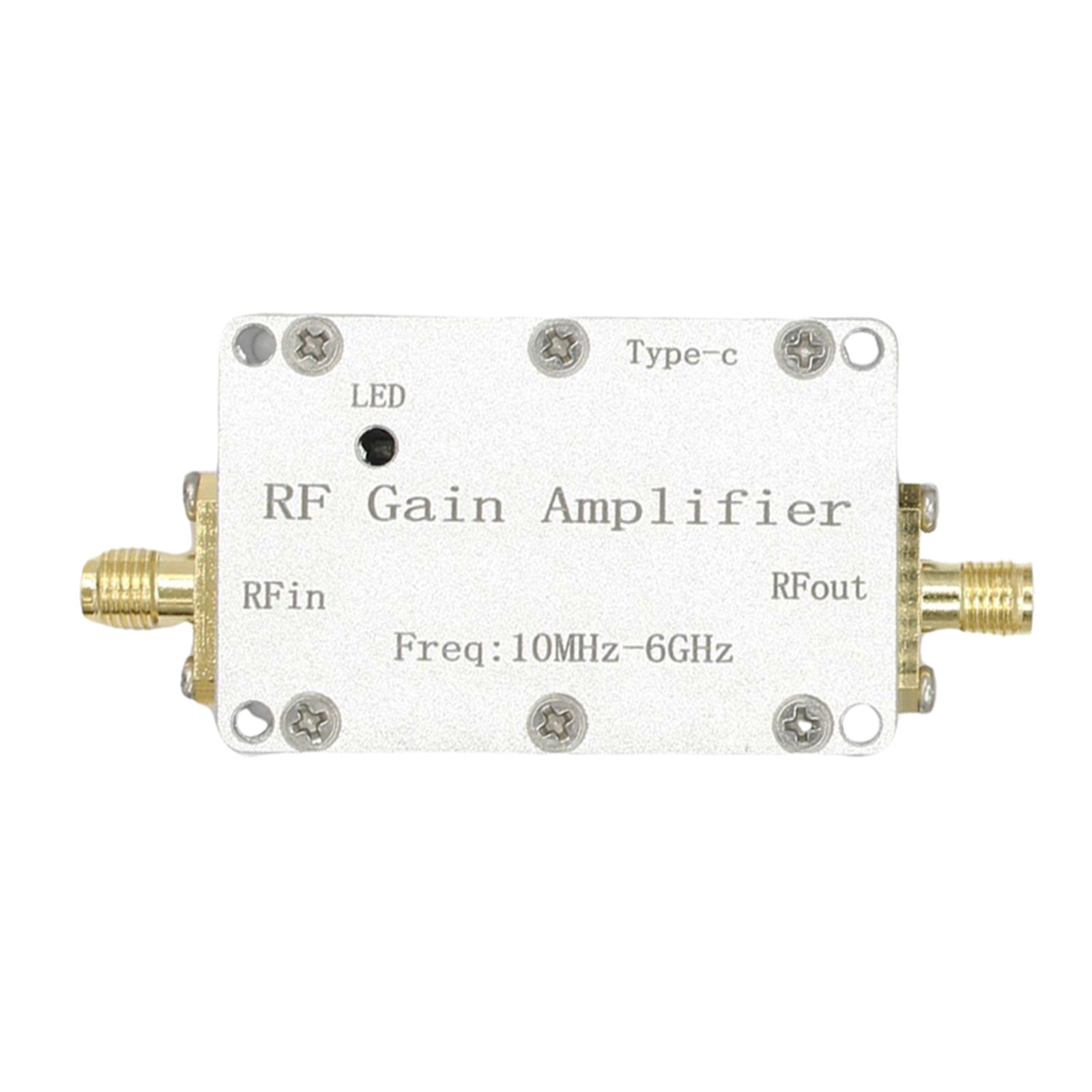

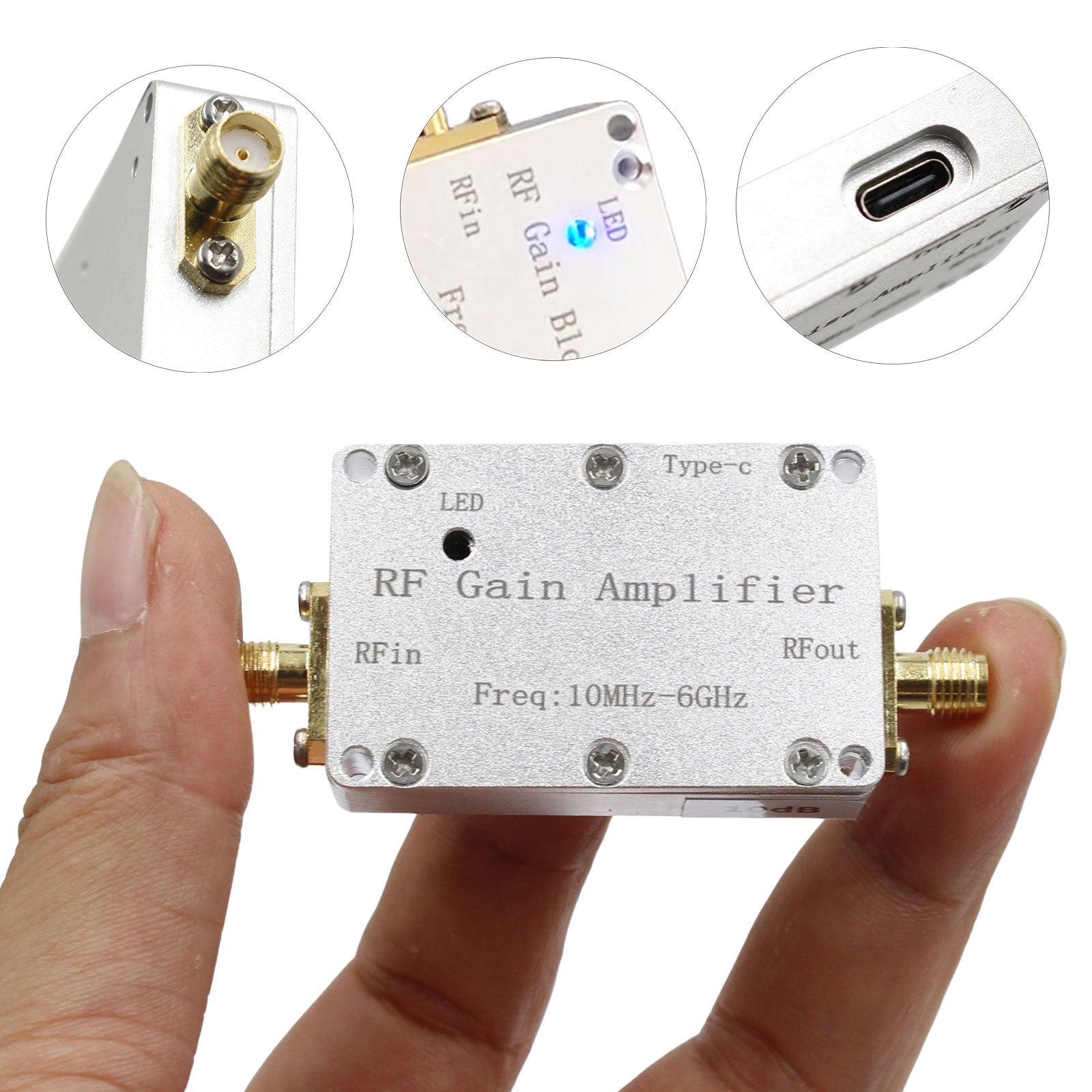

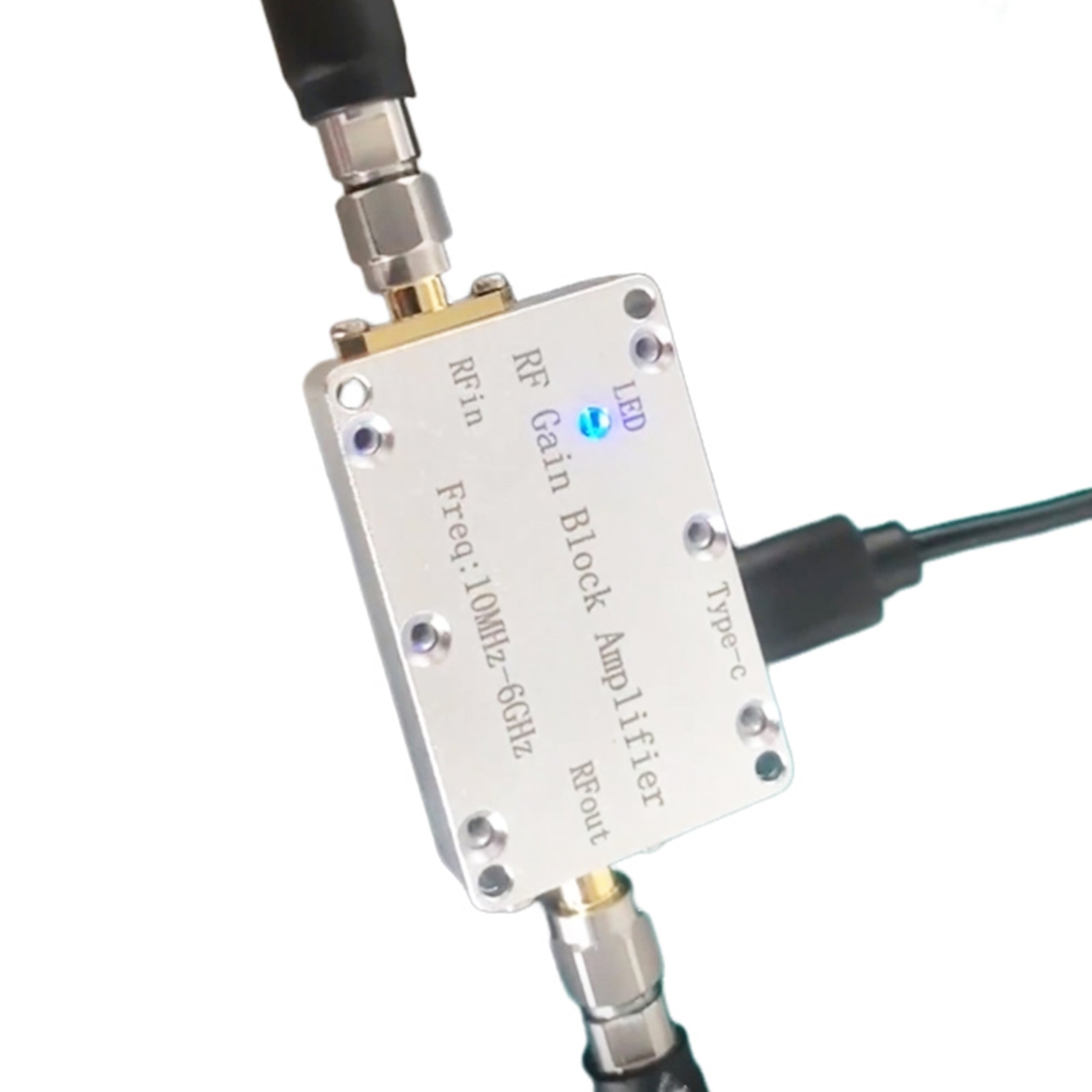

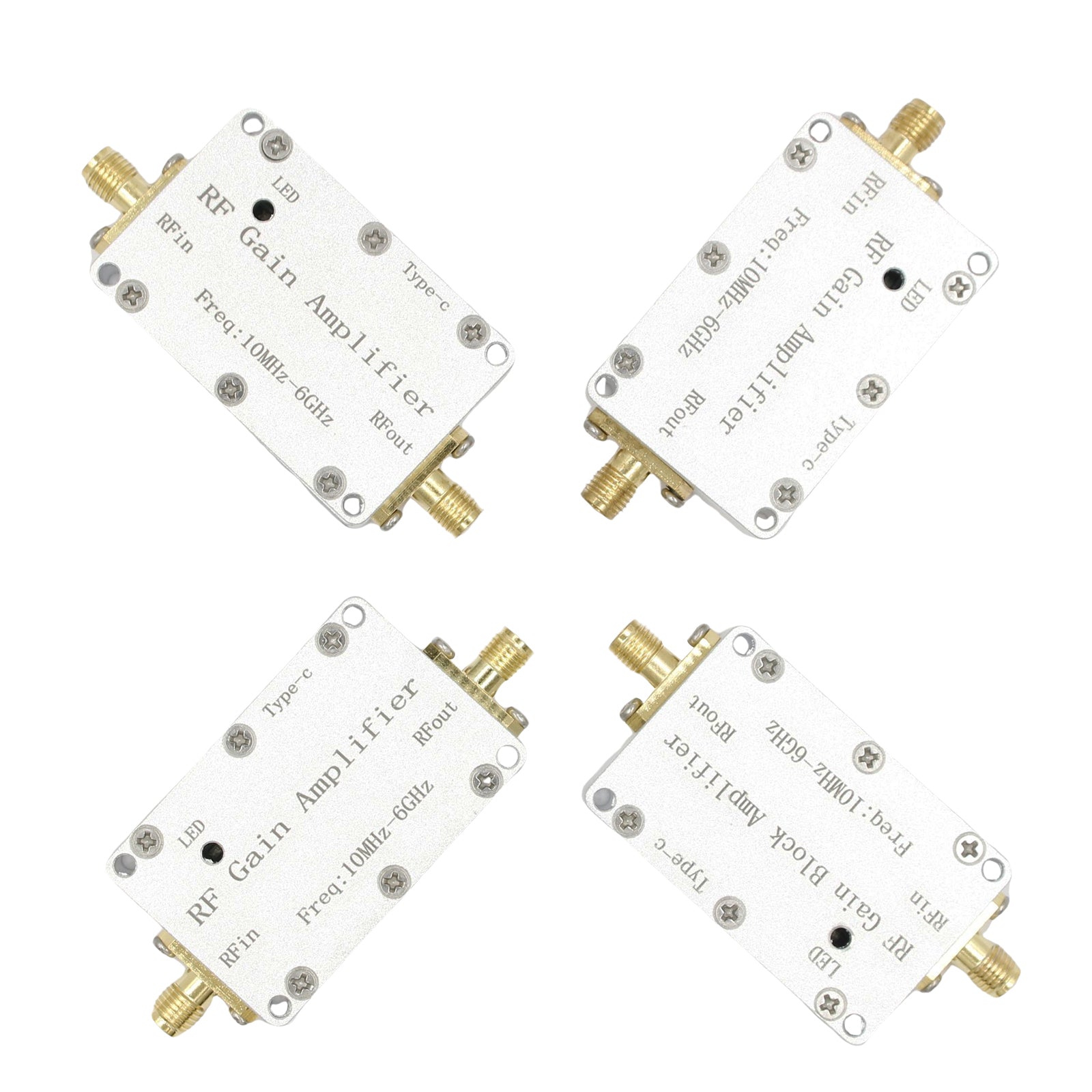

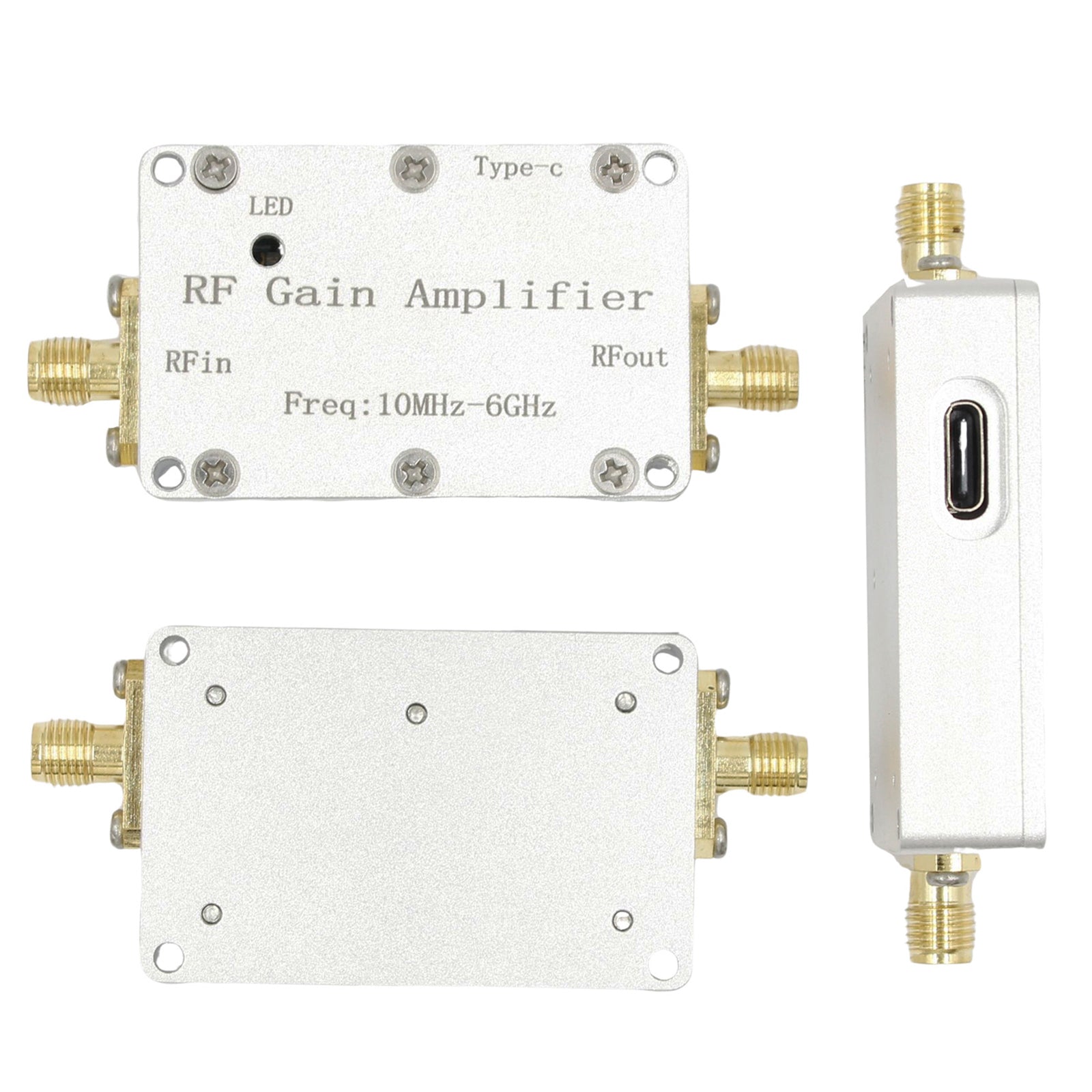

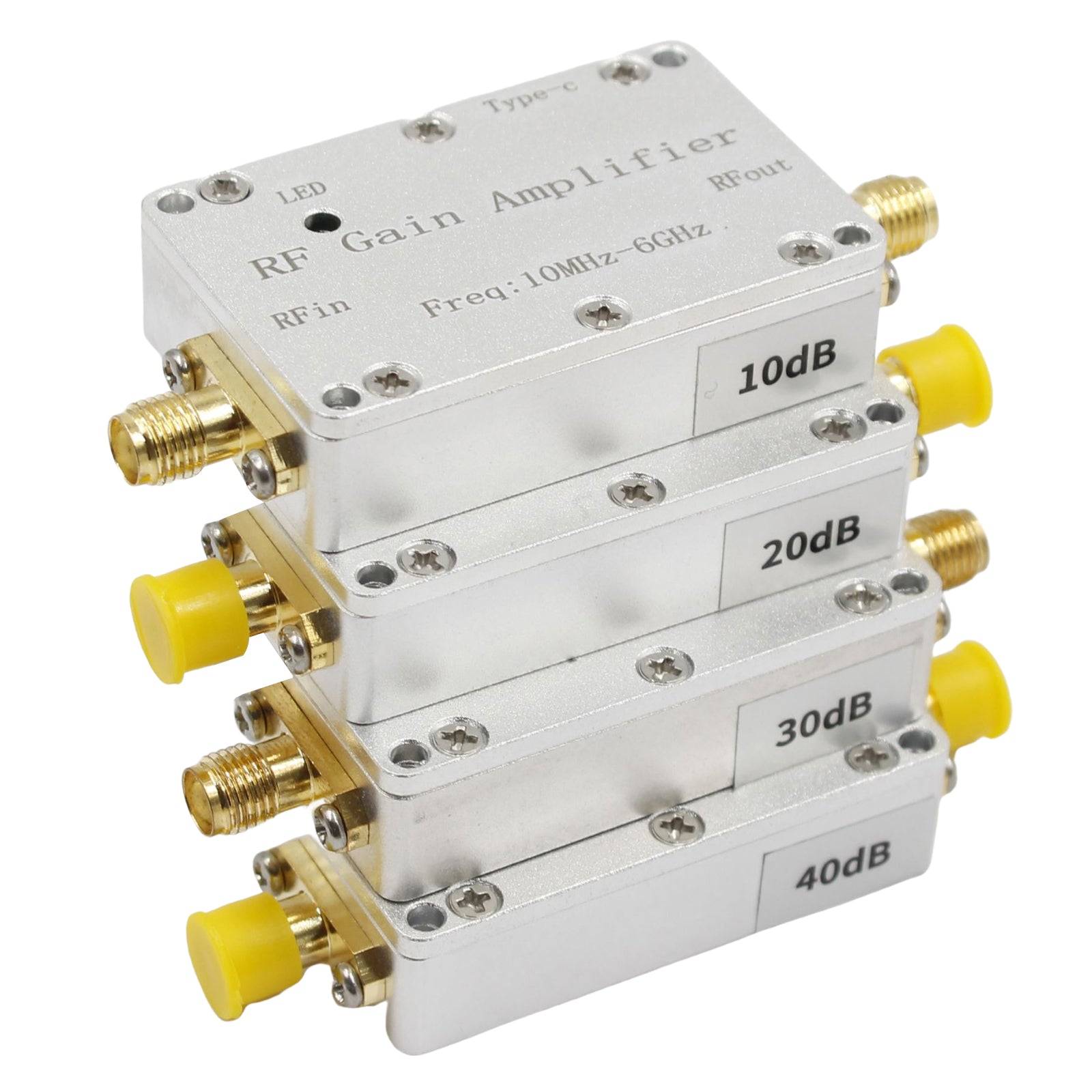

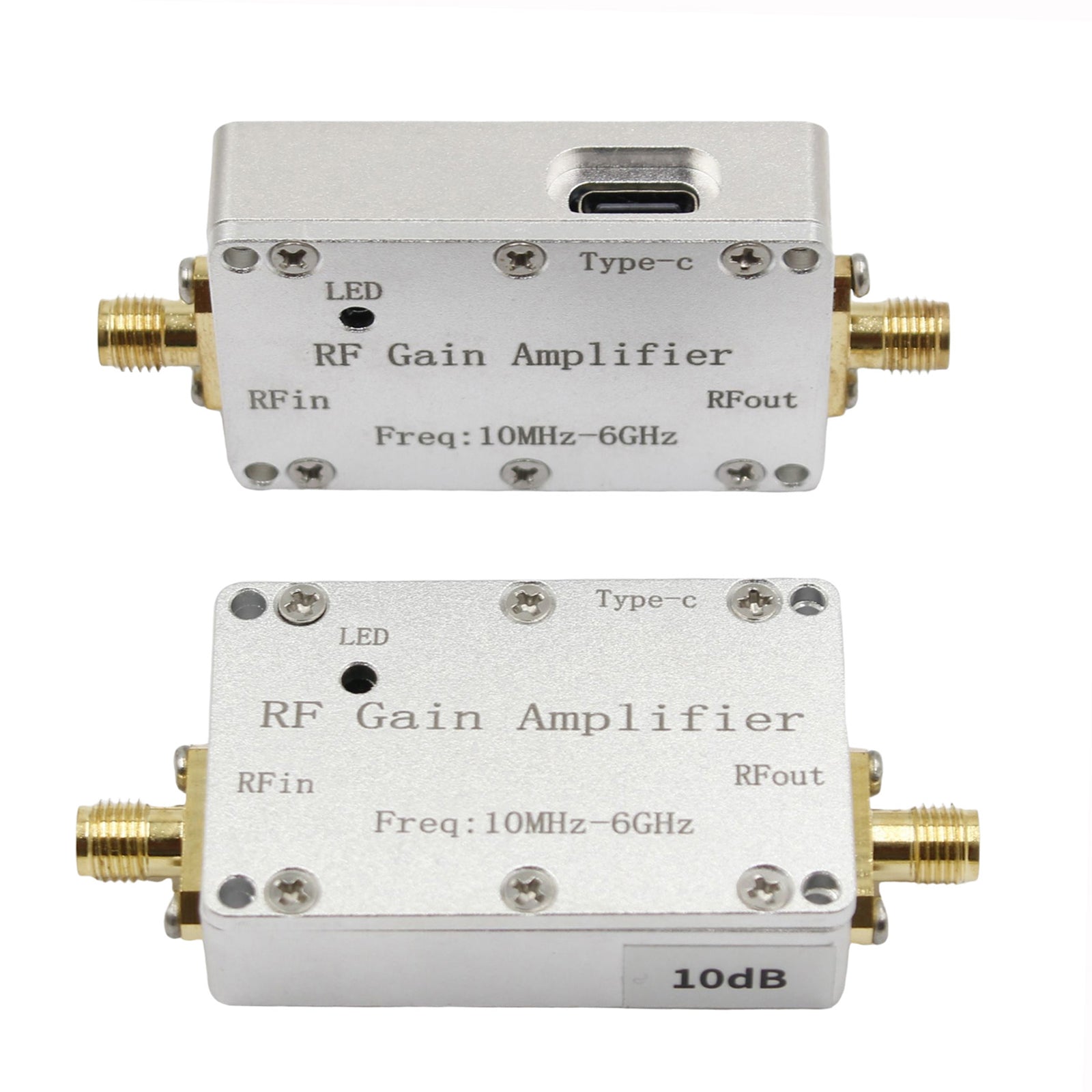

10M-6GHz RF amplifier 10dB 20dB 30dB 40dB high gain driver receiving amplifier
Description:

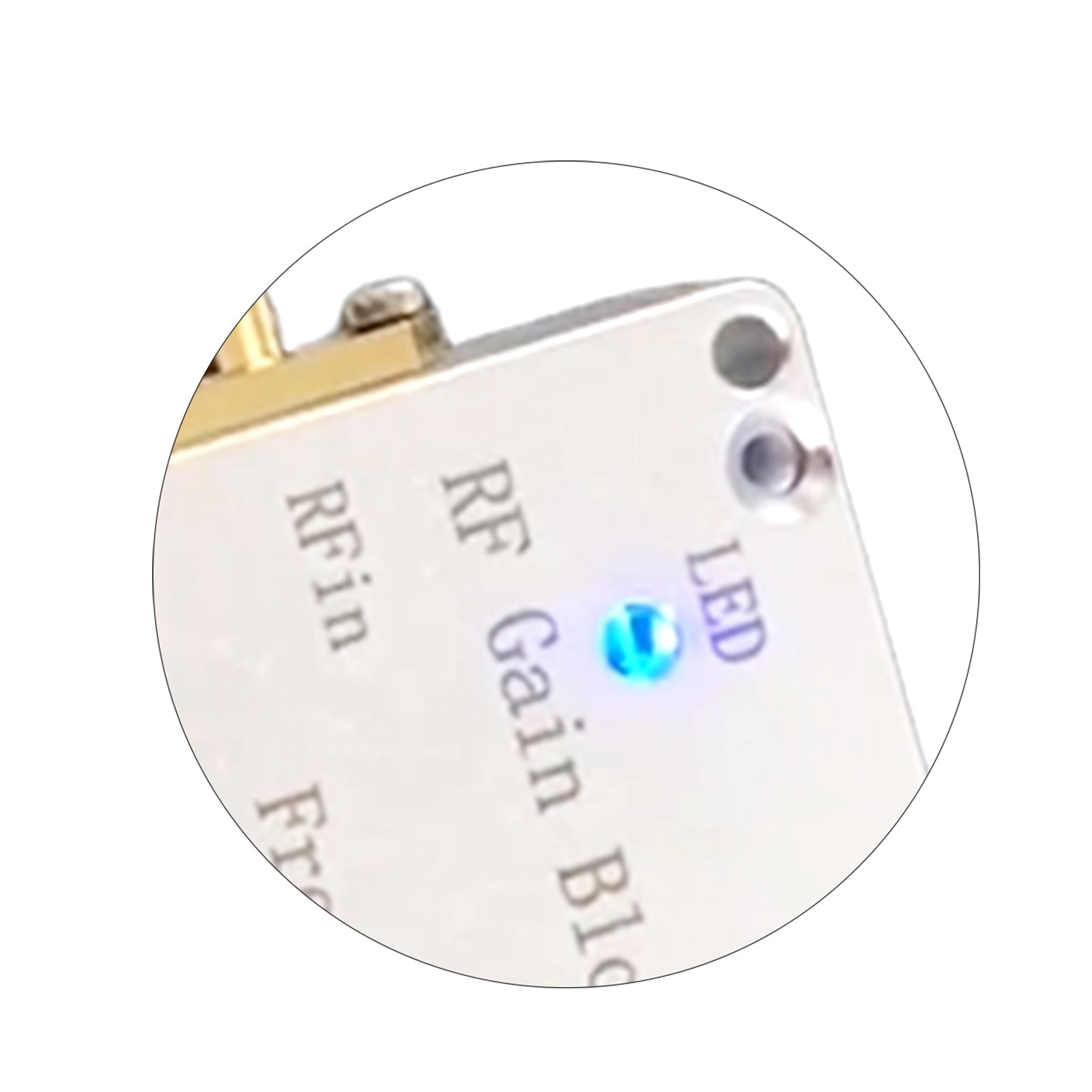

This amplifier module is used for signal gain promotion and small signal amplification in various radio transmitters and receivers. The module covers the 10M-6GHz0M-6GHz broadband frequency range, covers 433M, 1.2G, 1.5G, 2.4G, 5.8G and other typical application frequencies, and has a high flatness gain characteristic of 10dB 20dB 30dB 40dB. It is used in transmitter signal gain promotion and receiver systems. The module uses a Type-c interface +5V power supply and has a power working indicator light.
Application scenario:
1. Beidou/GPS receiver
2. Receiver system (FM radio reception, radar reception, etc.)
3. Electromagnetic compatibility receiving system
4. Software Radio Receive
5. Intermediate frequency signal amplification

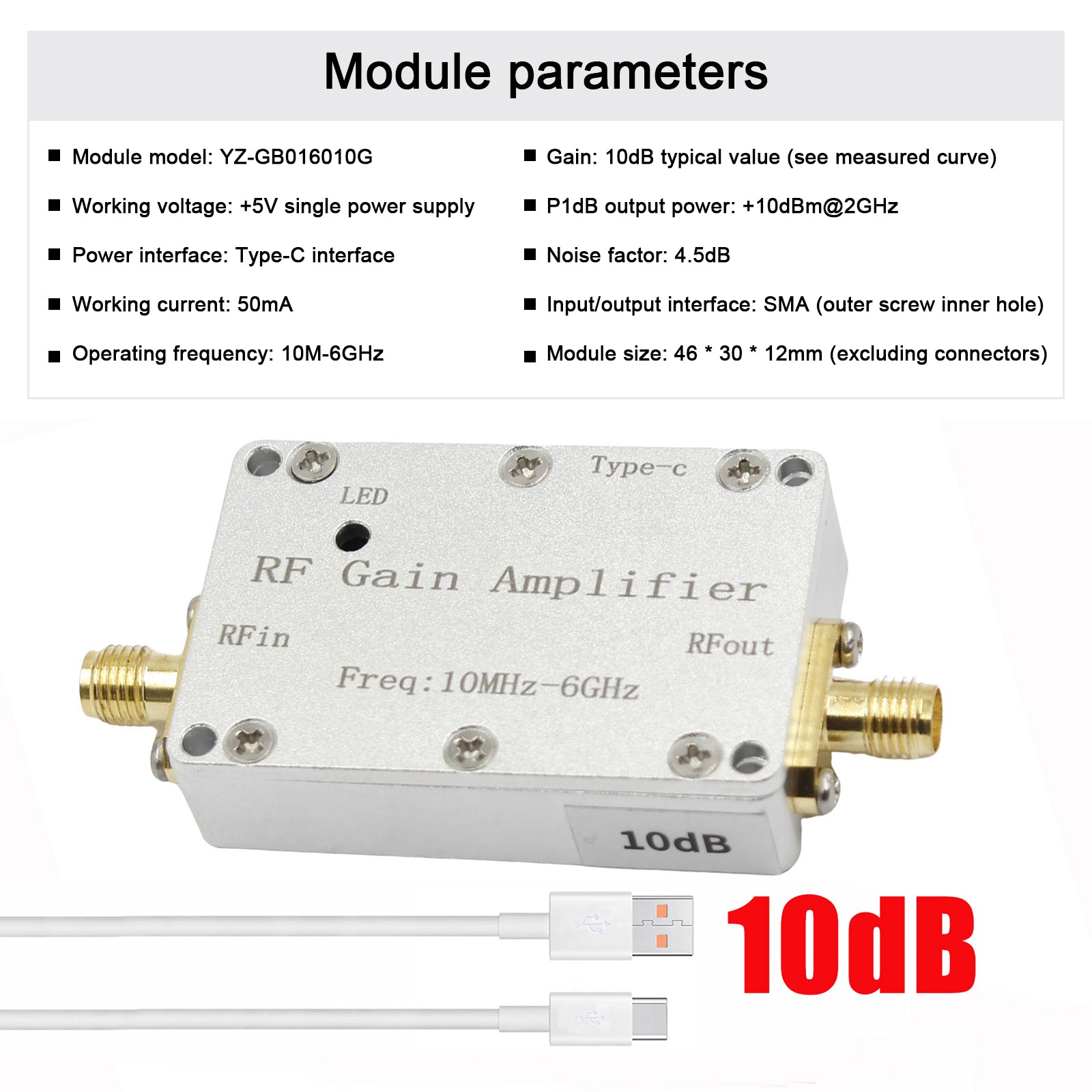

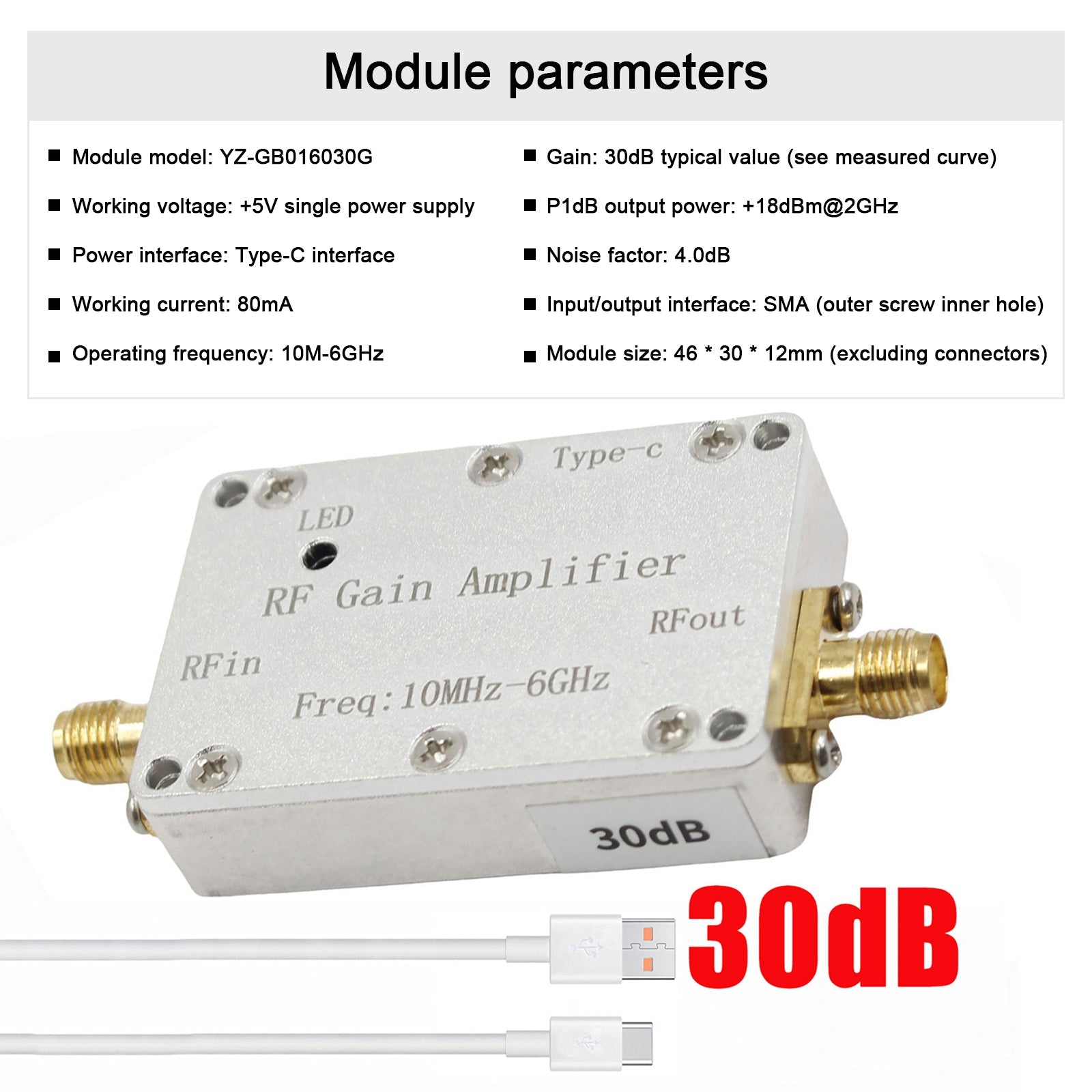

Specification:
Working voltage: +5V single power supply;

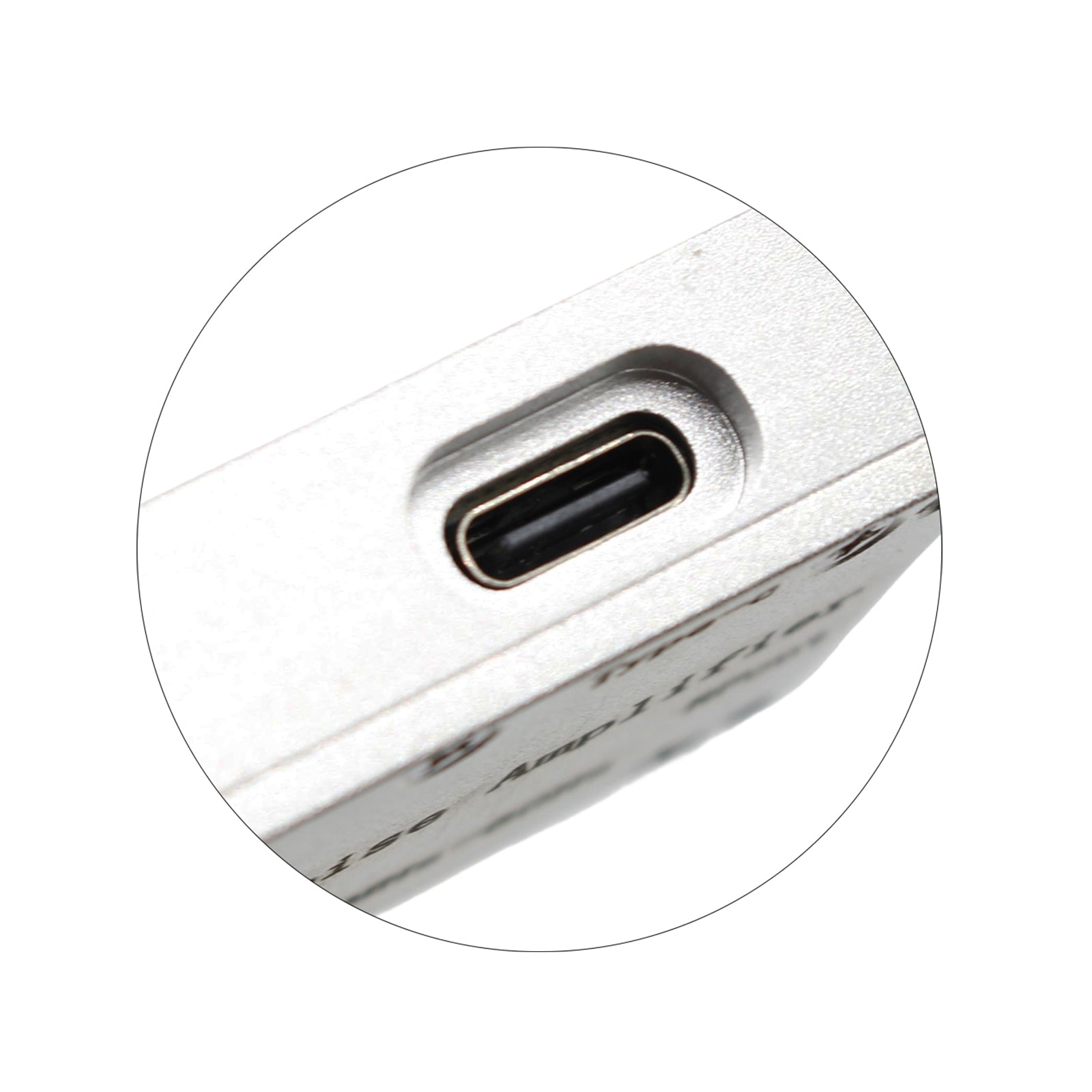

Power interface: Type-c interface;

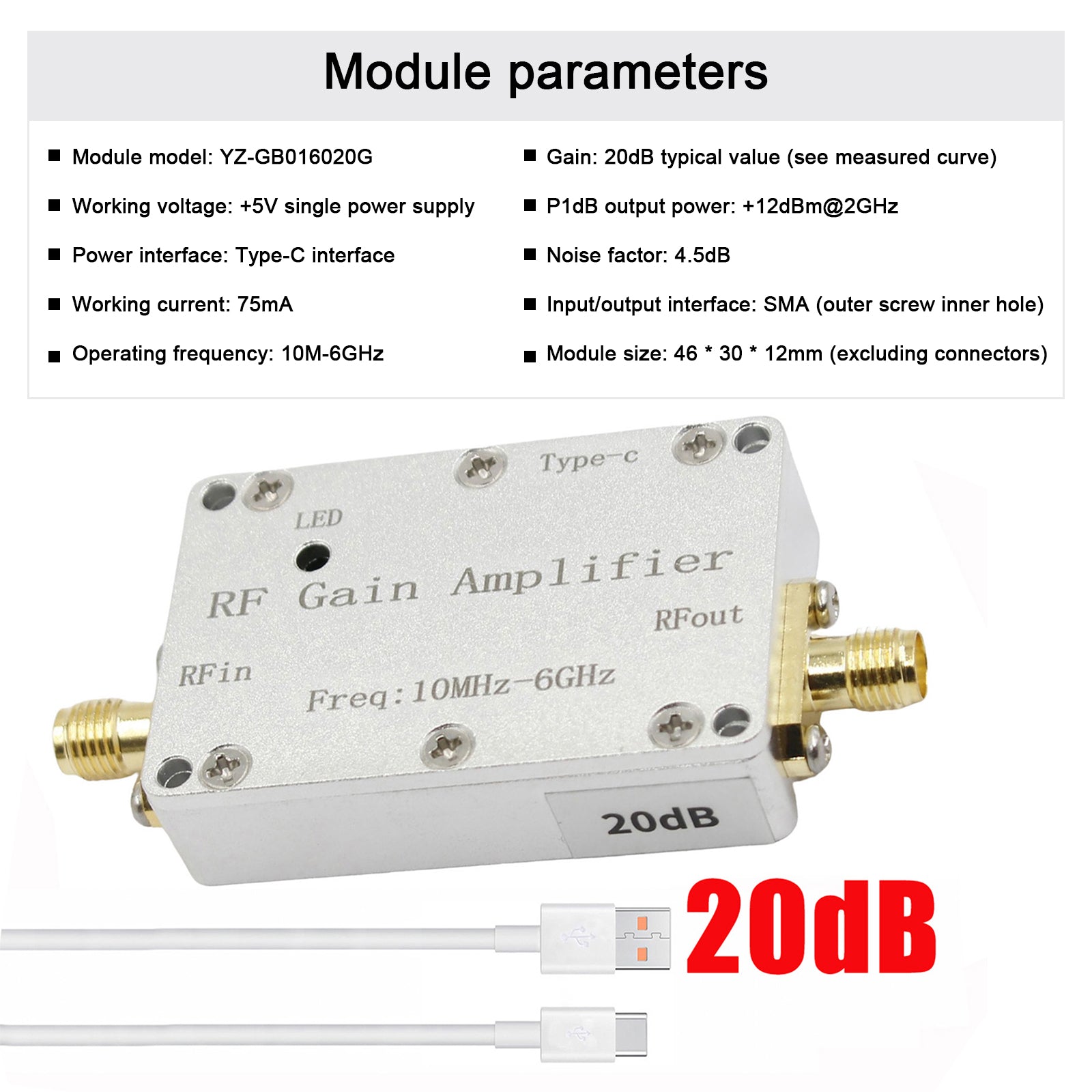

Working current: 10dB-50mA; 20dB-75mA; 30dB-80mA; 40dB-80mA
Working frequency: 10M-6GHz;

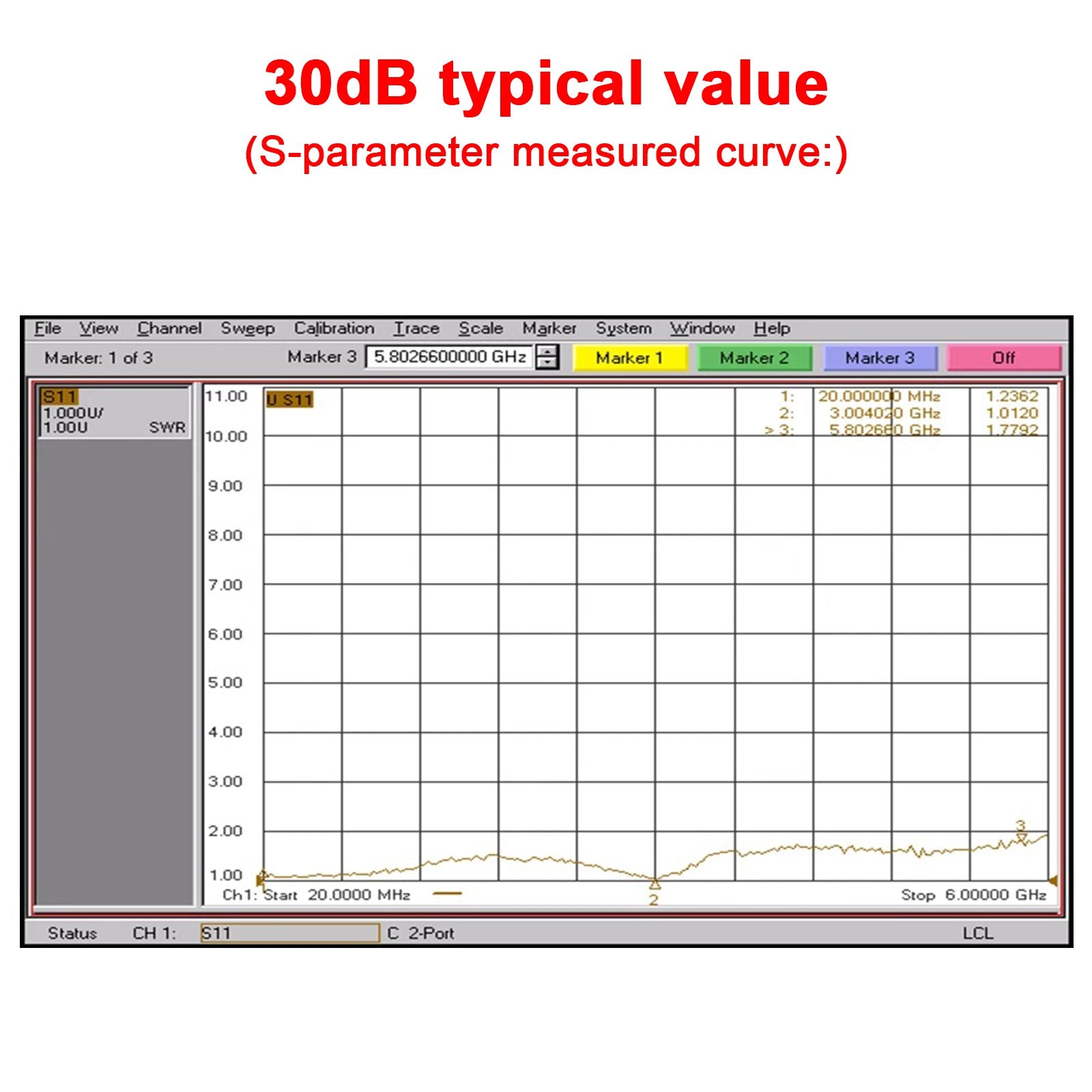

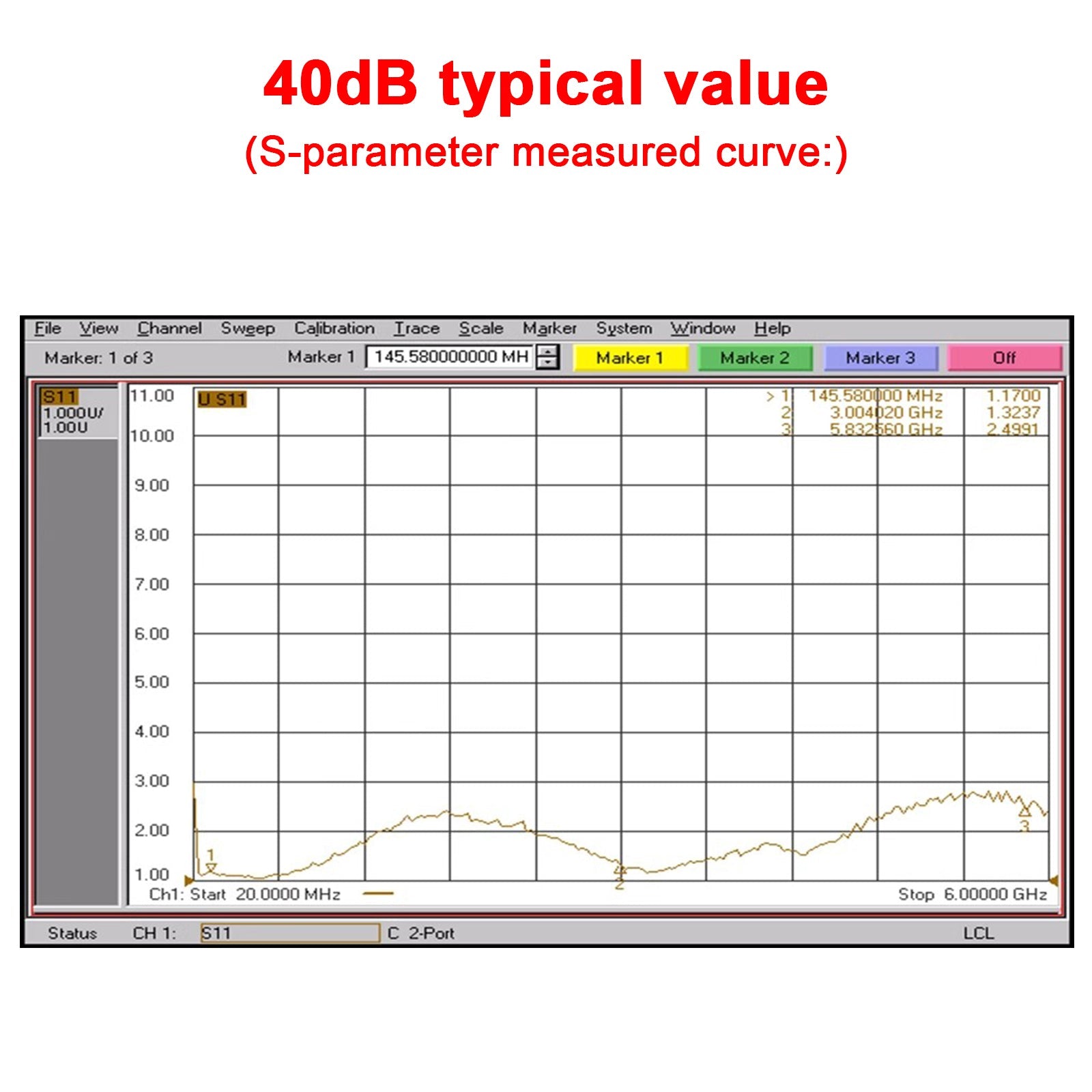

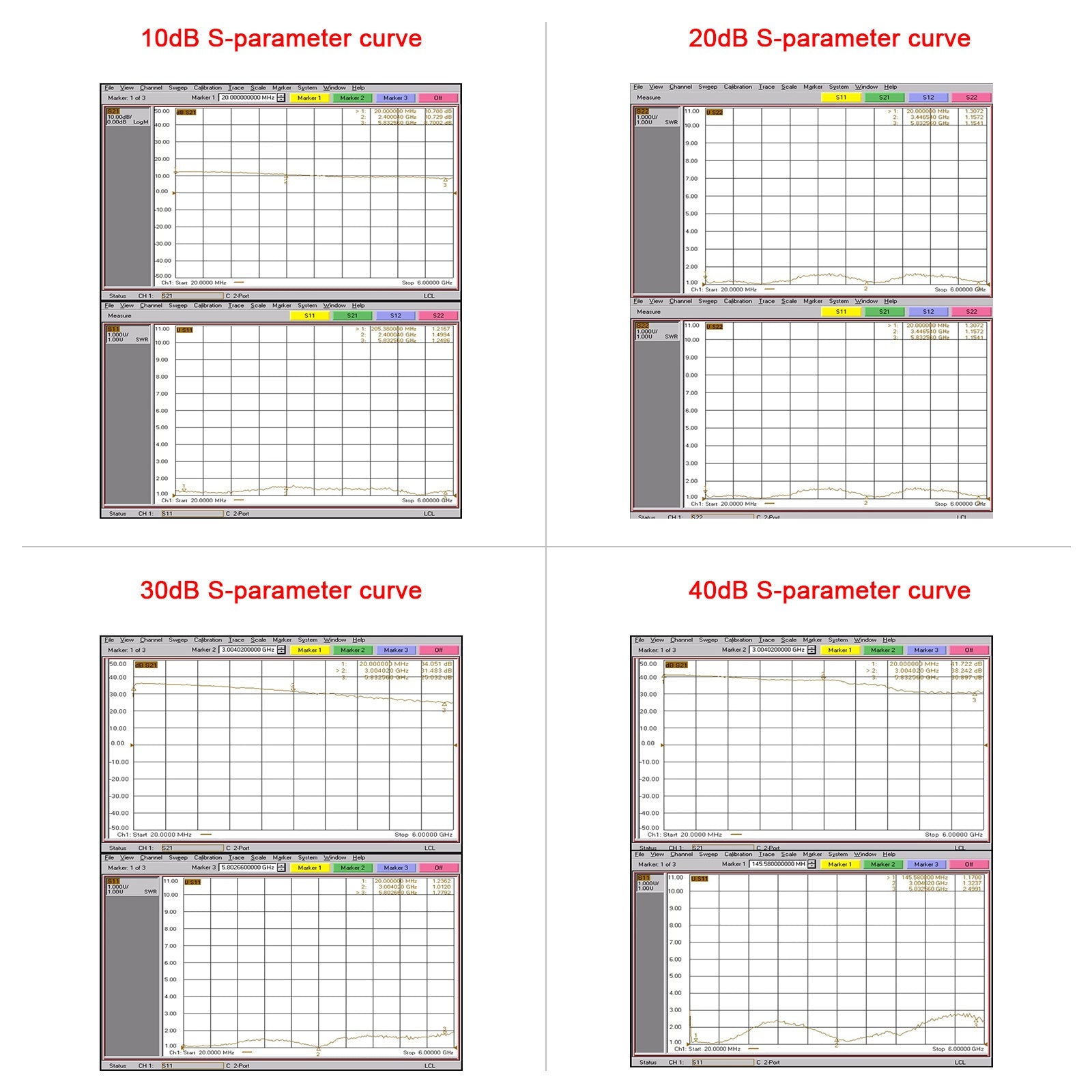

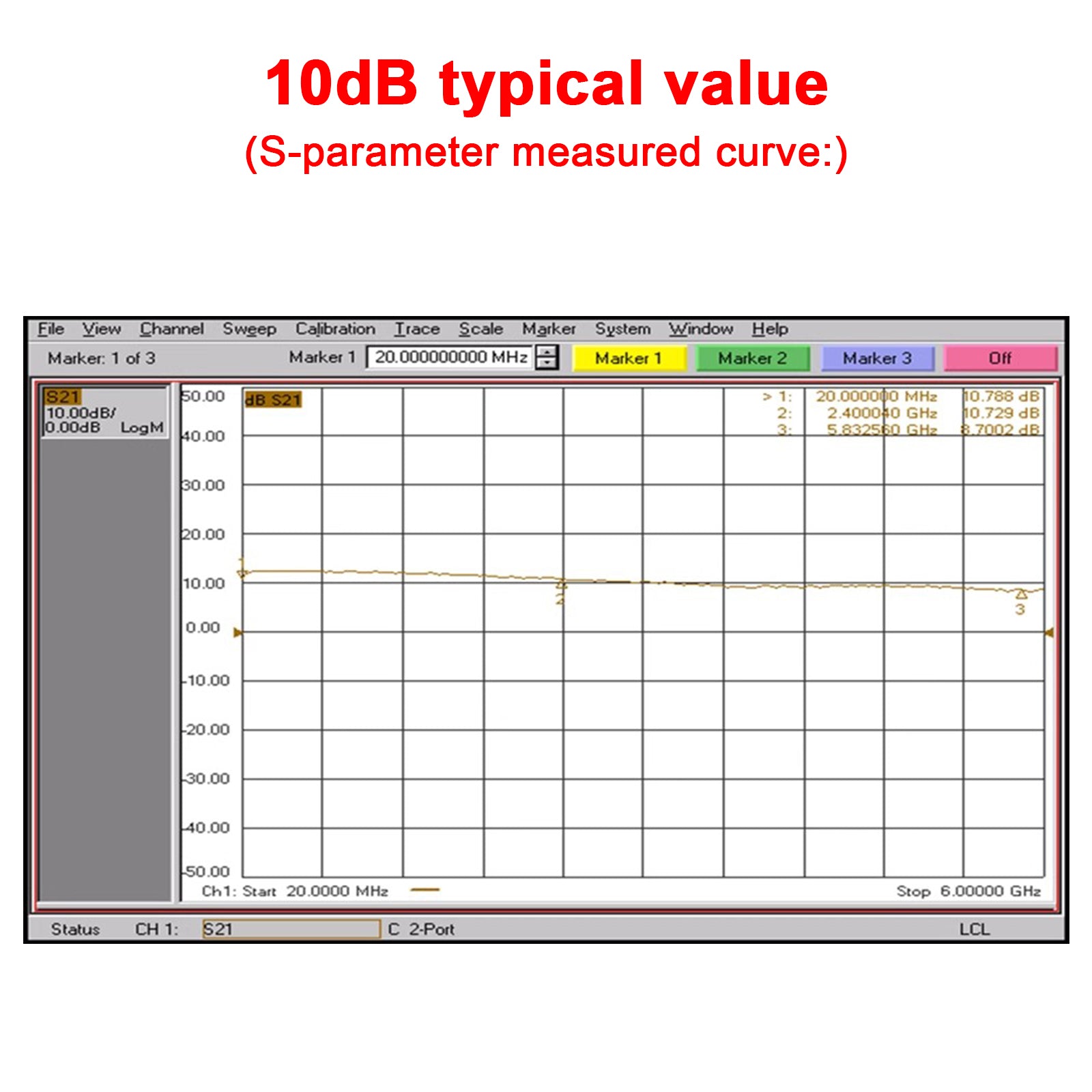

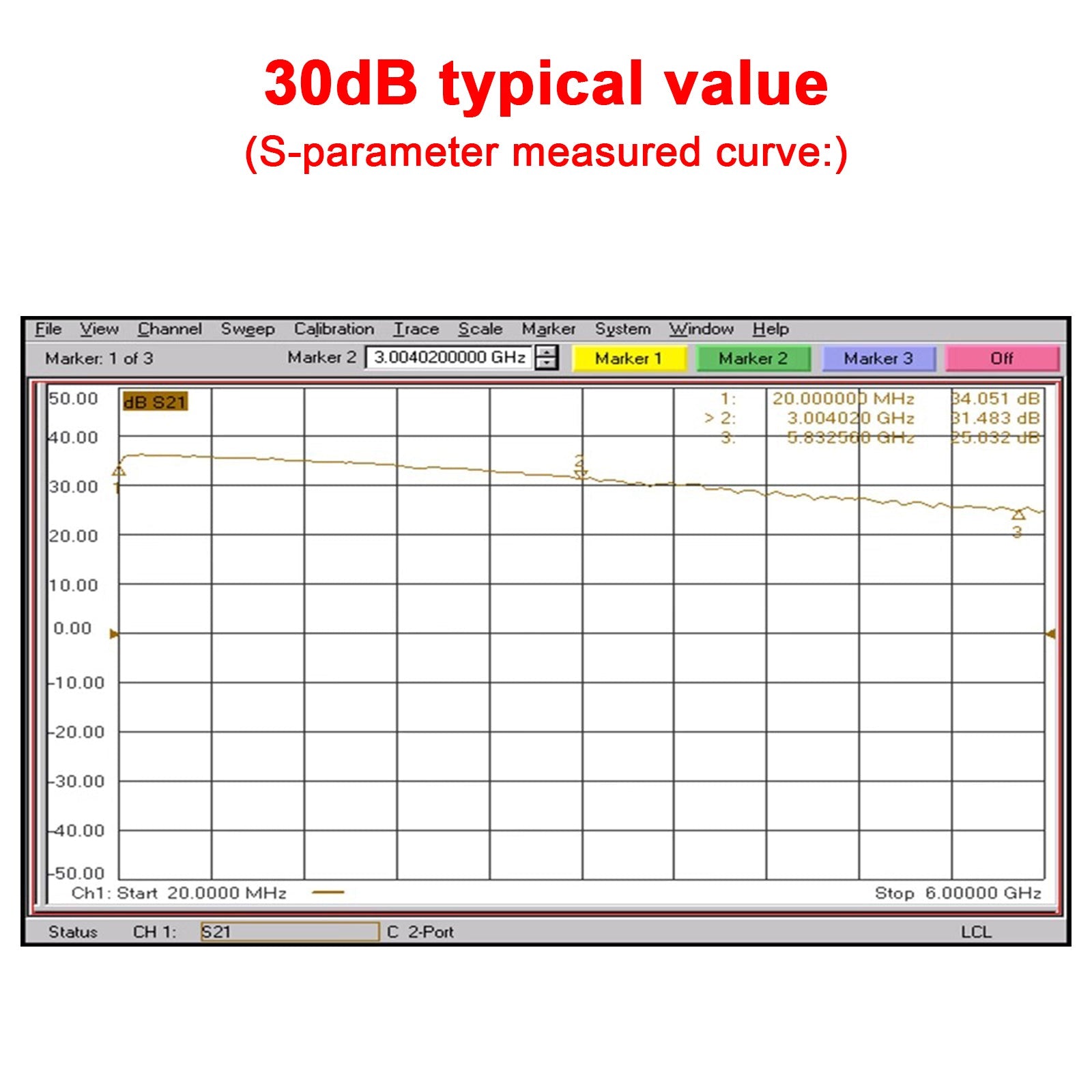

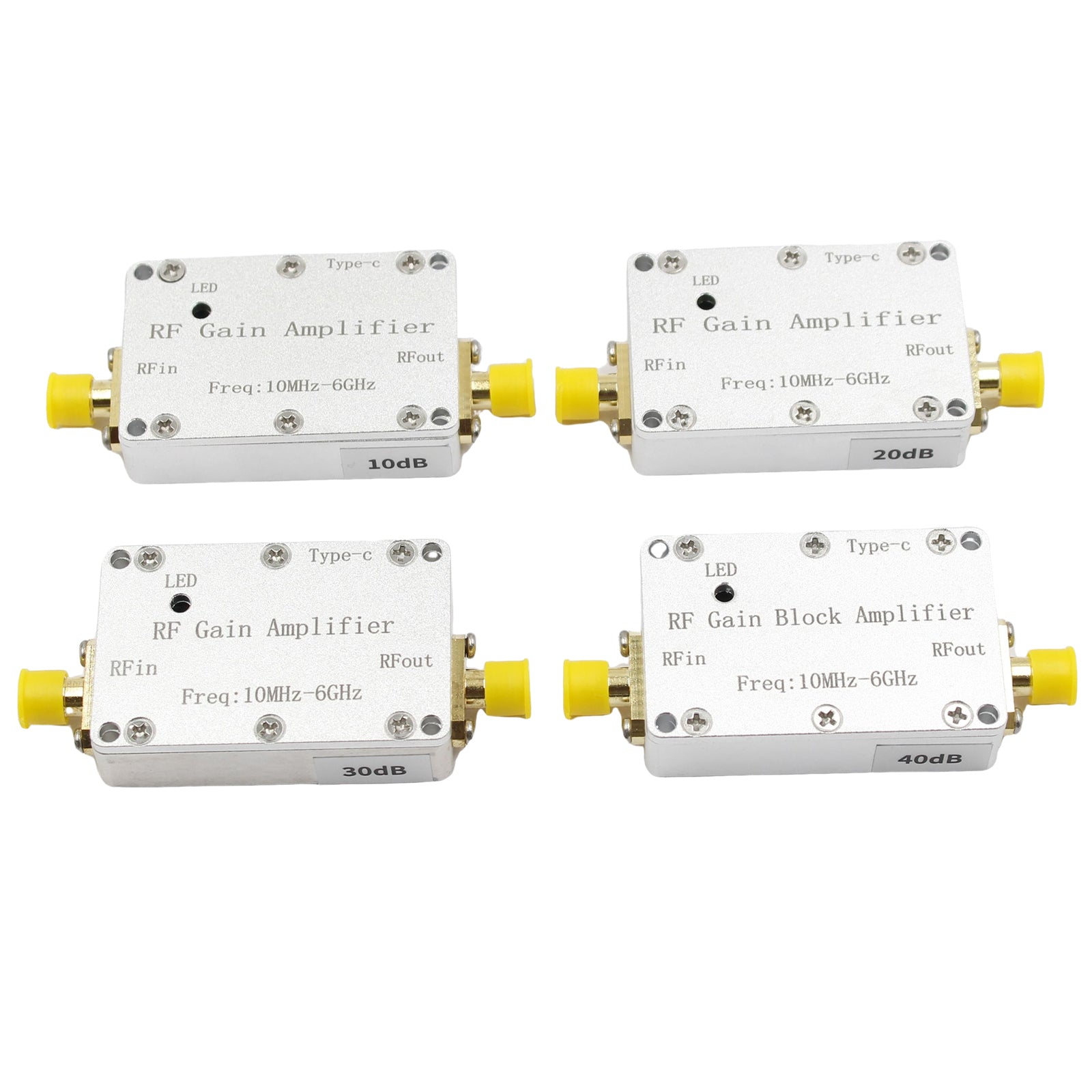

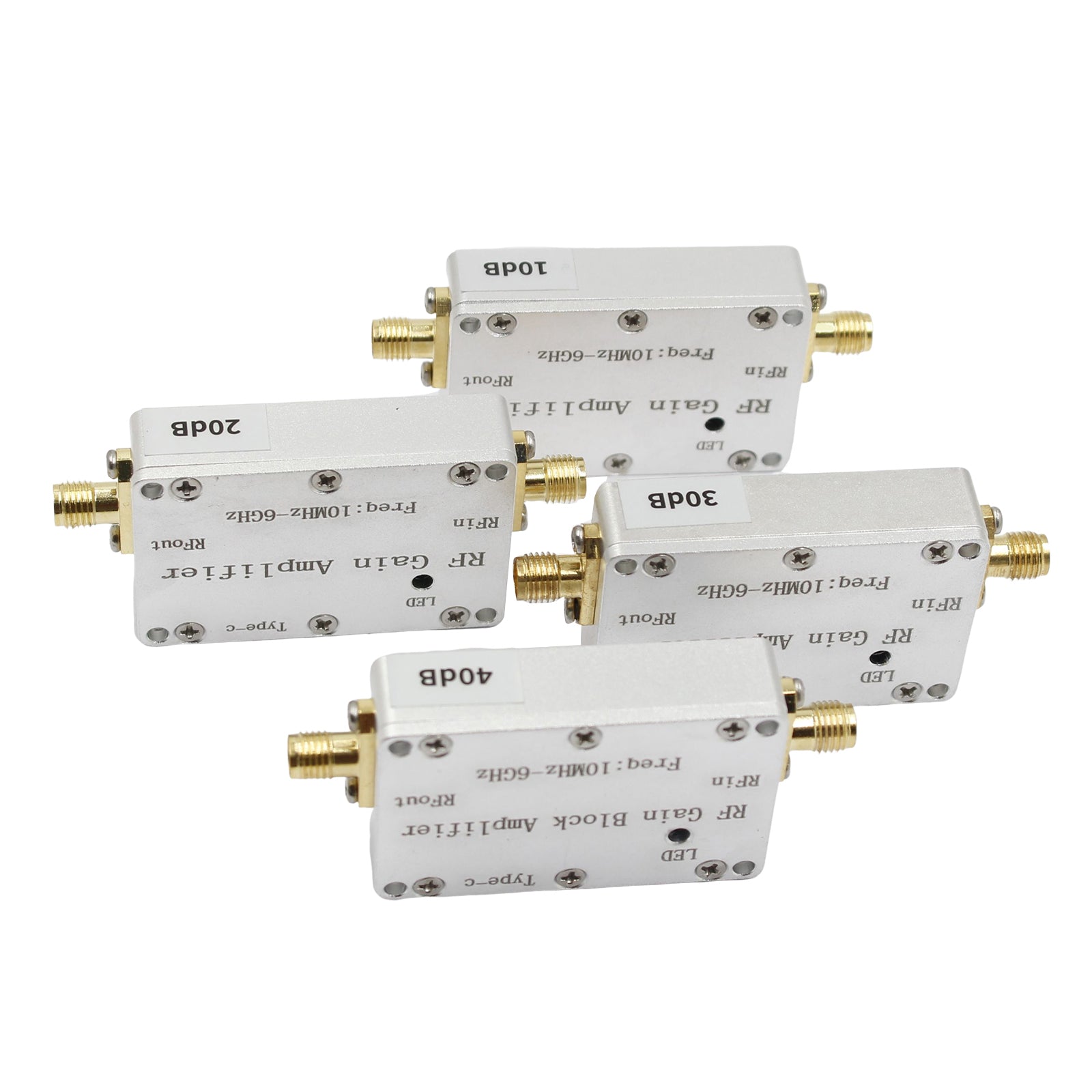

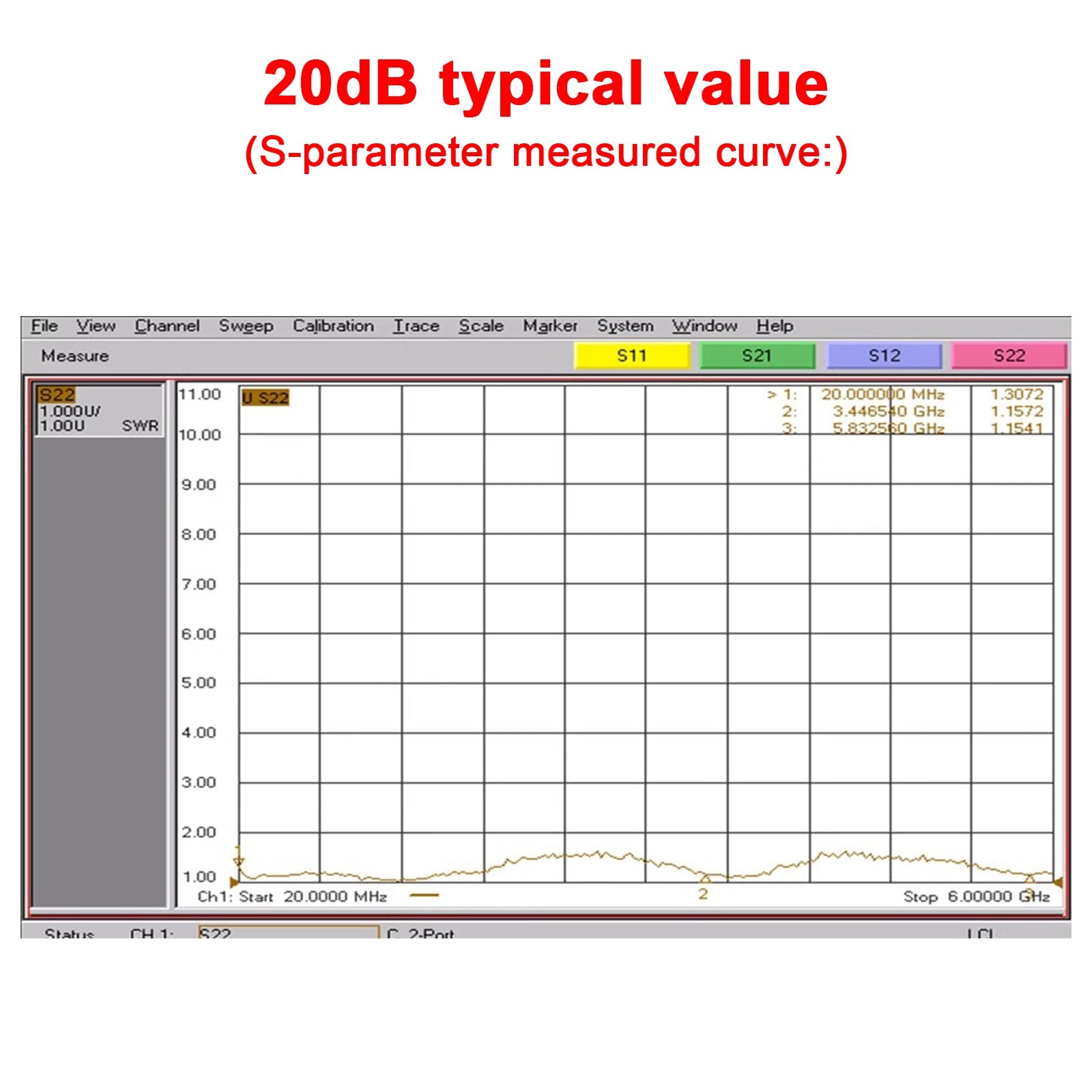

Gain: 10DB-20DB-30DB-40DB (refer to the measured curve for different frequencies);
P1dB output power: +10dBm@2GHz; +12dBm@2GHz; +18dBm@2GHz; +18dBm@2GHz;
Noise coefficient: 4.5dB;

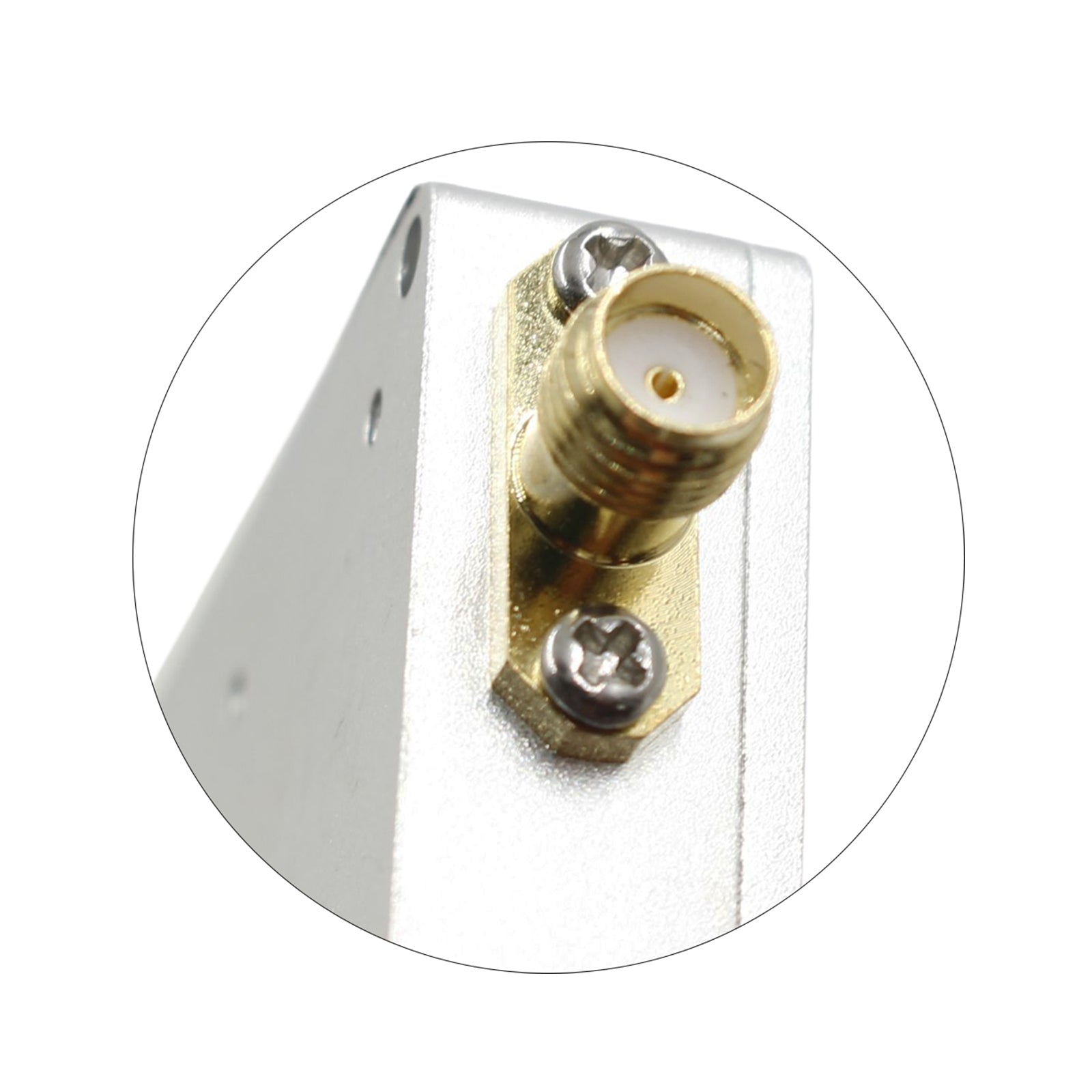

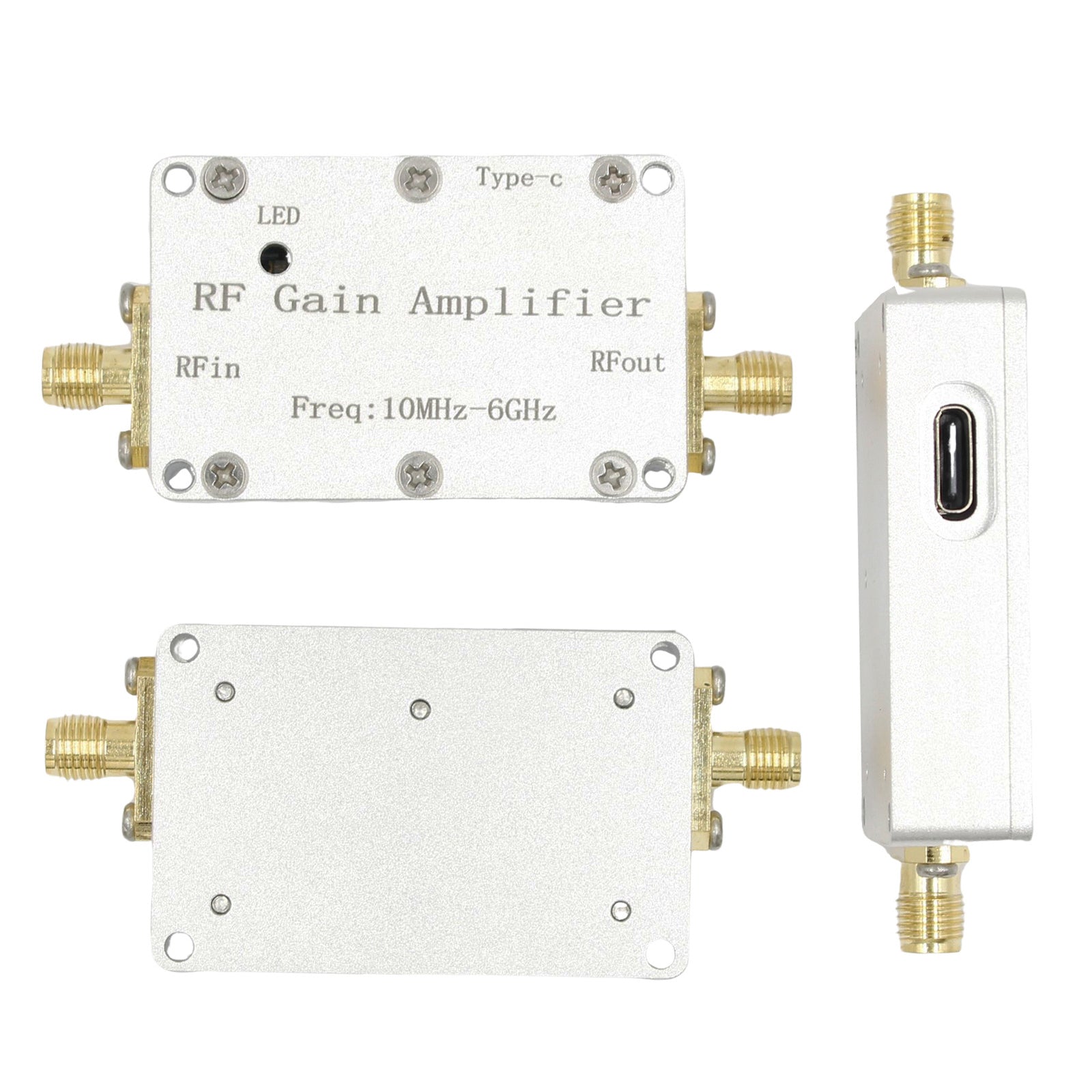

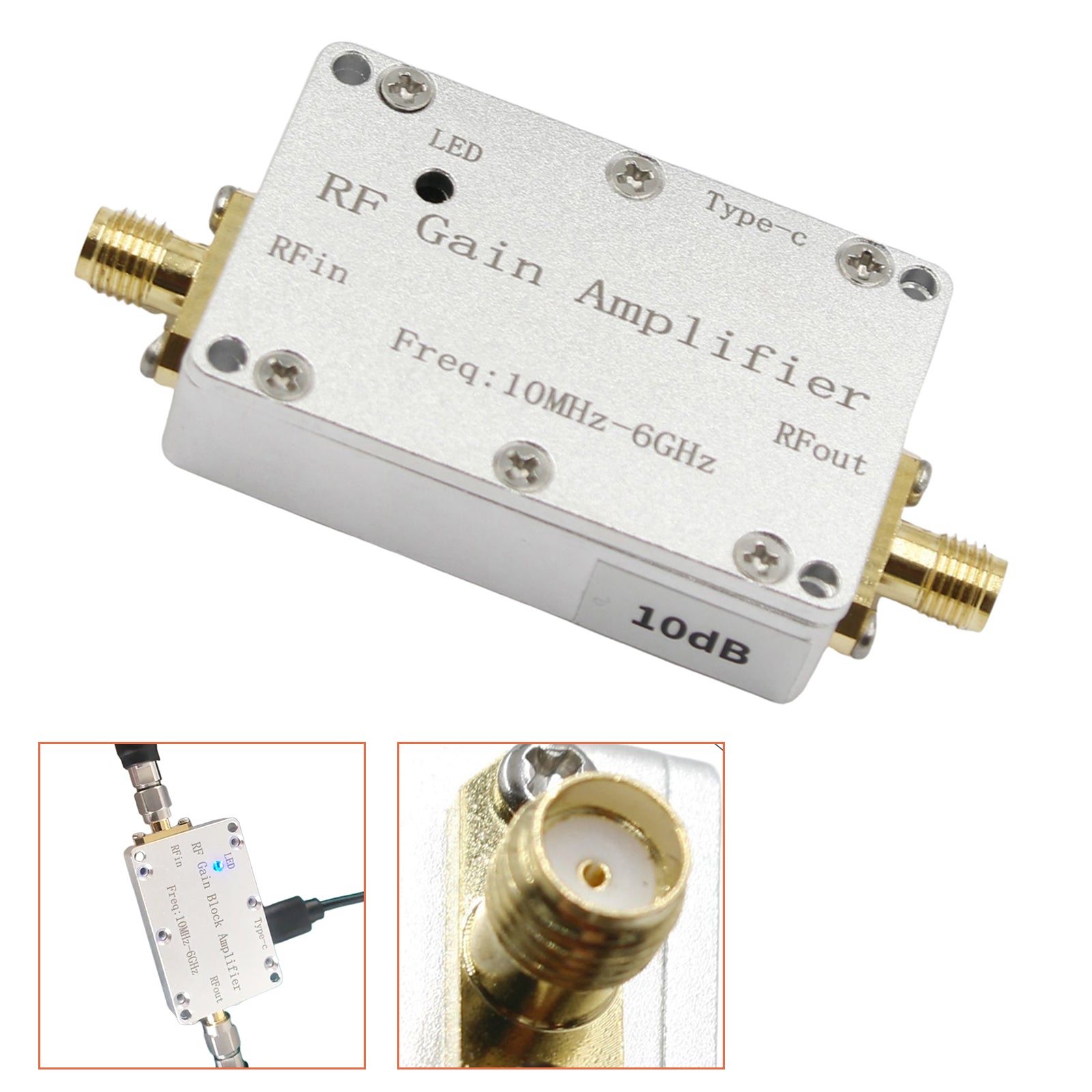

Input and output interface: SMA (external screw inner hole);

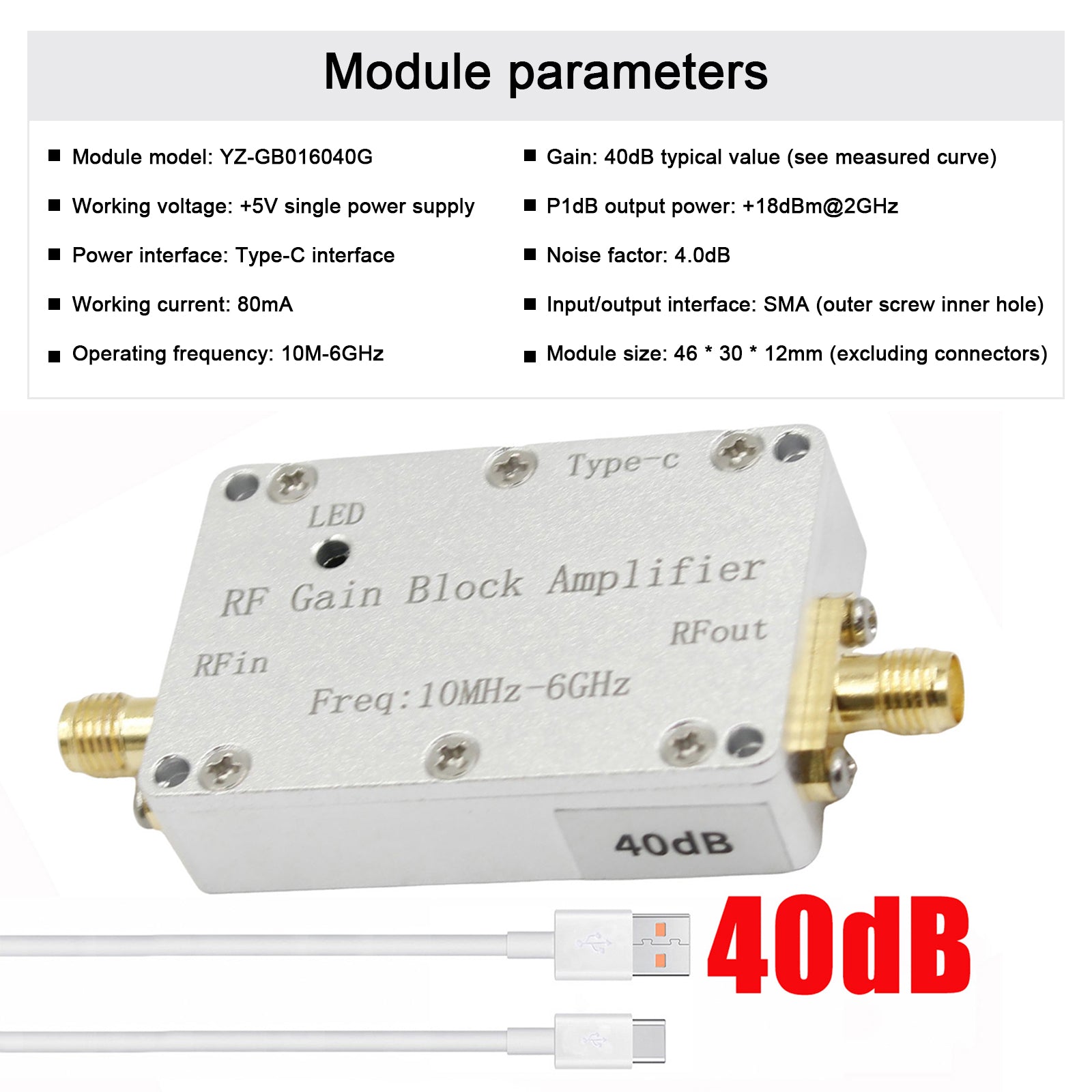

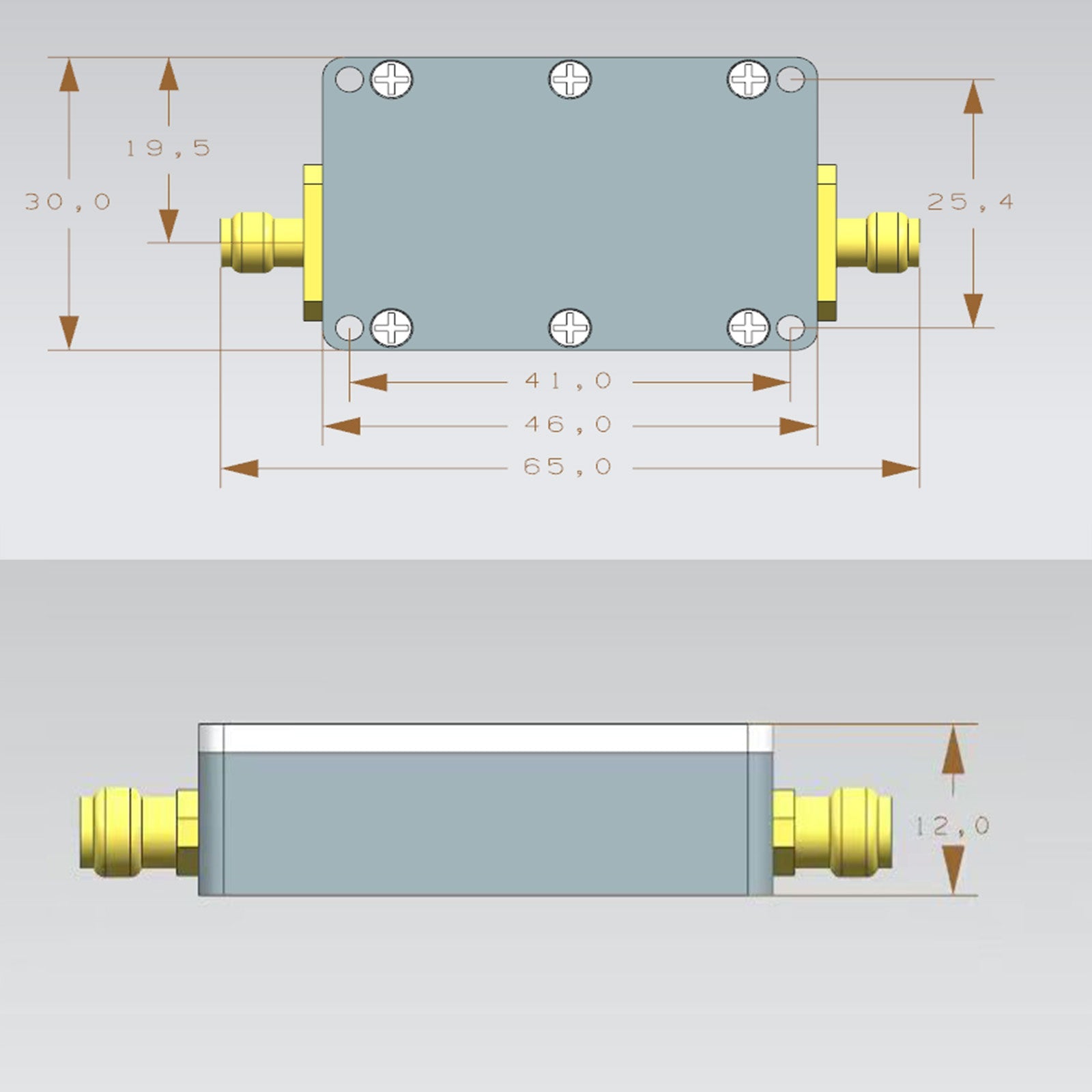

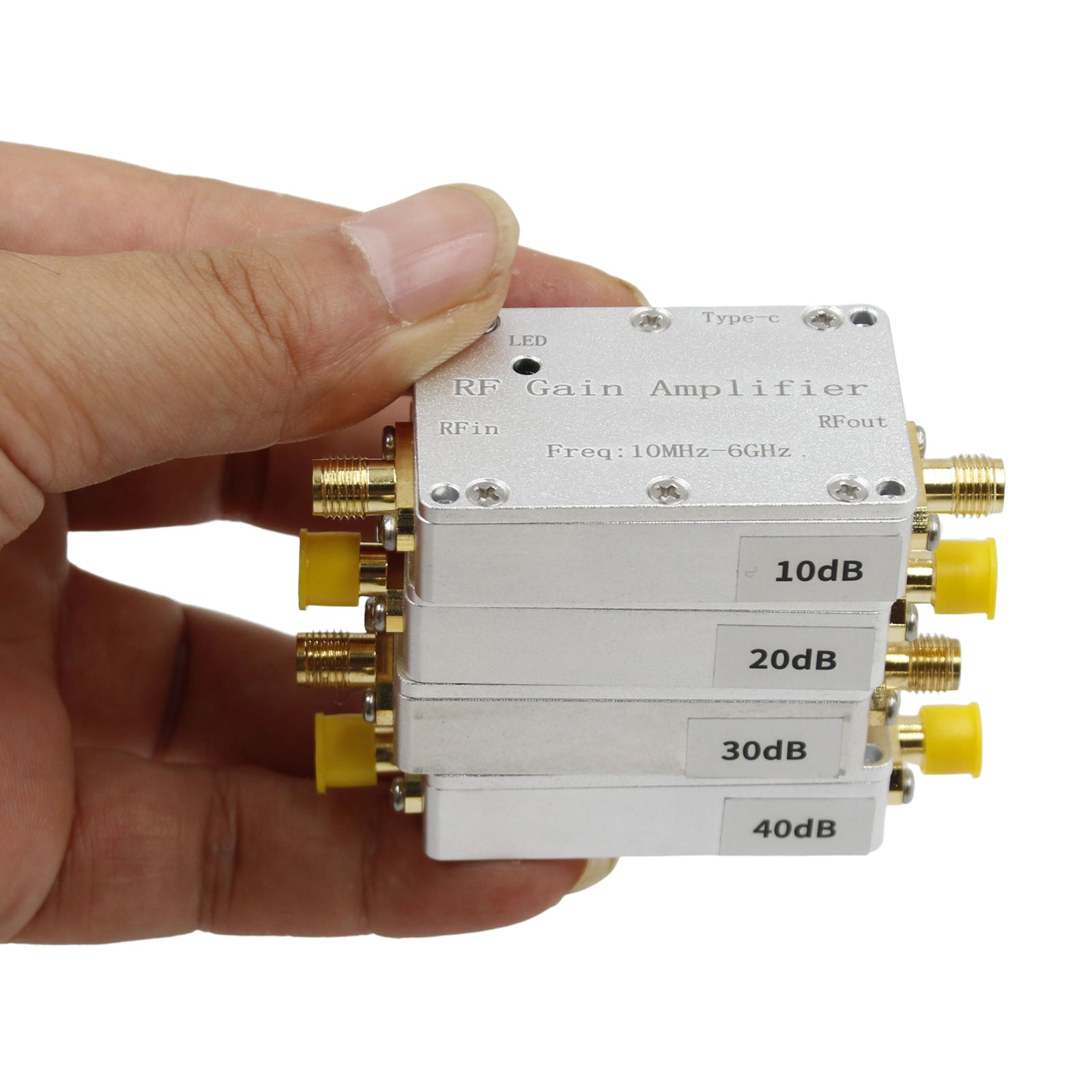

Module size: 46*30*12mm (excluding connector);
Module weight: 35g;
Weight: 60g (including host+TYPE-C cable);
Current:<100mA;
input-output impedance: 50 ohms

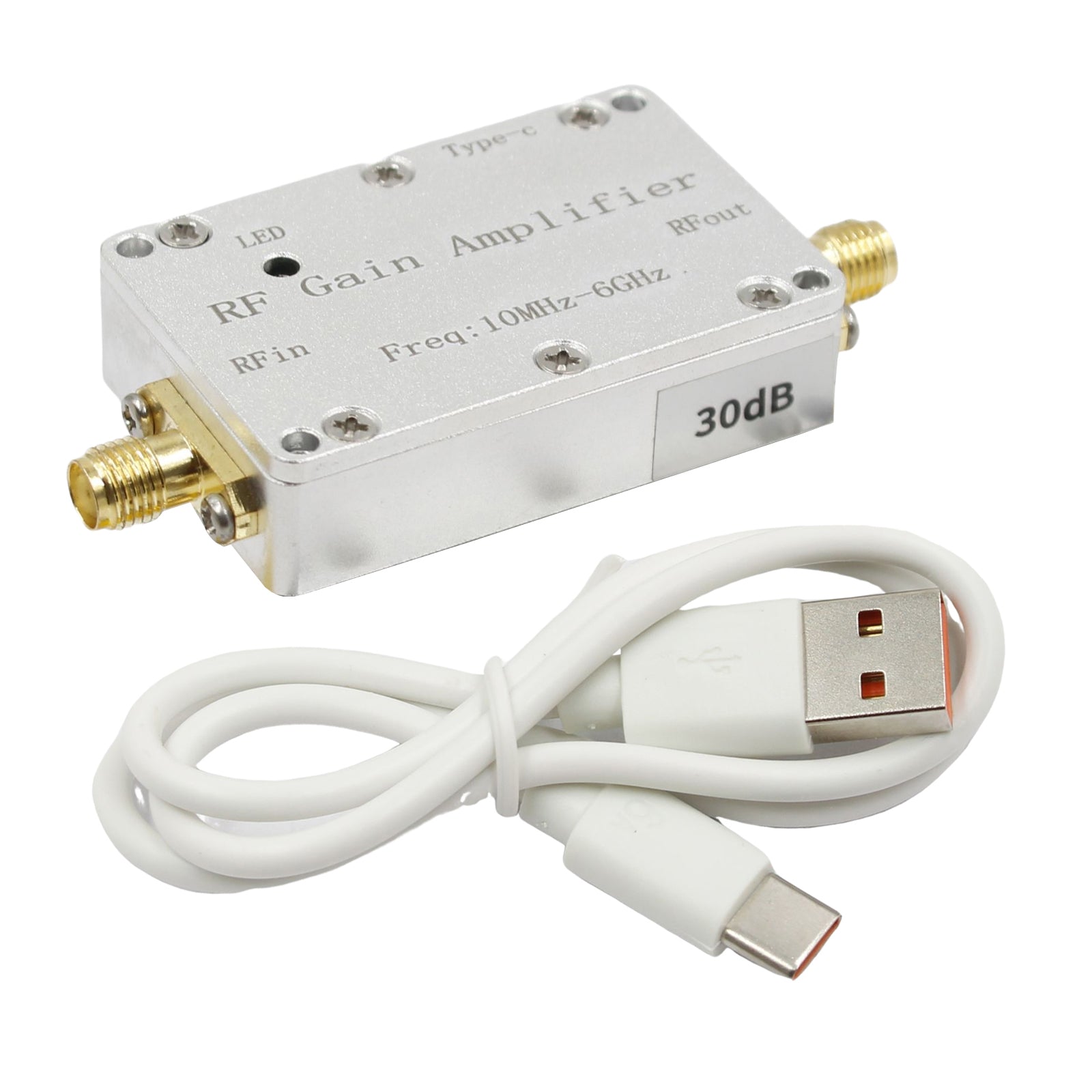

Package Included:

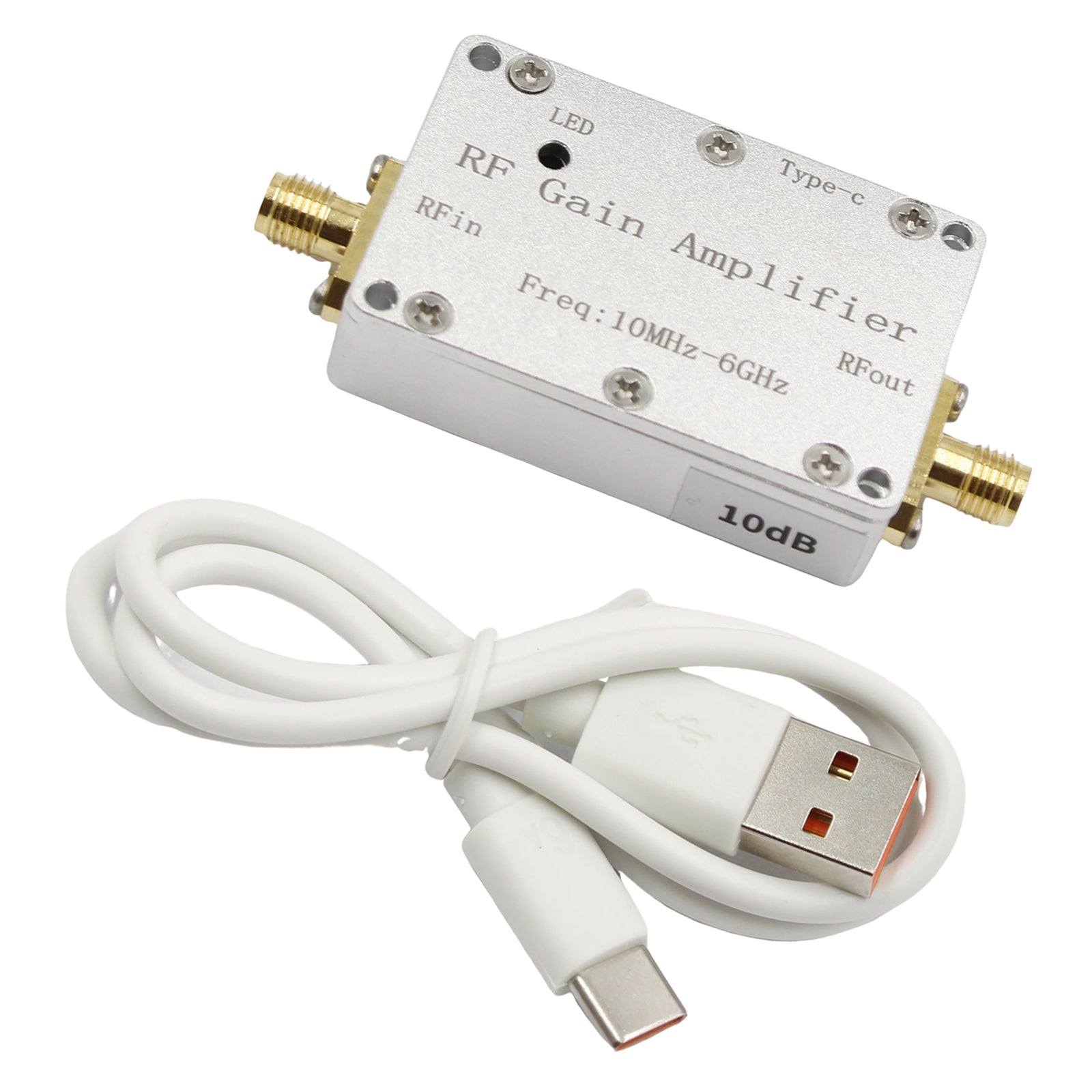

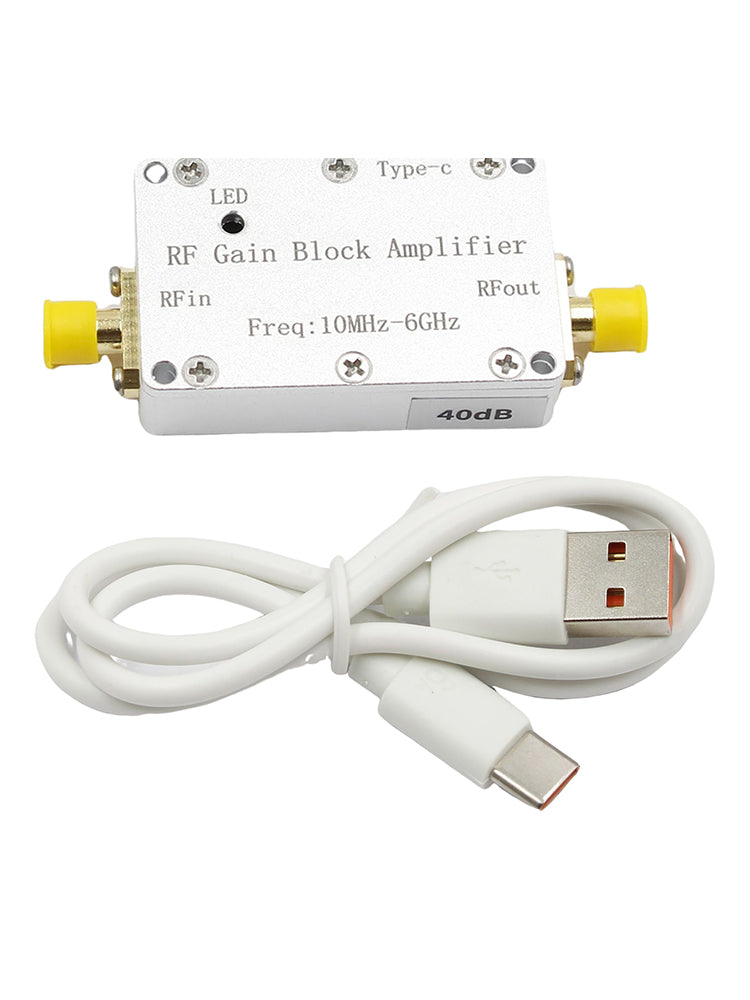

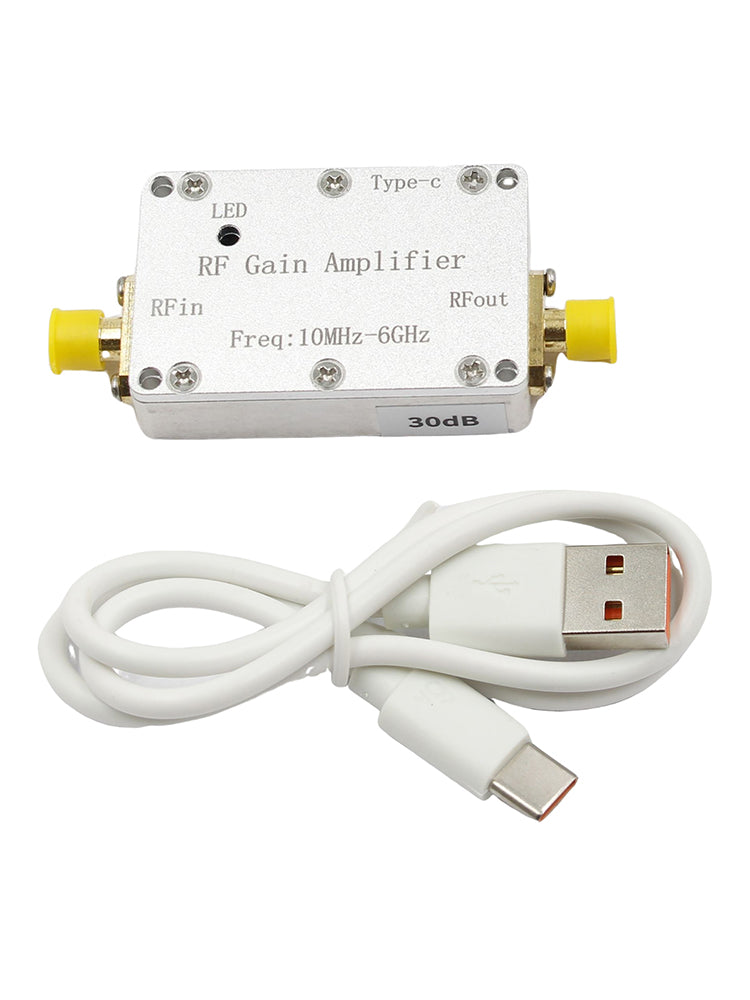

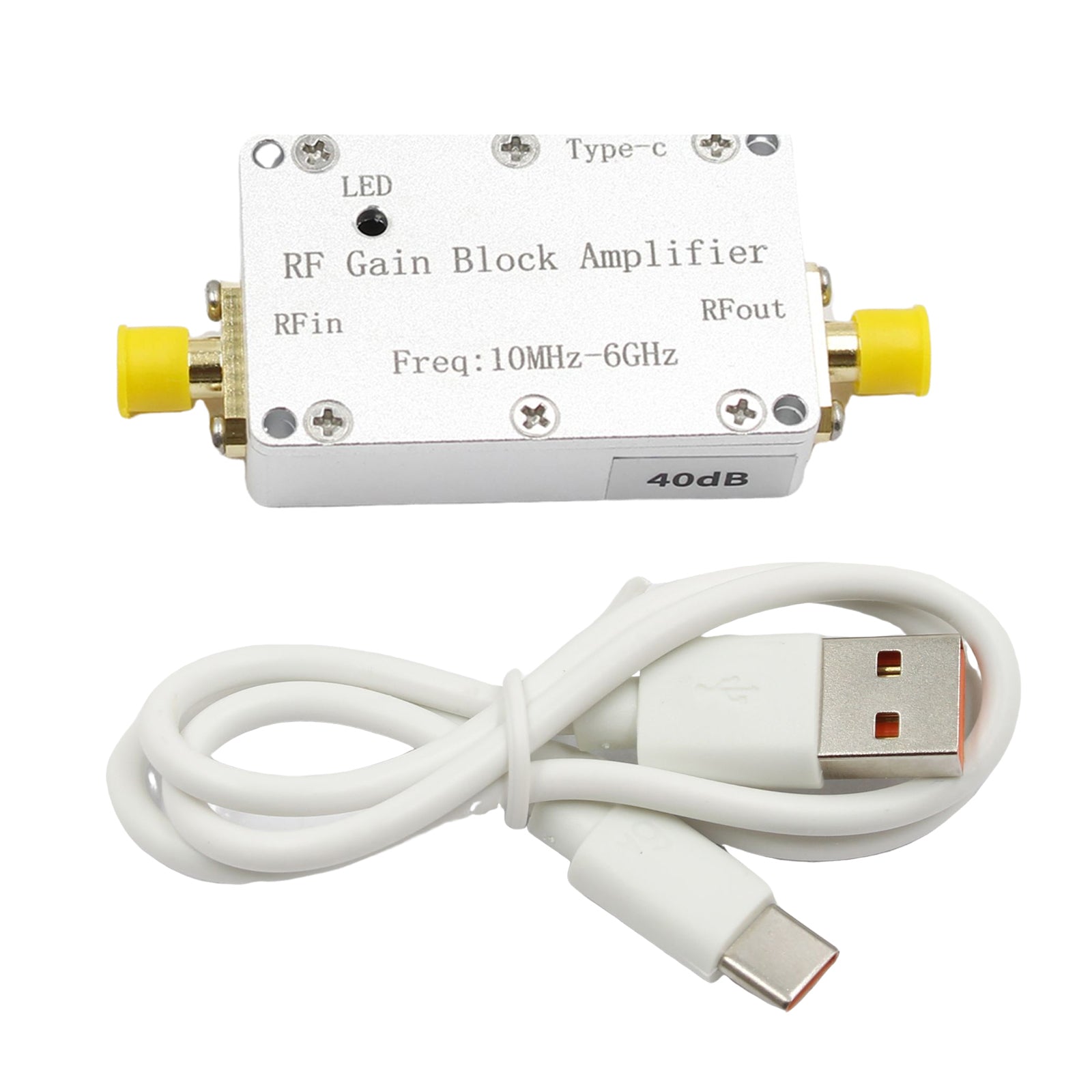

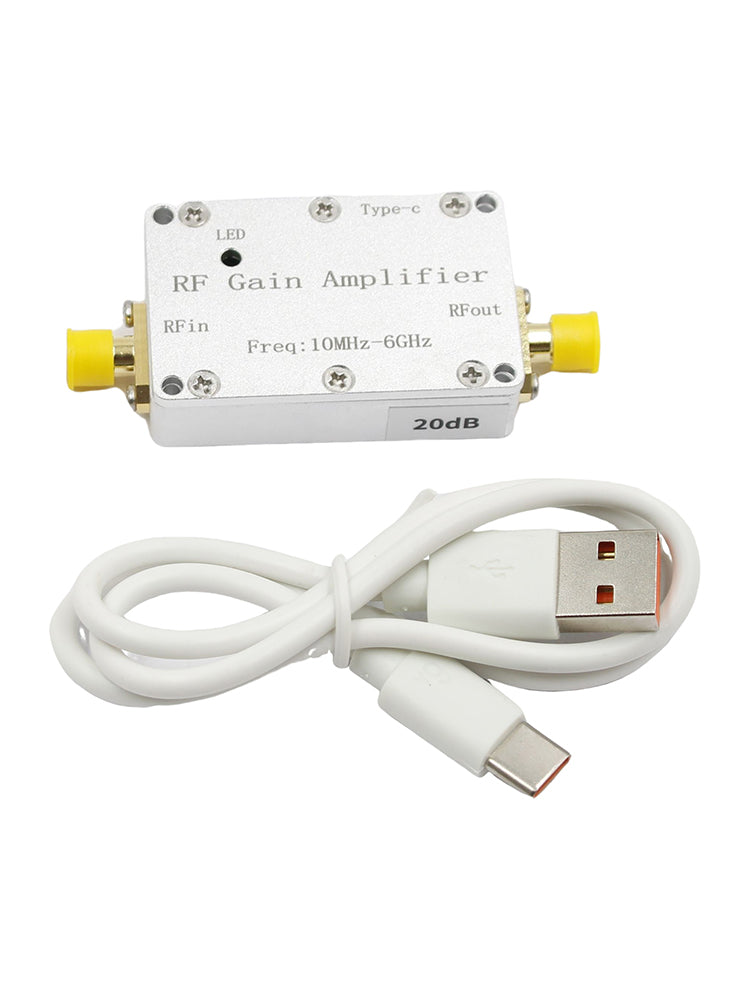

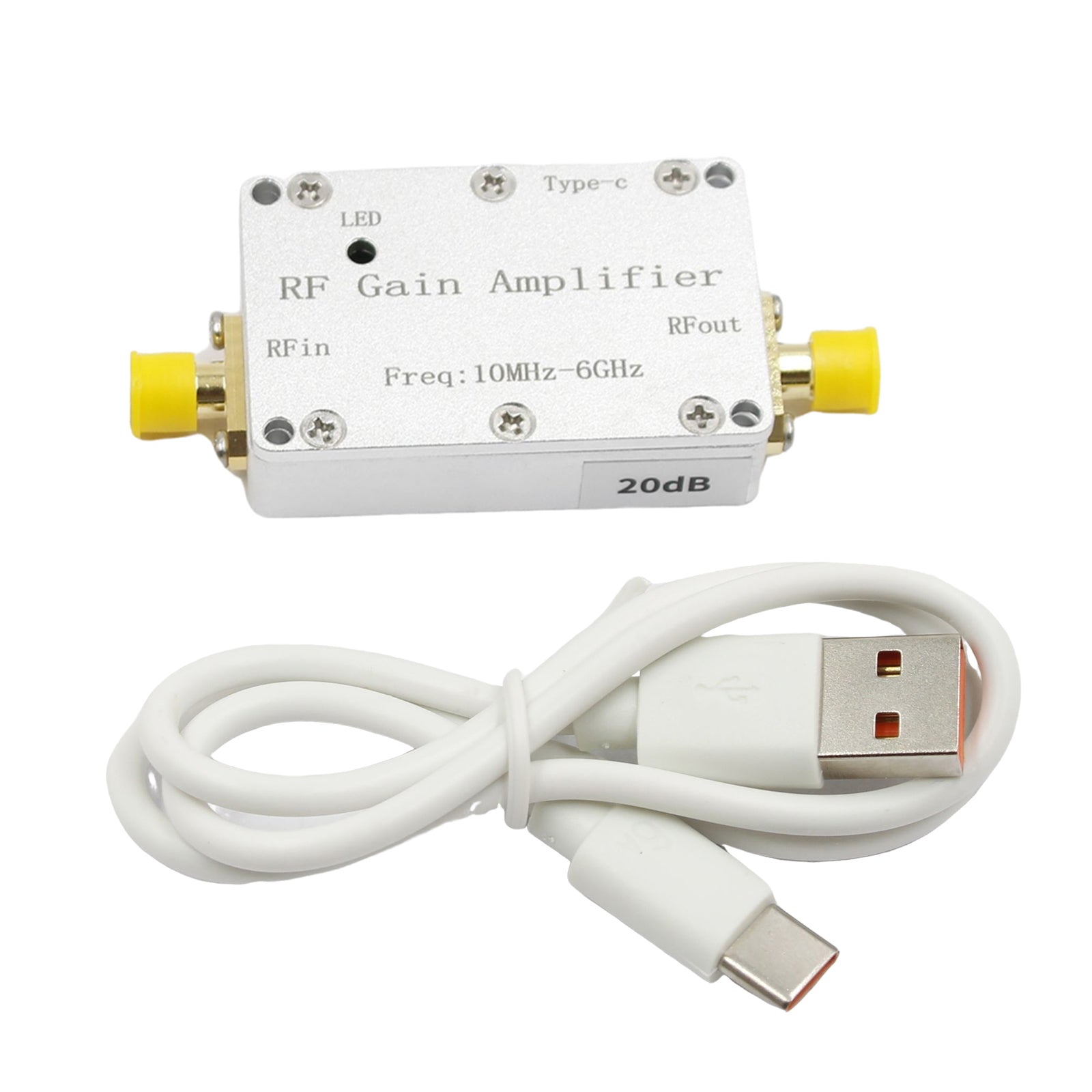

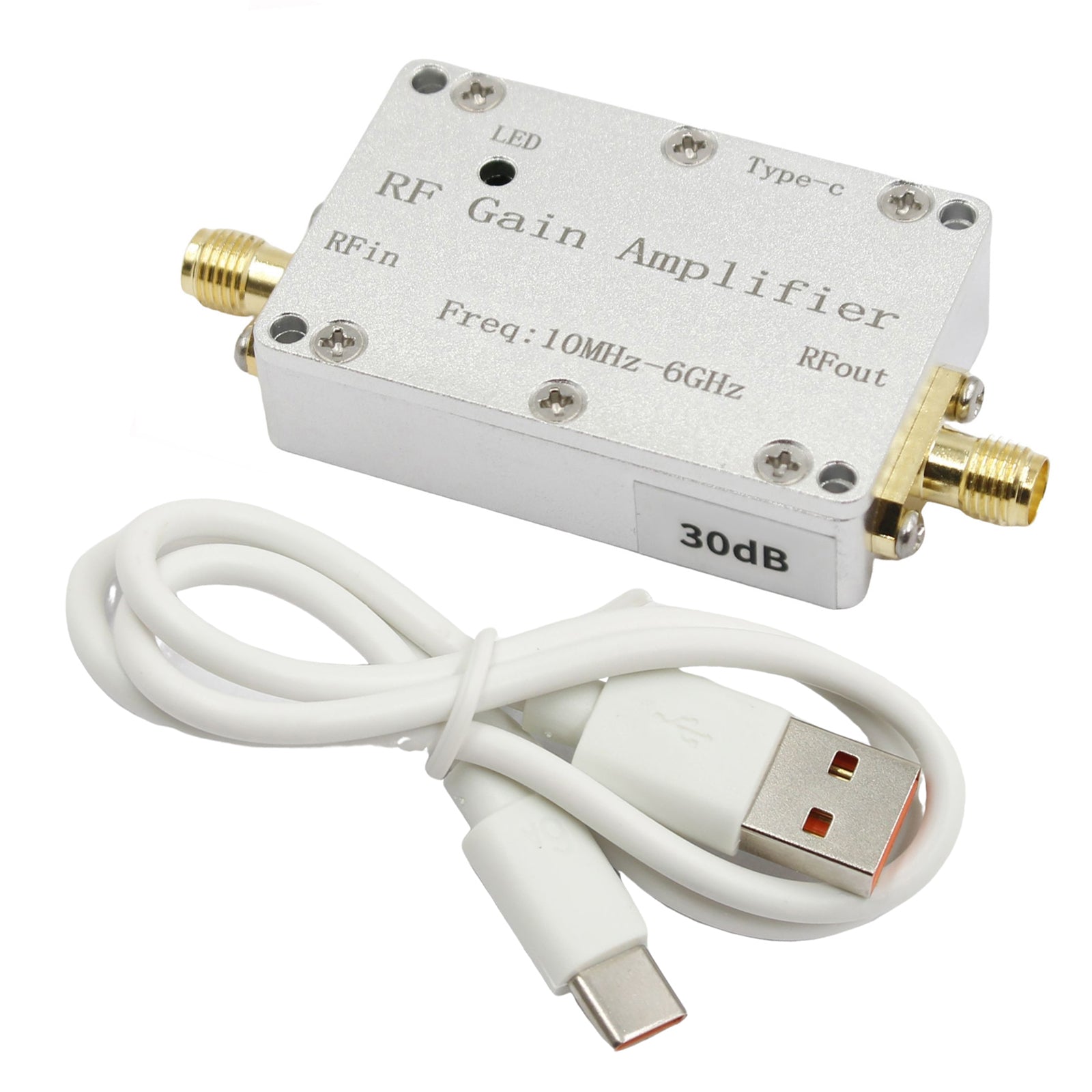

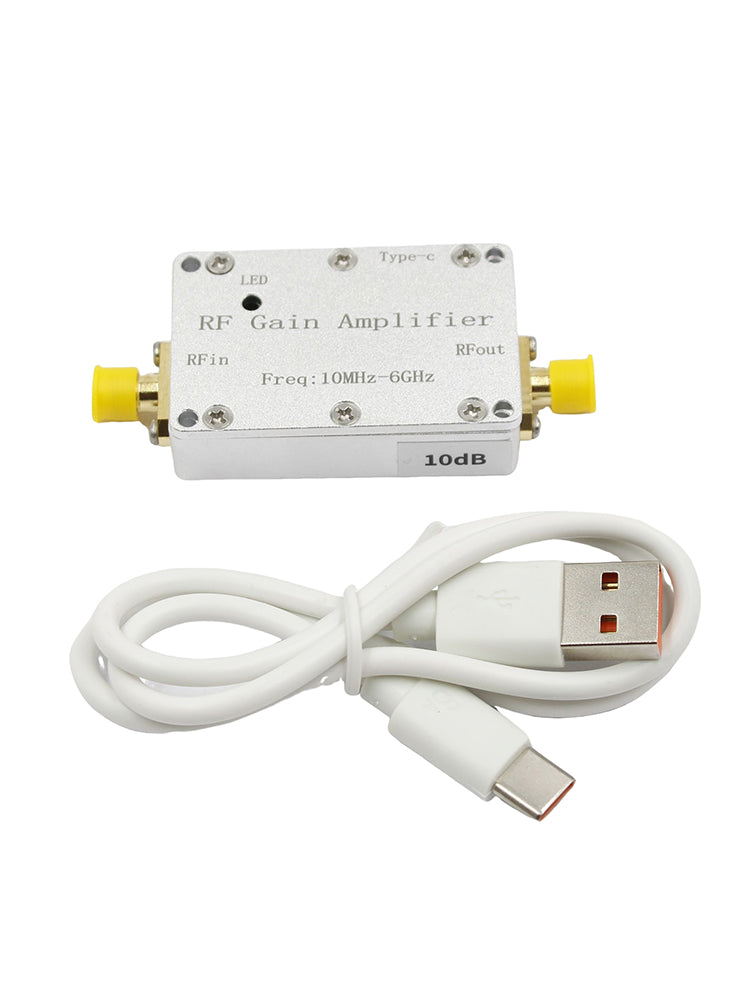

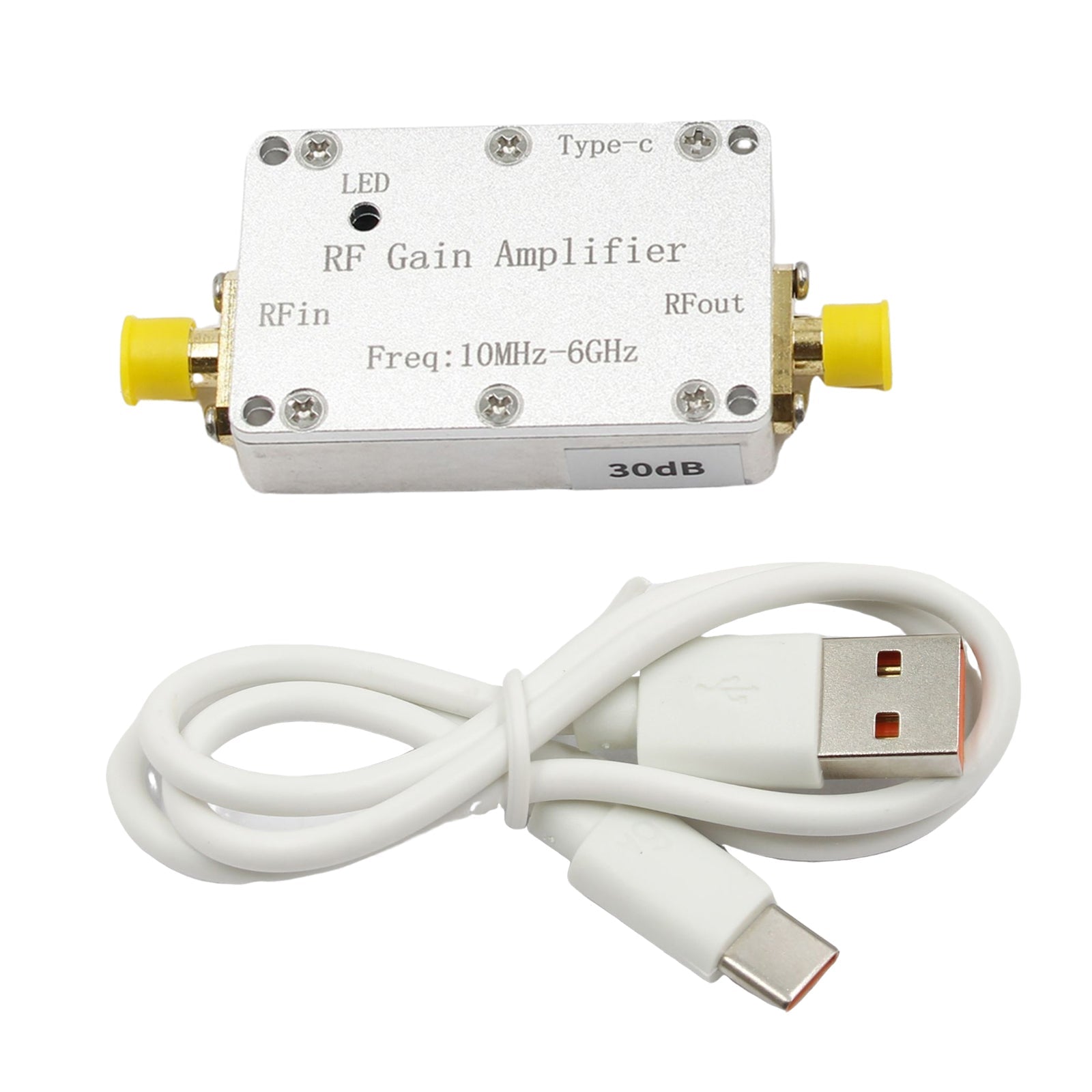

1 x Amplifier Module
1 x TYPE-C Cable
