Description
Feature:
1: Speed controller is made with high quality circuit board which ensures a longer service life.
2: This simple and easy-to-use DC motor speed controller has an stable performance.
3: Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.
4: This motor speed controller uses screw terminals for convenient and quick wiring.
5: Comes with a momentary start/stop switch and a speed control potentiometer.
Specifics:
Condition: 100% Brand New
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: 20A
Speed regulation type: current
Regulation method: potentiometer
Speed range: 0-100%
Control frequency: 15KHZ

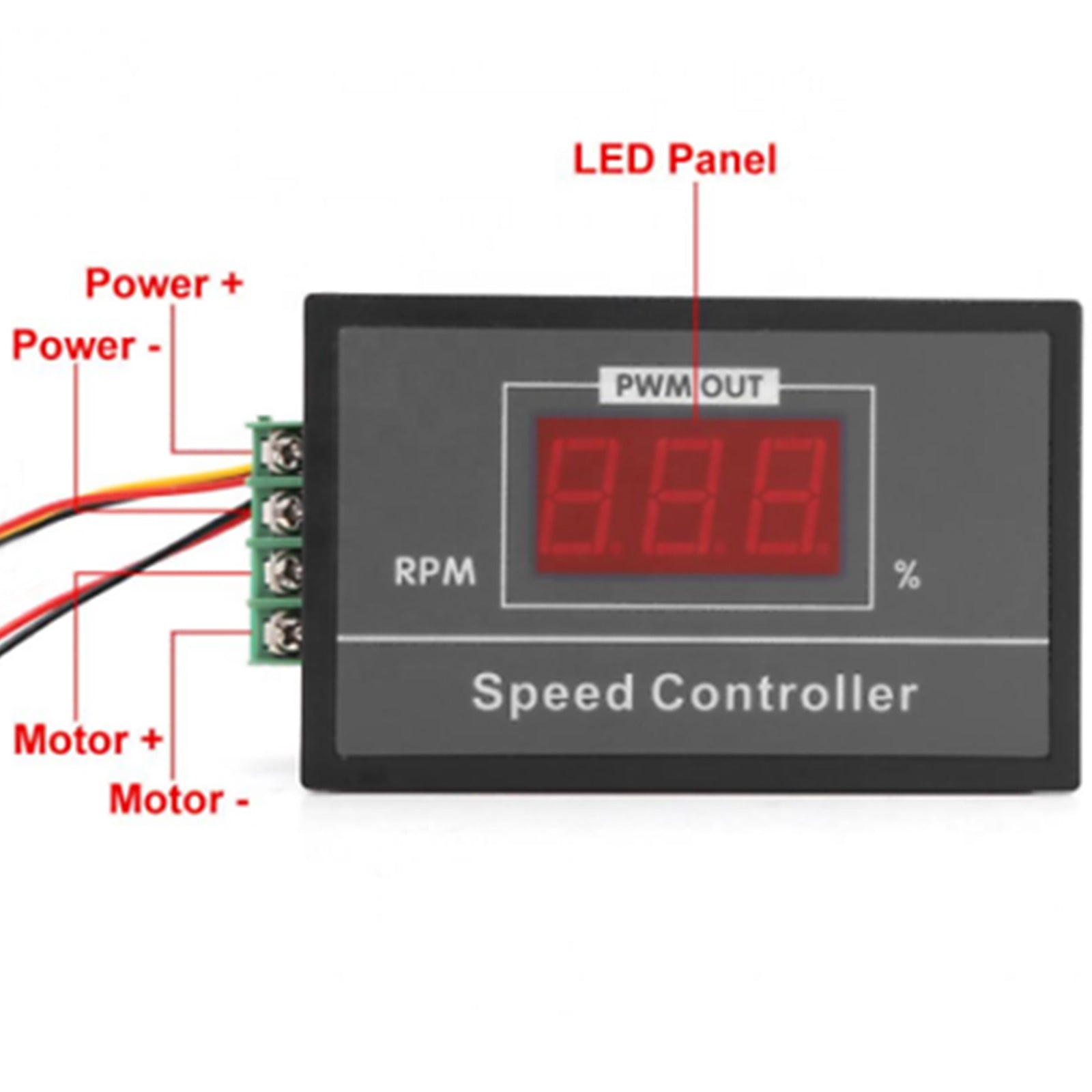

Connection type: Fence terminal block
Knob Cable length: 18CM

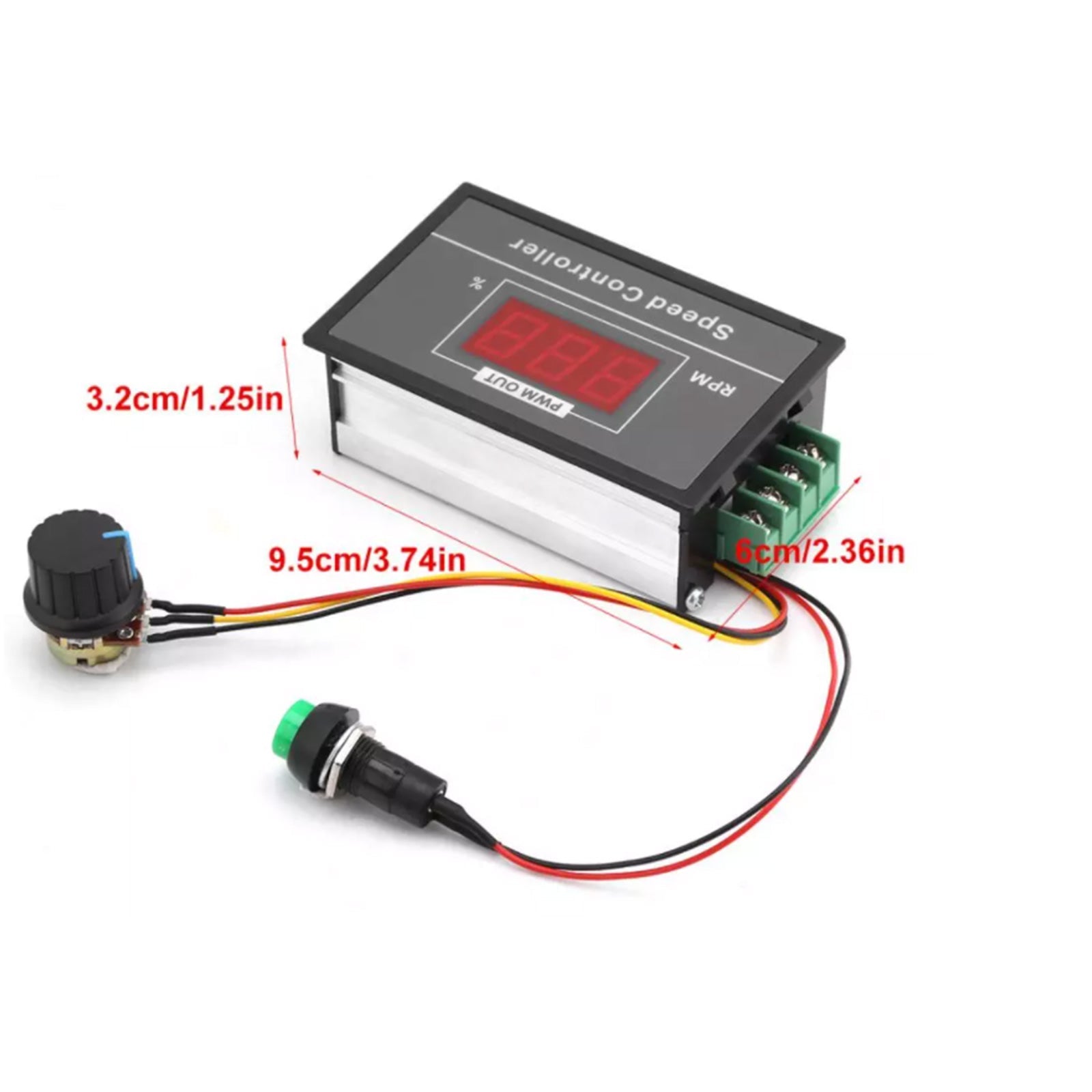

Module size: 96mm * 61mm * 34mm
Net product: 120g
Panel opening: 92mm * 56mm
Speed digital display: percentage 0-100
Note:
1.The digital display is a percentage that is not the actual speed of the motor.
2.The input voltage must be divided into positive and negative.
3.The input voltage must be equal to the rated voltage of the motor (within 6-60V) For example the motor rated voltage is 12V Input 12V / Motor 36V input 36V
Package Included:
1x 30A Speed PWM Controller
Shipping:
Free Shipping
Item location: Sydney Warehouse
Delivery Time: 3-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
