Description
Descriptions:

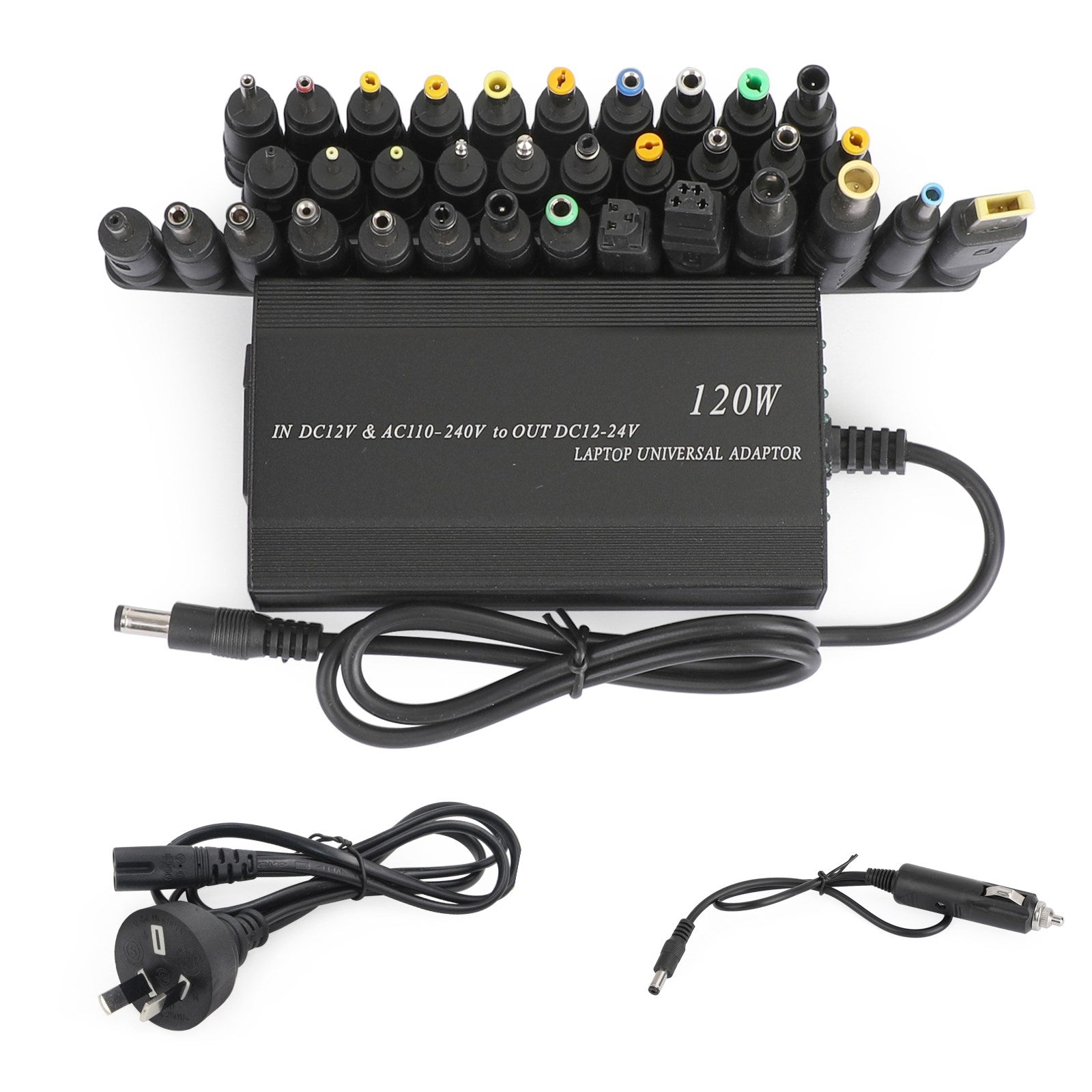

1 set 34 pcs Multi-function DC Plugs for 5.5x2.1mm Jack AC Power Adapter for Notebook Laptop.
Can charge laptop computer and mobile phone at the same time.
Accepts input 110V-240V 50-60Hz, allowing worldwide usage.
Features OVERLOAD PROTECTION & SHORT CIRCUIT PROTECTION.
With USB port for charge USB devices.
It comes with 34 separate tips to fit almost any laptop.
Specification:
Power Cable Plug Type: US/EU/UK/AU Plug(Option)
Product Name: Universal Charger Power Supply Adapter
Color: Black
Power connectors: 34 power Tips(Please check the connector whether it can fit your notebook or not.)
Maximum Power: 120W
DC Input Voltage: 12V
AC Input Voltage: 110-240V AC
Output Voltage: 12V, 15V, 16V, 18V, 19V, 20V, 22V, 24V, (adjustable)
Output Current: 12V, 15V, 16V, 18V, 19V 6A, 20V, 22V, 24V 5A
USB Terminal Output: 5V
Overload Protection: Yes
Short Circuit Protection: Yes
Connecting Tips Description: Used for external power adapter and on-board transformer
Male Plug Tips diameter outside/inside(or pin)
Compatible Brand:
For Apple, For Gateway, For Thinkpad, For Acer, For Sony,For HP, For ASUS, For Toshiba, For Dell, For Samsung, For Fujitsu, Universal, For Compaq, For Lenovo etc.
34 Tips Instructions for Use
Lenovo square Tip - Yellow - for Lenovo
4.5*3.0 mm - Blue - center pin inside, for HP
7.9*5.5 mm - Yellow - for Lenovo IBM Thinkpad
7.4*5.0 mm - Black - for Dell, HP Compaq Pavilion
4-hole Toshiba Tip - Black- for Toshiba
3-hole Dell Tip - Black - for Dell
6.3*3.0mm DC - Green - for Toshiba Satellite, Lenovo IdeaCentre
5.5*2.5mm Tuning Fork - Black - for ASUS, Toshiba, HP, MSI, IBM, Panasonic, Lenovo
5.5*2.1mm Tuning Fork - Black - for HP, Sega
5.5*1.9mm DC - Black - for Asus
5.5*1.5mm DC - Black
5.0*2.5mm DC - Black
5.0*2.1mm DC - Black
4.0*1.35 Tuning Fork - for Asus Zenbook
6.0*1.4mm Core pin - Black - for Samsung, Fujitsu, Sony
6.3*3.0mm Tuning Fork - Green - for Toshiba, Lenovo
5.5*2.5mm DC - White - for Lenovo, Asus, Acer, MSI, BenQ, Toshiba, IBM, Gateway, Haier
5.5*2.1mm DC - Blue - for Acer, Toshiba, HP
5.5*1.7mm Tuning Fork - Yellow - for Hasee, Acer, Lenovo, Asus, BenQ, Toshiba
5.0*1.1mm Core Pin - Yellow
4.8*1.7mm Tuning Fork - Yellow - for HP Pavilion, Sony, Asus Eee, NEC, Delta, Compaq
4.0*1.7mm Tuning Fork - Yellow - for Asus, BenQ, acer, SonyPSP, HP(mini), GPS Navigator
3.5*1.35mm DC - Red - for Fujitsu, Dell, Sharp
3.0*1.1mm DC ???Black - for Samsung
5.5*2.5mm Tuning Fork - Yellow - for Lenovo, Asus, Acer, MSI, Toshiba, IBM
5.5*2.5mm DC - Black - for Lenovo, Asus, Acer, MSI, BenQ, HEDY, Toshiba, IBM, Gateway, Haier
5.5*1.5mm DC - Black
5.5*1.7mm Tuning Fork - Yellow - for Gateway, Acer, Delta
4.8*1.7mm J-CAM - Black - for HP, Asus, lenovo, NEC, Delta, Compaq
3.5mm Mono - for Classic Radio
2.5mm Mono - for Audio
2.5*0.7mm Tuning Fork - Yellow - for Dell, Samsung, Sharp, Power Supply, Android Tablet
2.35*0.8mm Tuning Fork - Yellow
2.0*0.5mm Tuning Fork ???Black
Package Included:
1 x 120W Universal Laptop AC Adapter
34 x Laptop Adapter's Tips
1 x Power Cord
1 x Car cigarette lighter Adapter
Shipping:
Free Shipping
Delivery Time:2-6 working days
Warranty:
Returns:Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online:Solve your installation and product problems
