Description

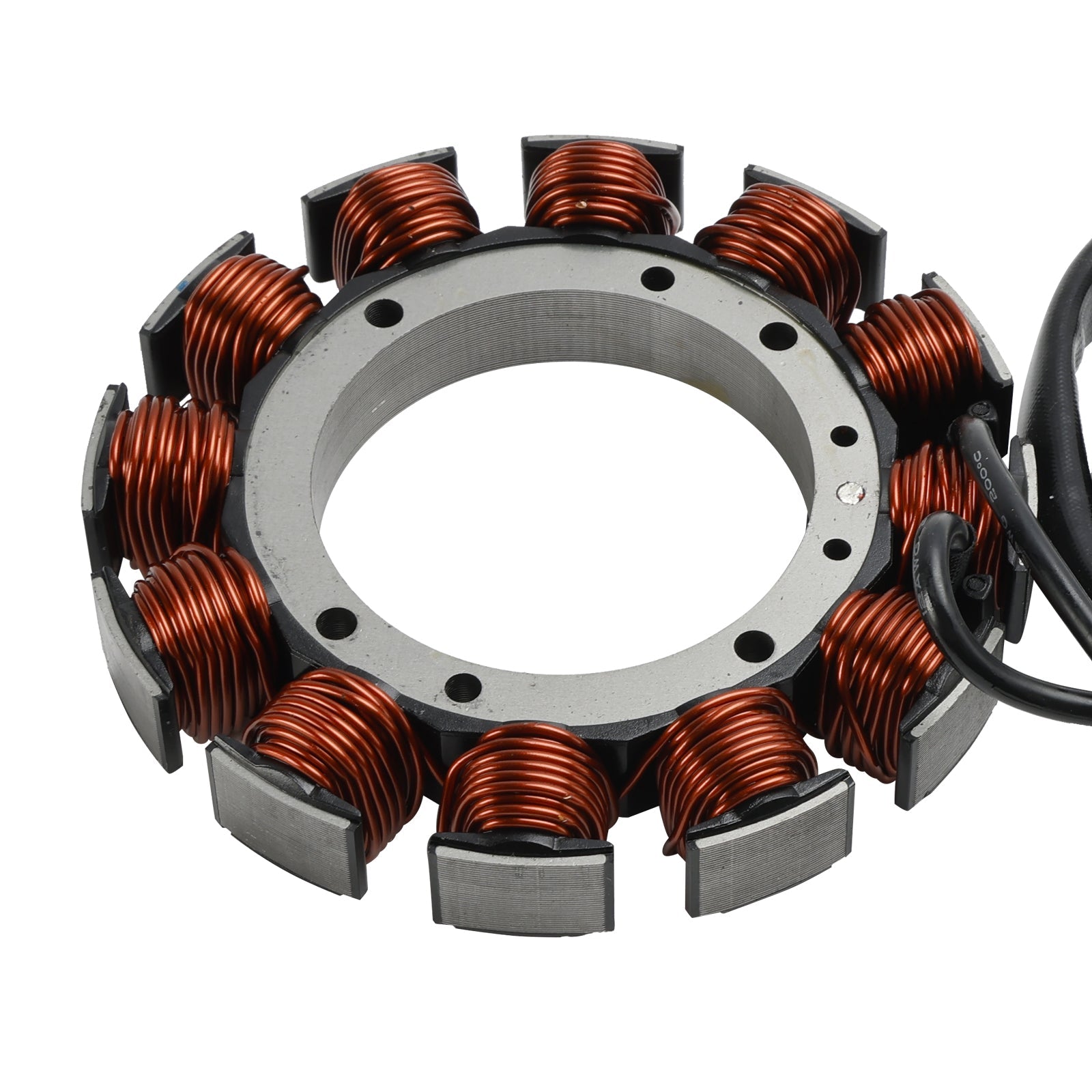

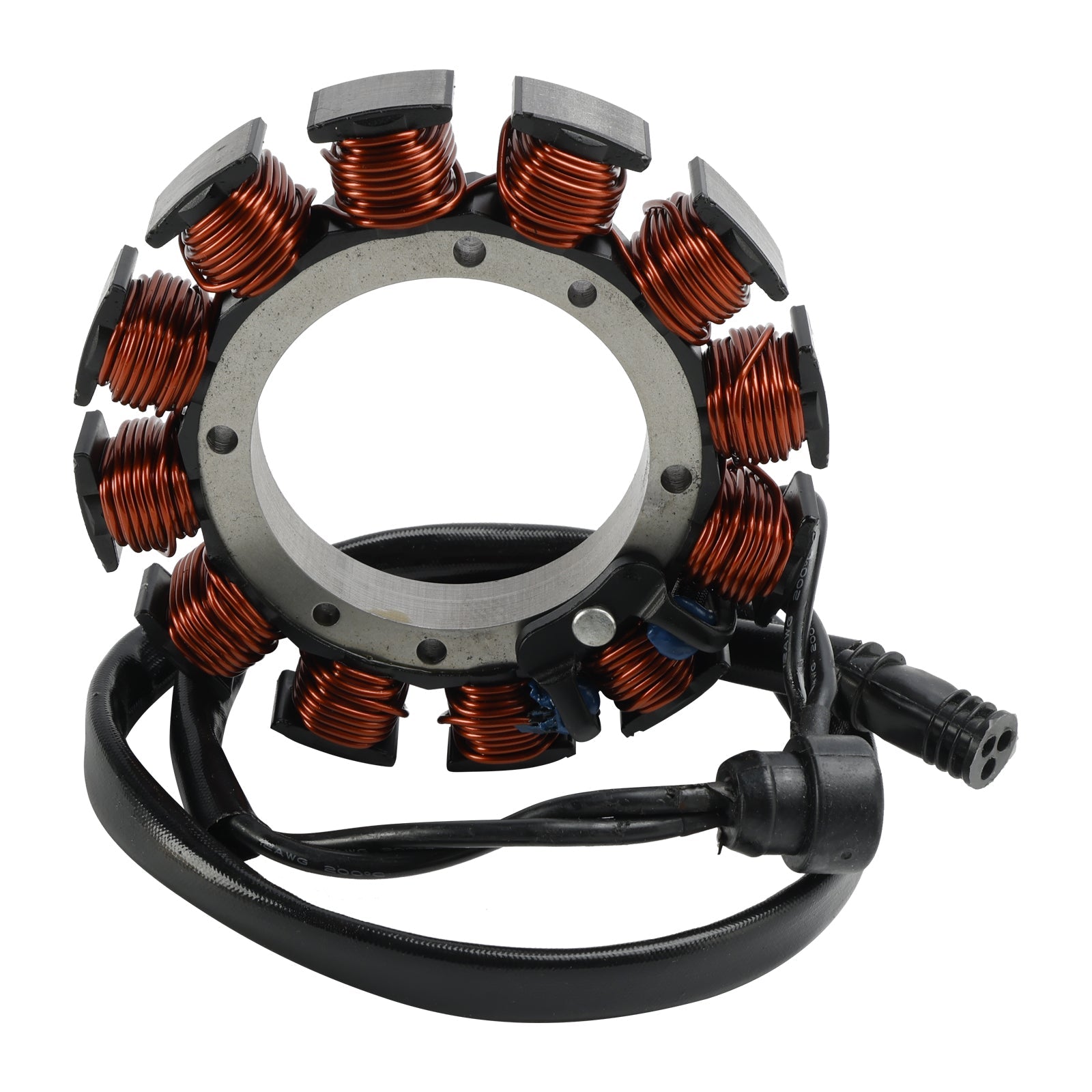

32Amp Generator Stator Fit for '07-'13 XL Sportster '08-'12 XR1200 29997-07 29997-07A
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Alternator
other specifications:
Number of wires: 2

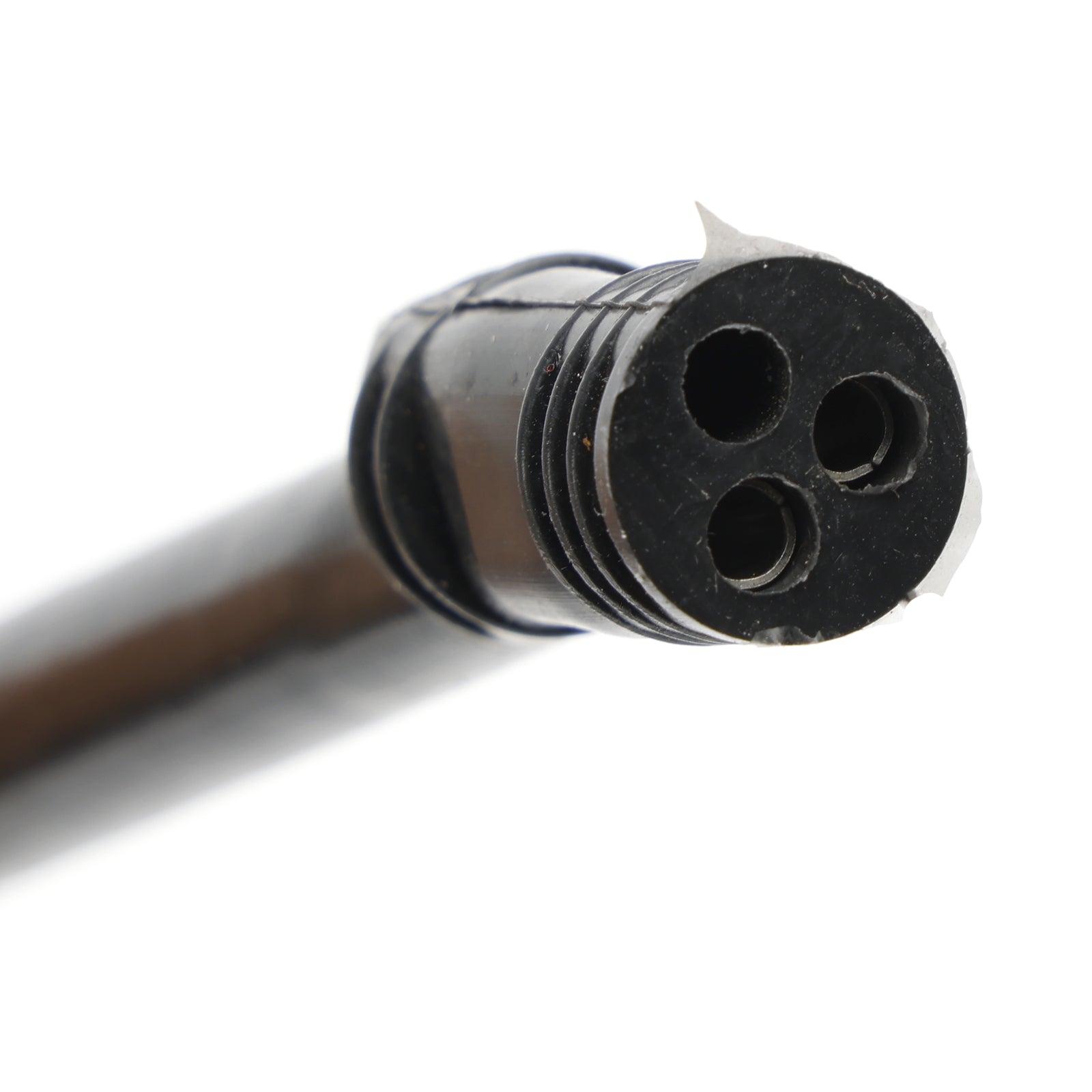

Number of plugs: 1
Number of pins: 2
Number of poles: 12
Replacement Part Number:
2999707
29997-07
29997-07A
2999707A
Fits Model/Year:
Fit for Sportster 1200 Custom EFI XLC 2007 - 2013
Fit for Sportster 1200 Low EFI XLL 2007 - 2011
Fit for Sportster 1200 Nightster XLN 2007 - 2012
Fit for Sportster 1200 Roadster EFI XLR 2007 - 2008
Fit for Sportster 883 Custom EFI XLC 2007 - 2009
Fit for Sportster 883 EFI XL 2007 - 2008
Fit for Sportster 883 Low EFI XLL 2007 - 2010
Fit for Sportster 883 Roadster EFI XLR 2007
Fit for Sportster 883 SuperLow XLL 2011 - 2013
Fit for Sportster Iron 883 XLN 2009 - 2013
Fit for Sportster Sportster 1200 XL 50 2007
Fit for Sportster Forty-Eight XLX 2010 - 2013
Fit for Sportster Seventy-Two XLV 2012 - 2013
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator

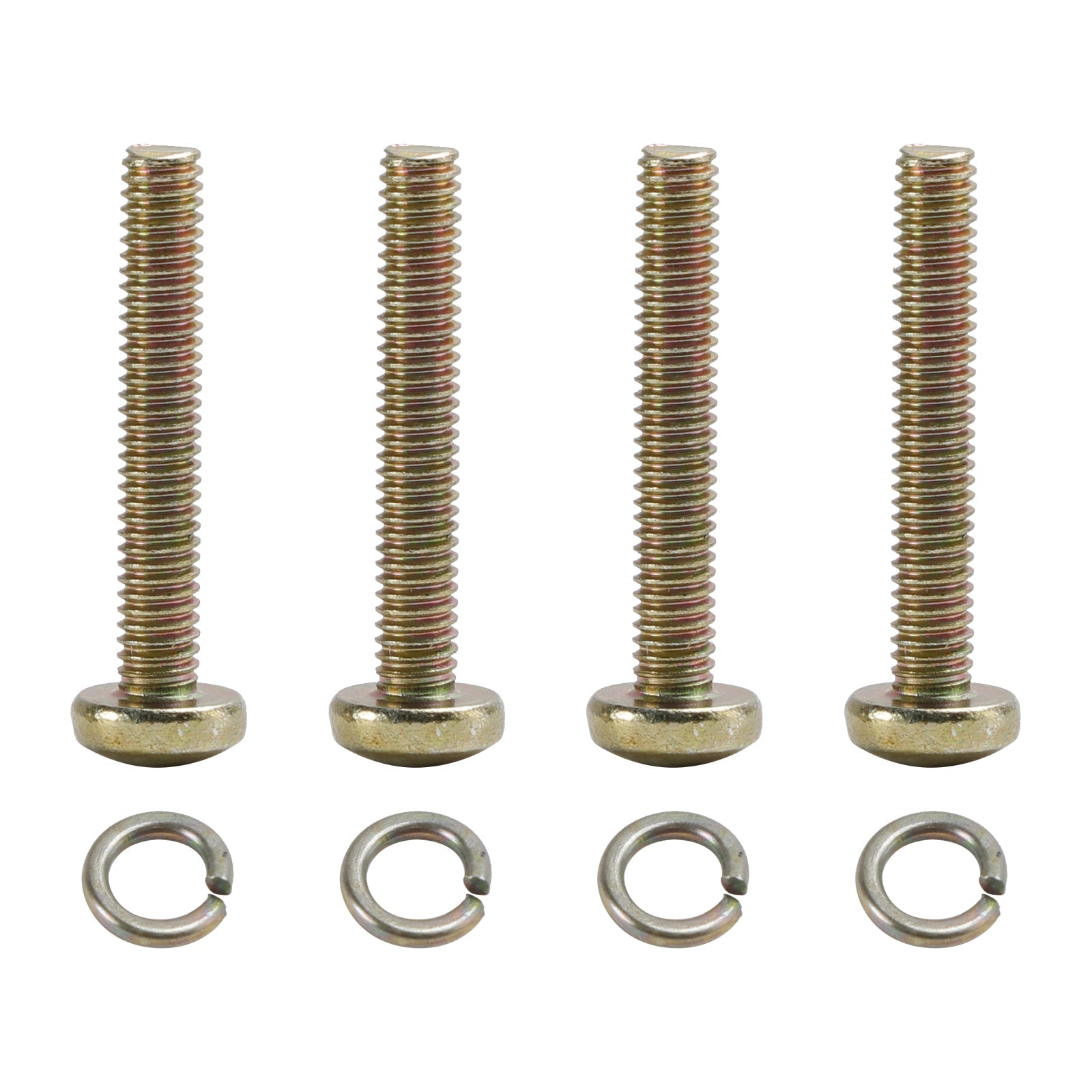

4x Mounting Bolts
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
