Description
Features:

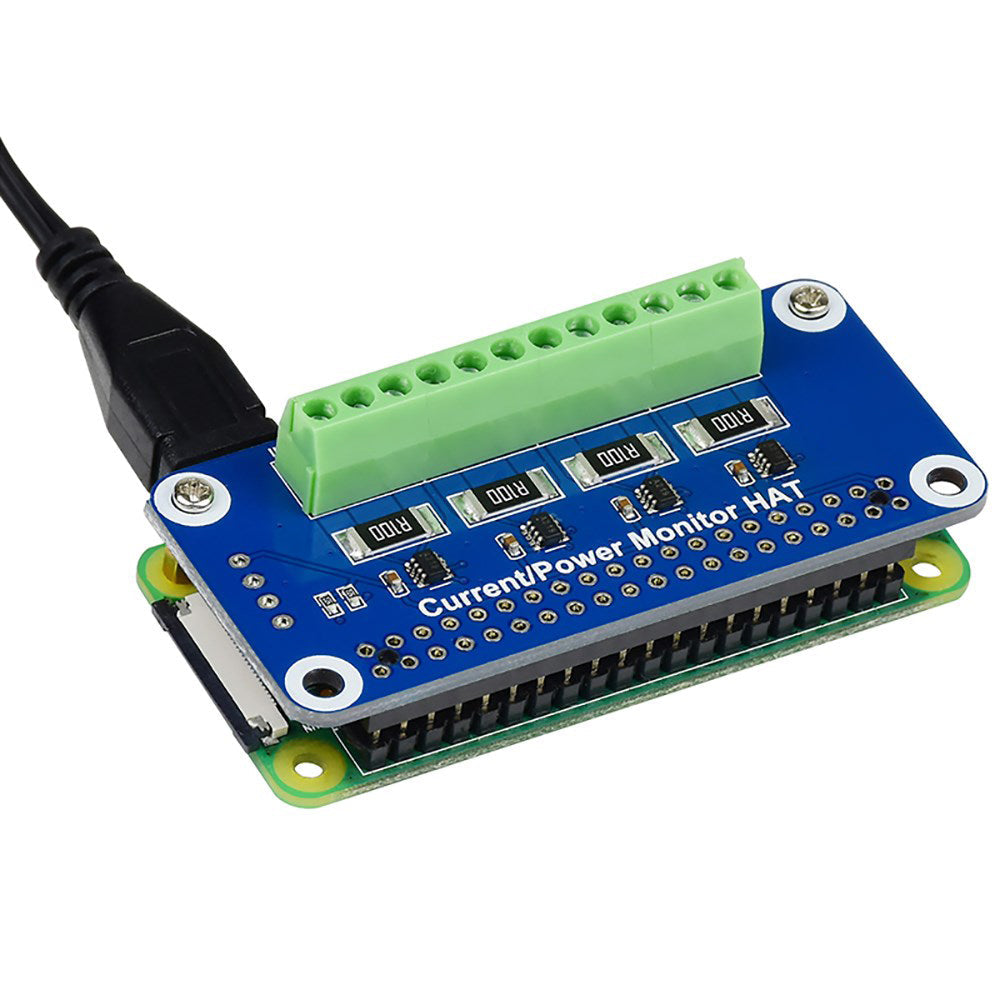

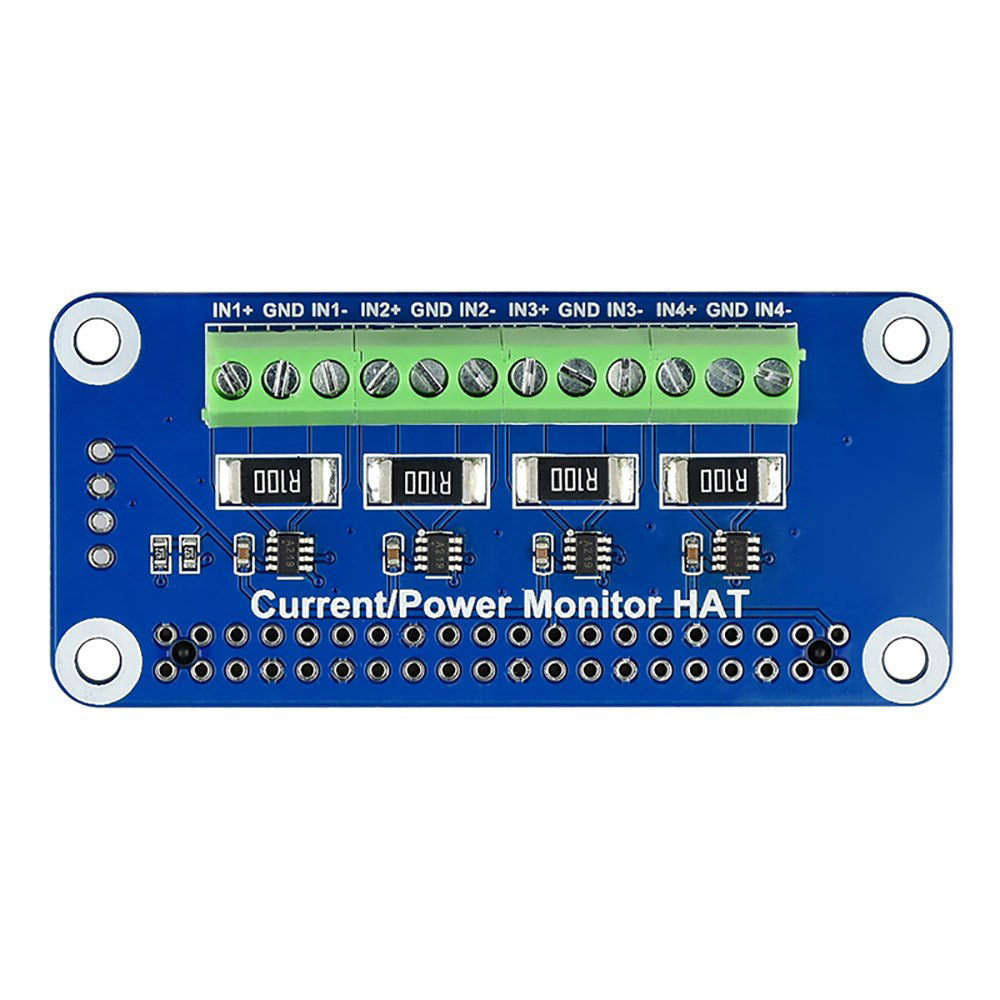

1. This is a 4-ch current and power monitor HAT designed for Raspberry Pi,Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards,4-ch monitoring, via I2C/SMBus interface.
2. Onboard 0.1?? 1?? sampling resistor, allows measuring bi-directional current up to 3.2A. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
3. Directly calculate and output measured power value through additional multiply register.I2C control pins for connecting with other host boards
4. Operating voltage: 3.3V/5V. Control interface: I2C/SMBus. Sampling resistor: 0.1?? 1%. Voltage range: 0~26V.
5. Current range: ??3.2A Resolution: 0.8mA (??3.2A range) OR 0.1mA (??400mA range) Dimensions: 65mm ?? 30mm Mounting hole size: 3.0mm
Specifications
Operating voltage: 3.3V/5V
Control interface: I2C/SMBus
Sampling resistor: 0.1?? 1%
Voltage range: 0~26V
Current range: ??3.2A
Resolution: 0.8mA (??3.2A range) OR 0.1mA (??400mA range)
Dimensions: 65mm ?? 30mm
Mounting hole size: 3.0mm
Package List:
1 x Sense HAT
1 x Pin Header
2 x Screw
2 x Nut
2 x Connection Column
