Improved 16 Ton Hydraulic Wire Battery Cable Lug Terminal Crimper With 13 Dies

SKU: E301-E002

Price:
Sale price$231.77 CAD

Description

Specification:
1. Crimping Range: 8-300mm2
2. Max Pressure: 16 Ton
3. Crimping Type: Hexagon Crimping
4. Max Travel: 22mm
5. Length: Approx. 45cm/18"
6. Weight: Approx. 3.7kg/8.5 lbs Crimper; Total 6.3kg/13.8 lbs with Case and 13pairs of dies.
7. Package:High Quality Plastic Carrying Case 53*20*9cm( 20.8"L x 8"W x 3.5"H)
8. Standard Accessories: 8,10,16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2(13 Crimping Dies,In response to customer needs, the product has been improved: Adding 8mm and 10mm dies for your choice.)

Product Features:
1. The tool pressure could be automatically adjusted in any direction.
2. Stable crimping in low resistance and high efficiency. It is ideal for compression of Cu/Al terminals in the end and middle of power wiring line.
3. Easy to use On-Off control for fast operation
4. Maximum 16 tons crimping power
5. Crimper head can be rotated for adjustable directions
6. 13 sets of different size hexagon dies with chrome finish???????
7. Long comfortable ergonomic cushioned handle make it asy to hold and use (13.5")
8. Crimps AWG 6 to 600 MCM size aluminum and copper wire
9. High quality plastic carrying case
10. Great for battery, welding cables, power wires and electrical cables etc.
11. This hydraulic crimping plier is a very professional tool for crimping aluminum and cooper or other types of metal .
12. Total weight is 13.8 lbs with useful carrying case, nearly 18 inch long and comes with 13 sets of hexagon dies.
13. The crimping range is from 8 to 300 mm2 to suit for different size demands.

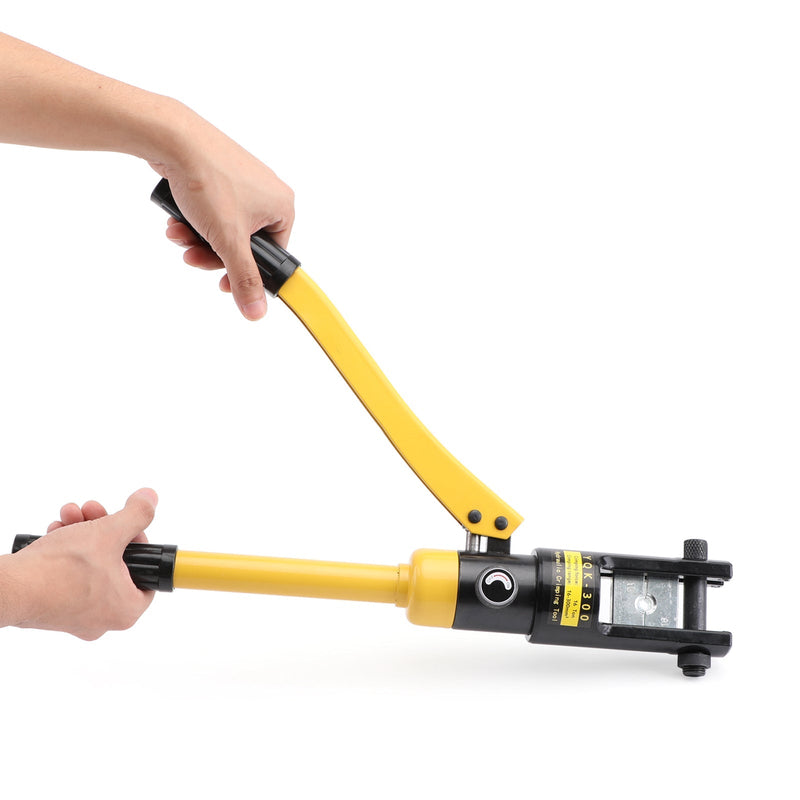

Operation Manual:
Turn moveable handle to drive plunger work. Then oil pressure lifts,Big plunger push slightly crimping die ahead until two pieces of dies touch(Don't impose more pressure. Otherwise parts inside would be damaged.).If fitted with safety unit,the safe unit inside would release pressure automatically.when pressure reach to preset limit. Then undo oil return switch. The piston automatically reset. The step 1 finishes. The step 2 is by analogy with Step1. It is normal that there is little oil appearing from plunger and big piston in Operation.

Improved 16 Ton Hydraulic Wire Battery Cable Lug Terminal Crimper With 13 Dies


Note:
In response to customer needs, the product has been improved: Adding 8mm and 10mm dies for your choice.
Pressing without contact mould is strictly prohibited to avoid damaging the components.

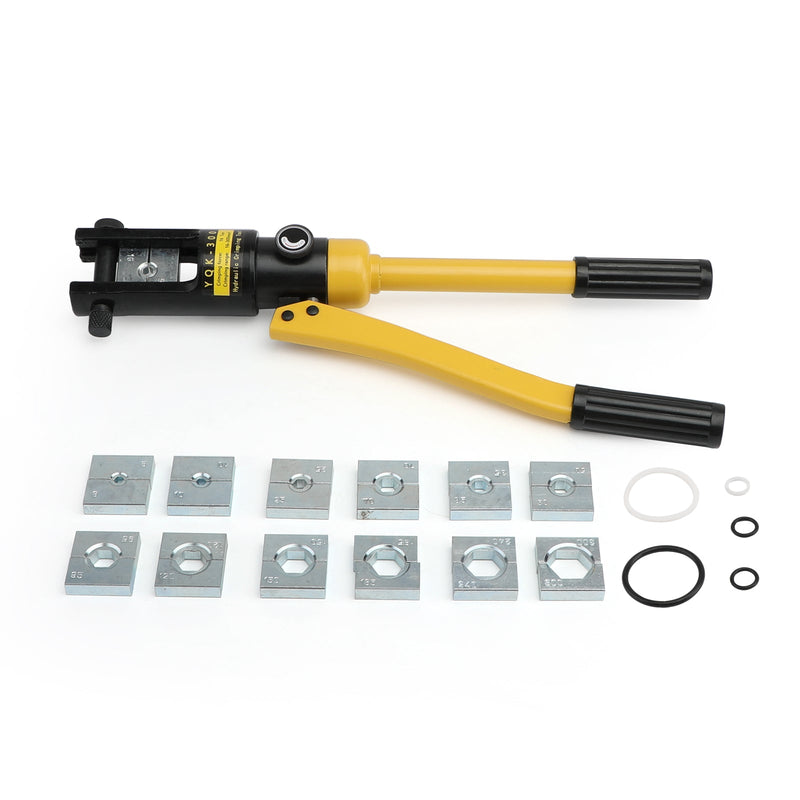

Package Includes:
1 x Hydraulic Crimper
1 x Positive Die Positioning Pin
1 x Strong Protective Storage Carry Case
13 x Pairs of Dies (The product has been improved: Adding 8mm and 10mm Crimping dies for your choice.)
1 x Sealing Ring

Shipping:
Free Shipping

Delivery Time: 3-6 working days

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
