Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
All products shipped are tested
Condition: Aftermarket 100% Brand New

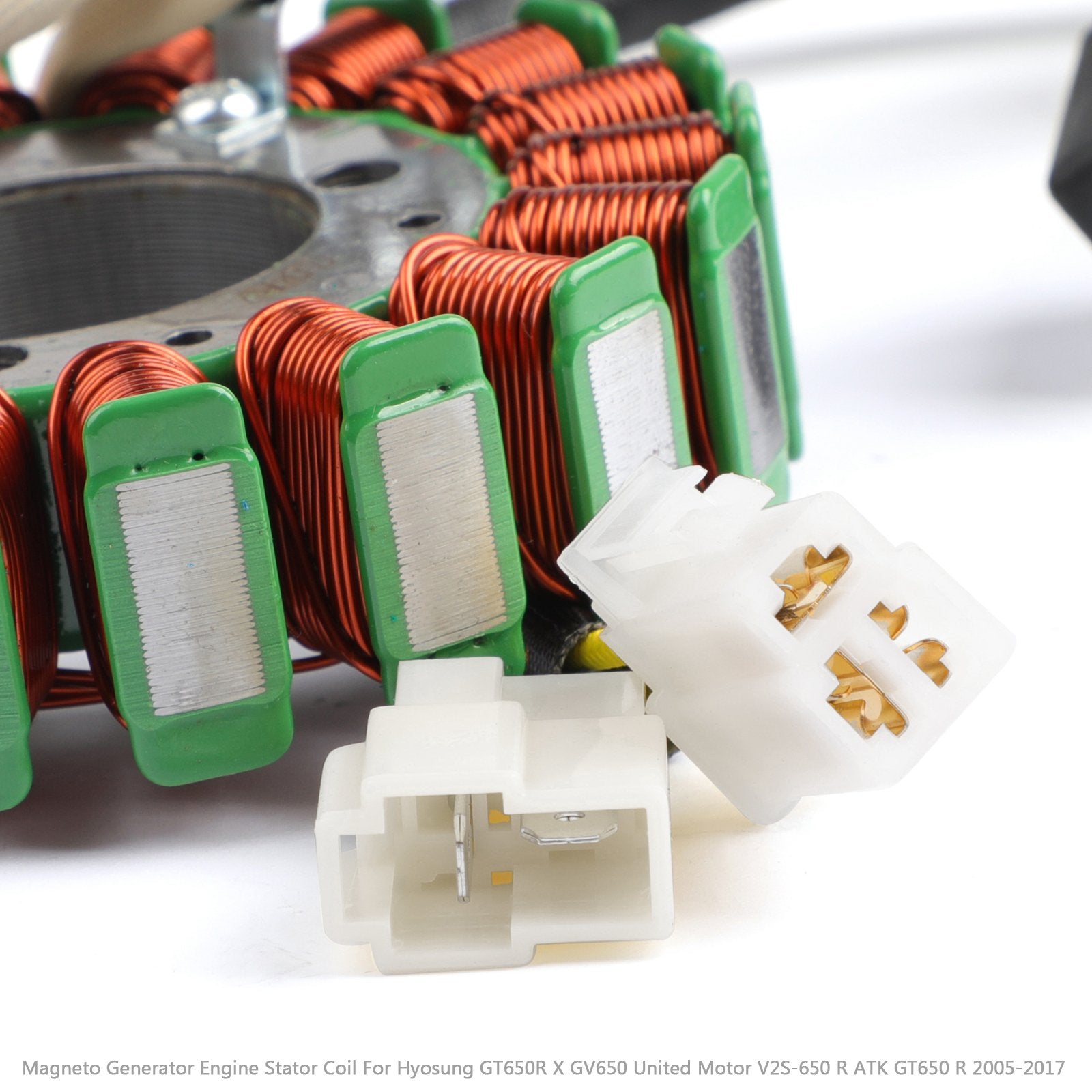

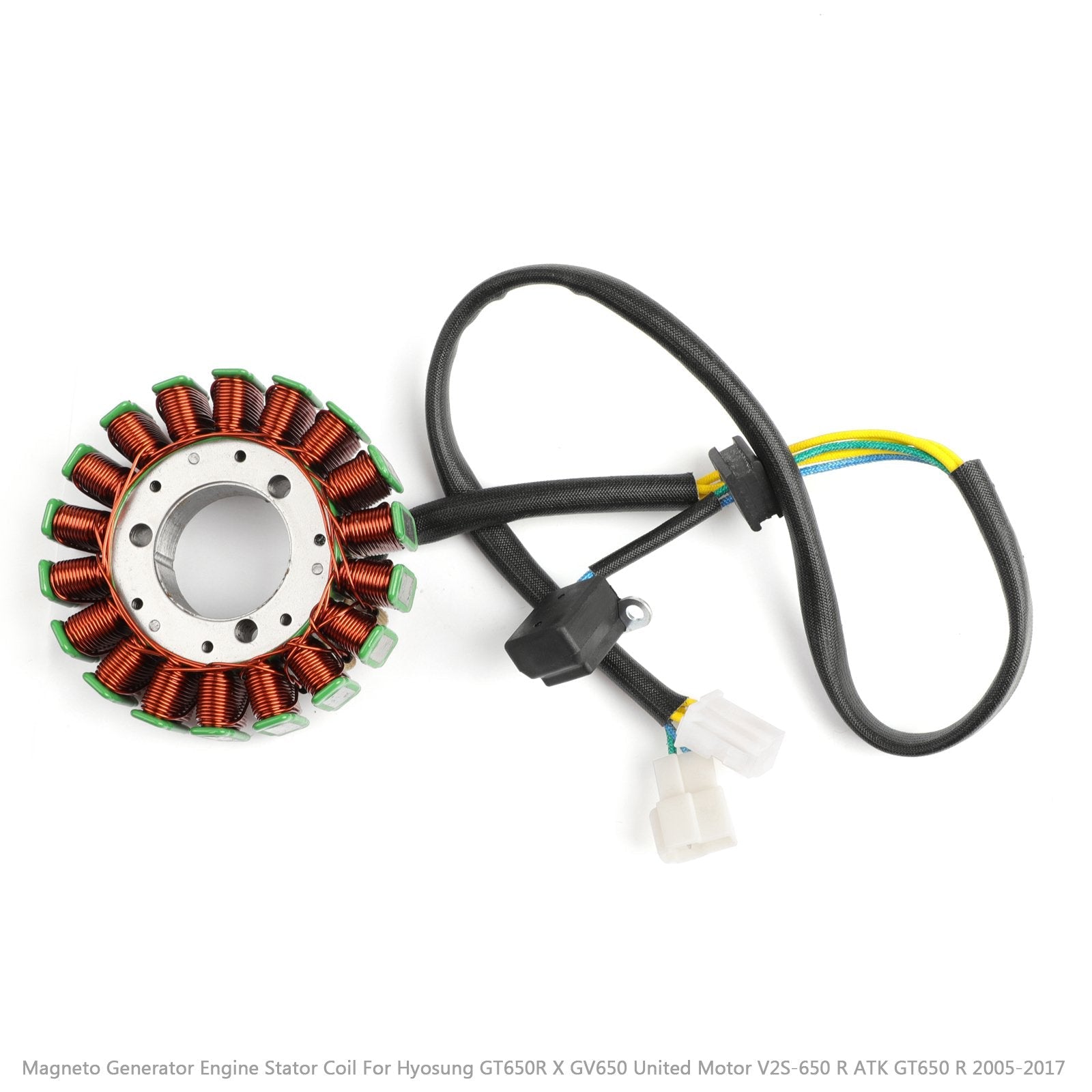

Type: Generator Stator Coil
OEM Replacement Part Number: 32101HN9101
Interior diameter : 38 mm / 1.49"
Exterior diameter : 104 mm / 4.09"
Thickness : 11 mm / 0.43"
Other specifications :
Number of wires : 5
Number of pins : 5
Number of plugs : 2
Number of fixation holes: 3
Fits Hyosung GT650R GT650 2005-2017
Fits Hyosung ST7 Carb 2010-2016
Fits Hyosung GV650 Carb 2005-2009, 2012-2017
Fits Hyosung GT650 X Special Edition 2008
Fits United Motor V2S-650 2006-2008
Fits United Motor V2C-650R 2006-2008
Fits ATK GT650R Carb 2011-2012
Fits ATK GV650 Carb 2010-2012
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
