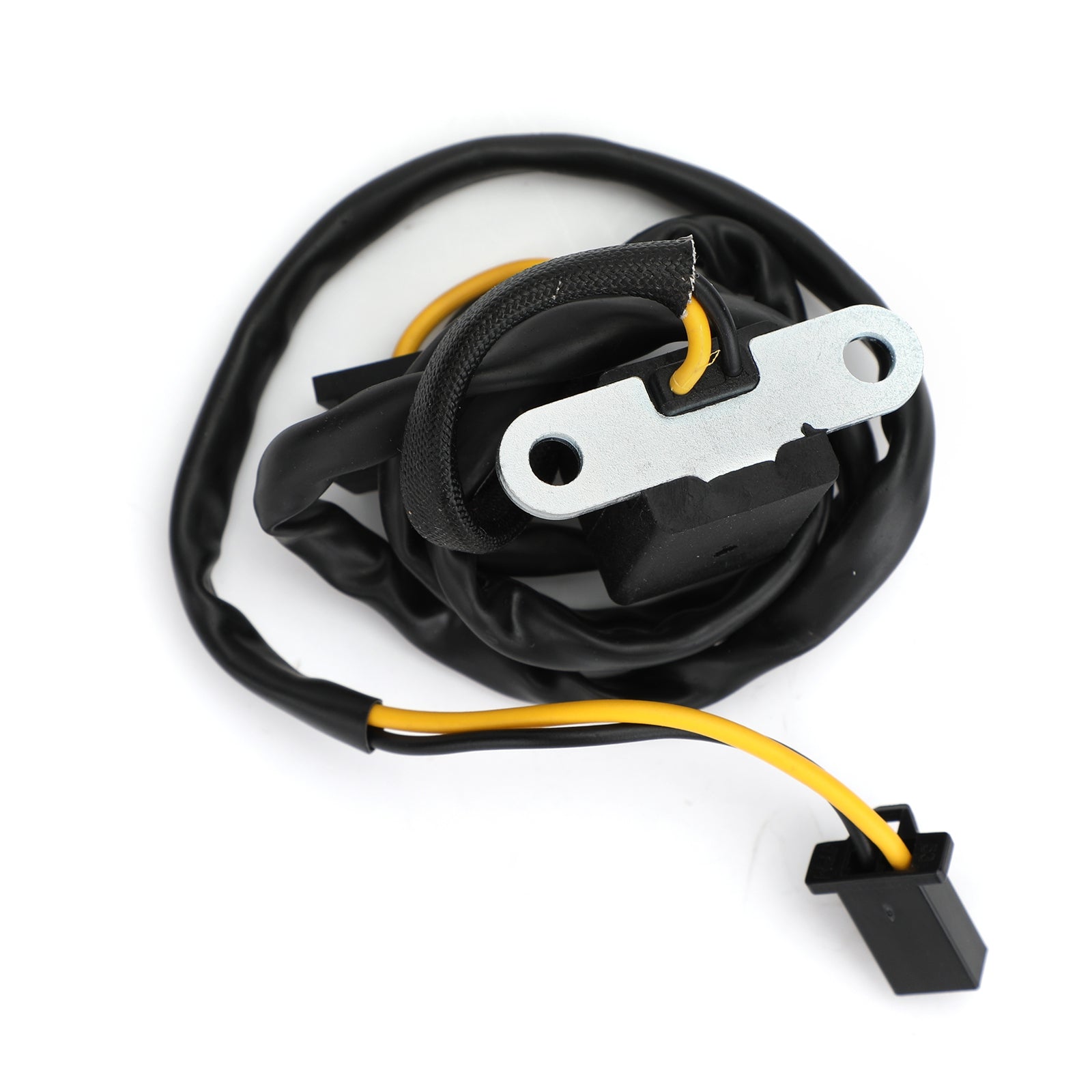

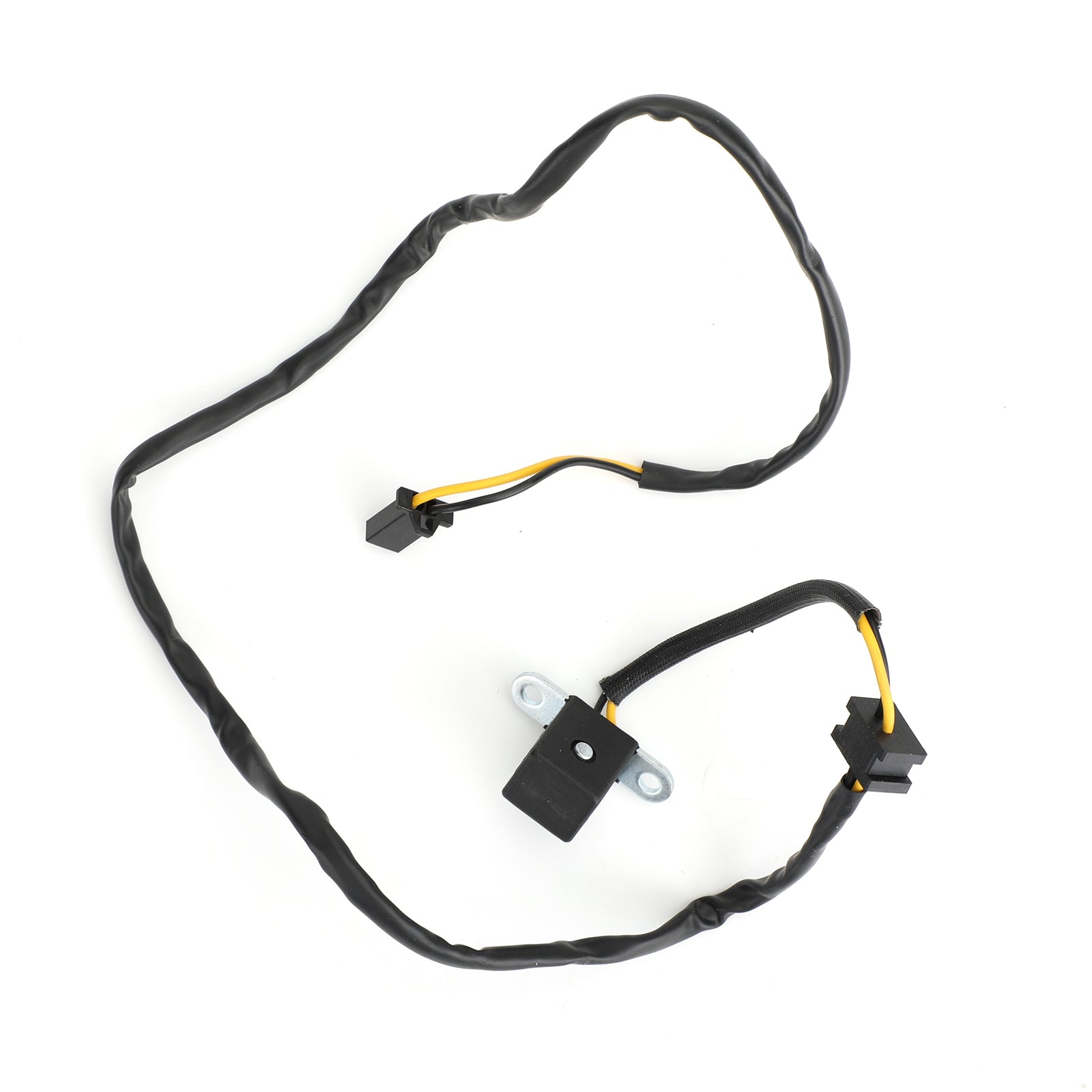

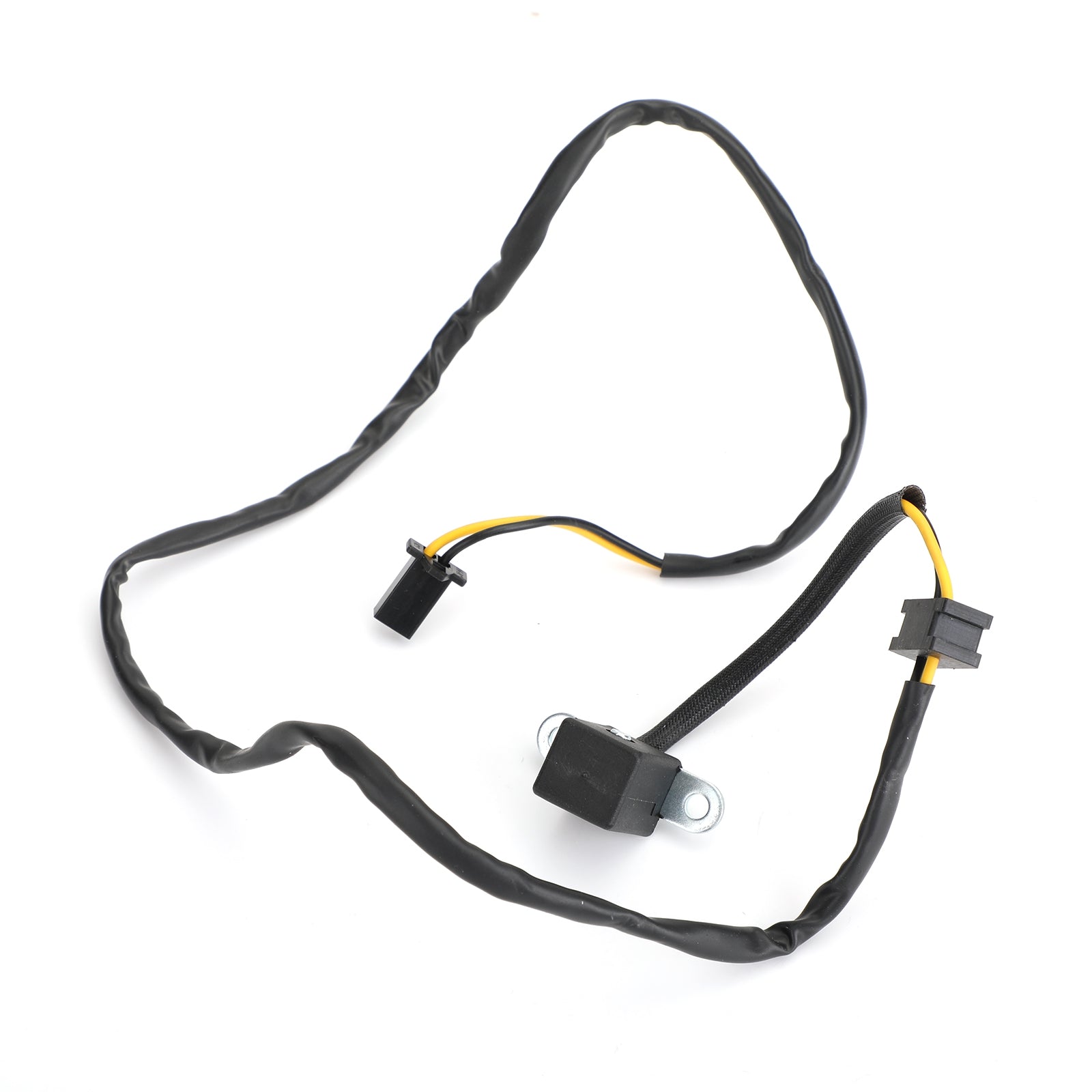

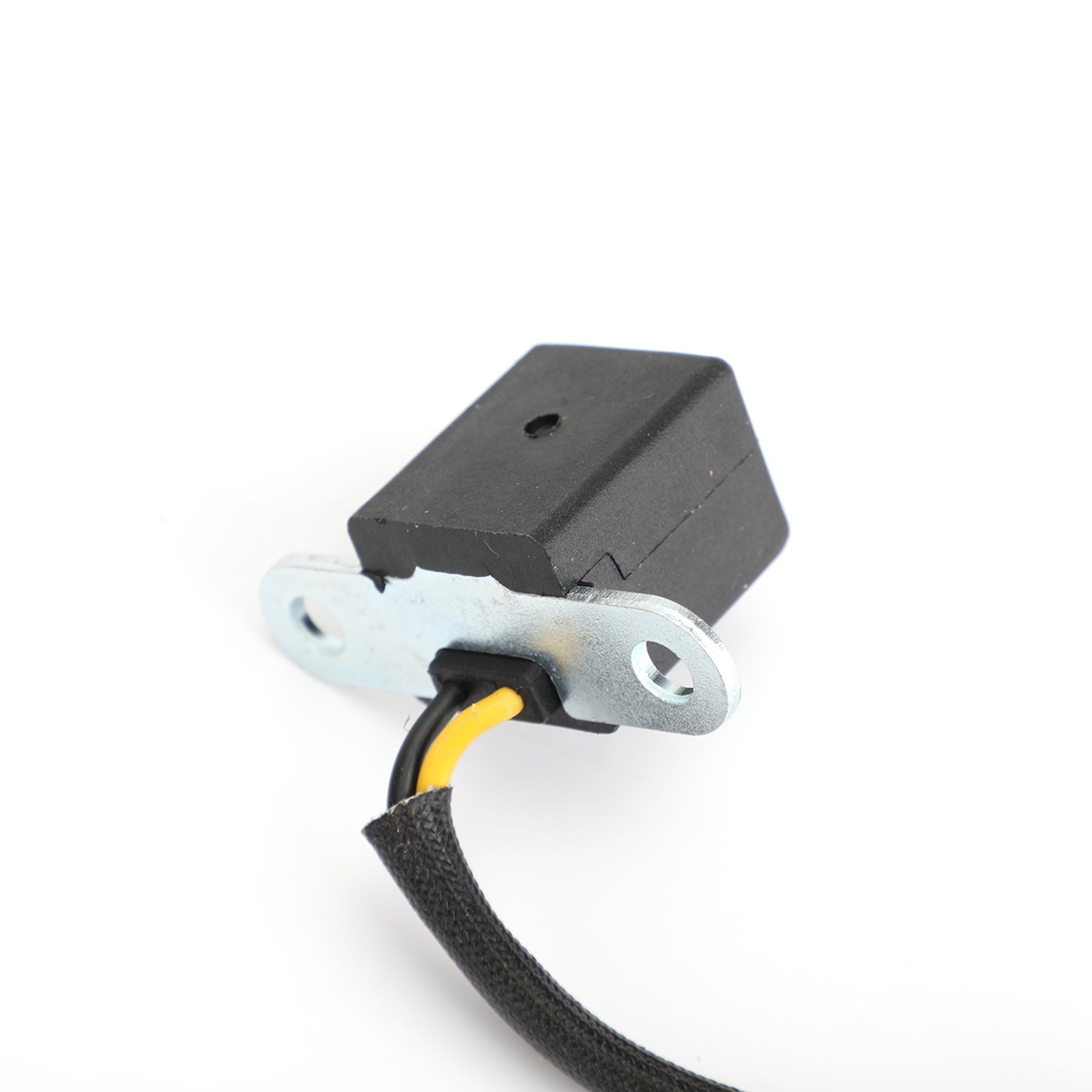

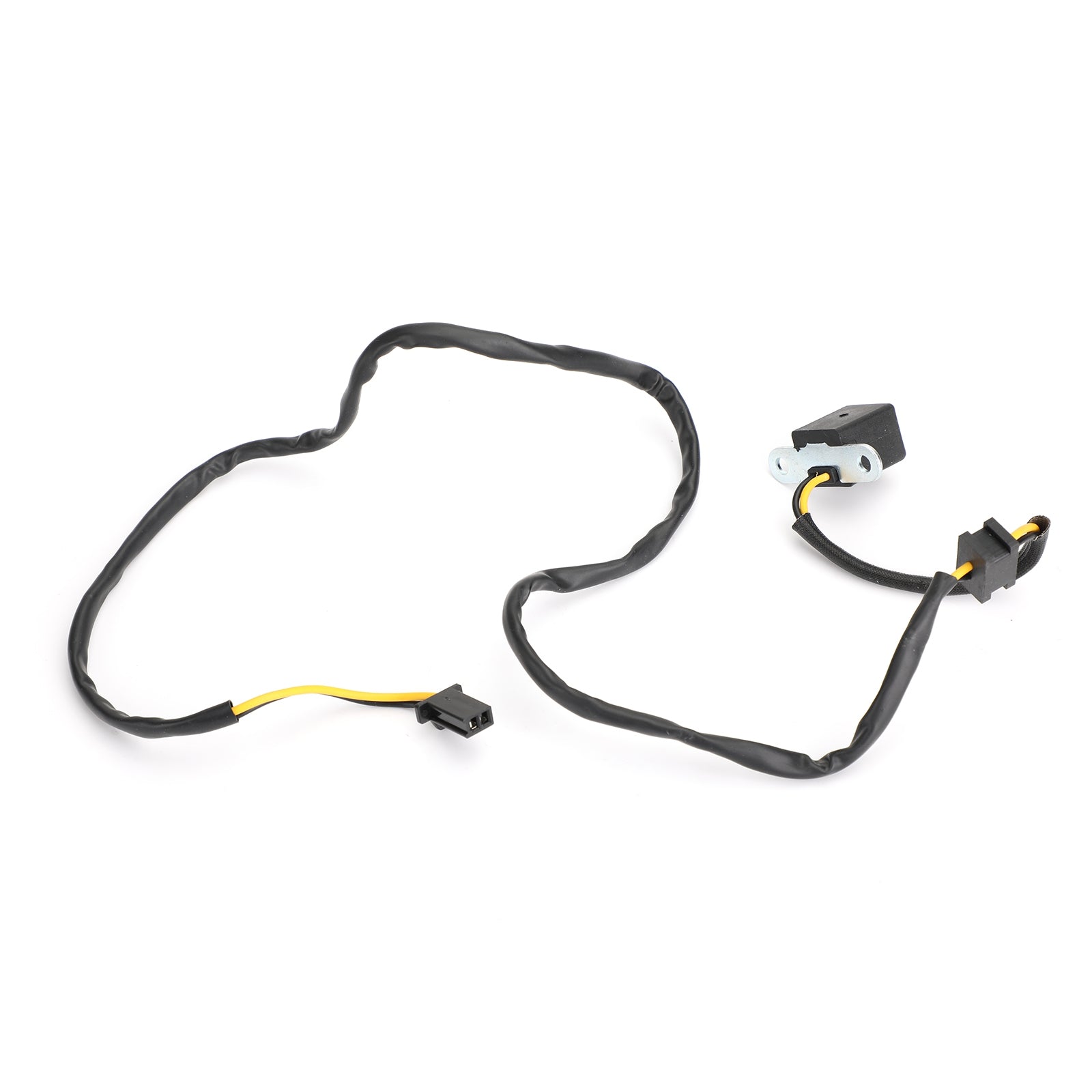

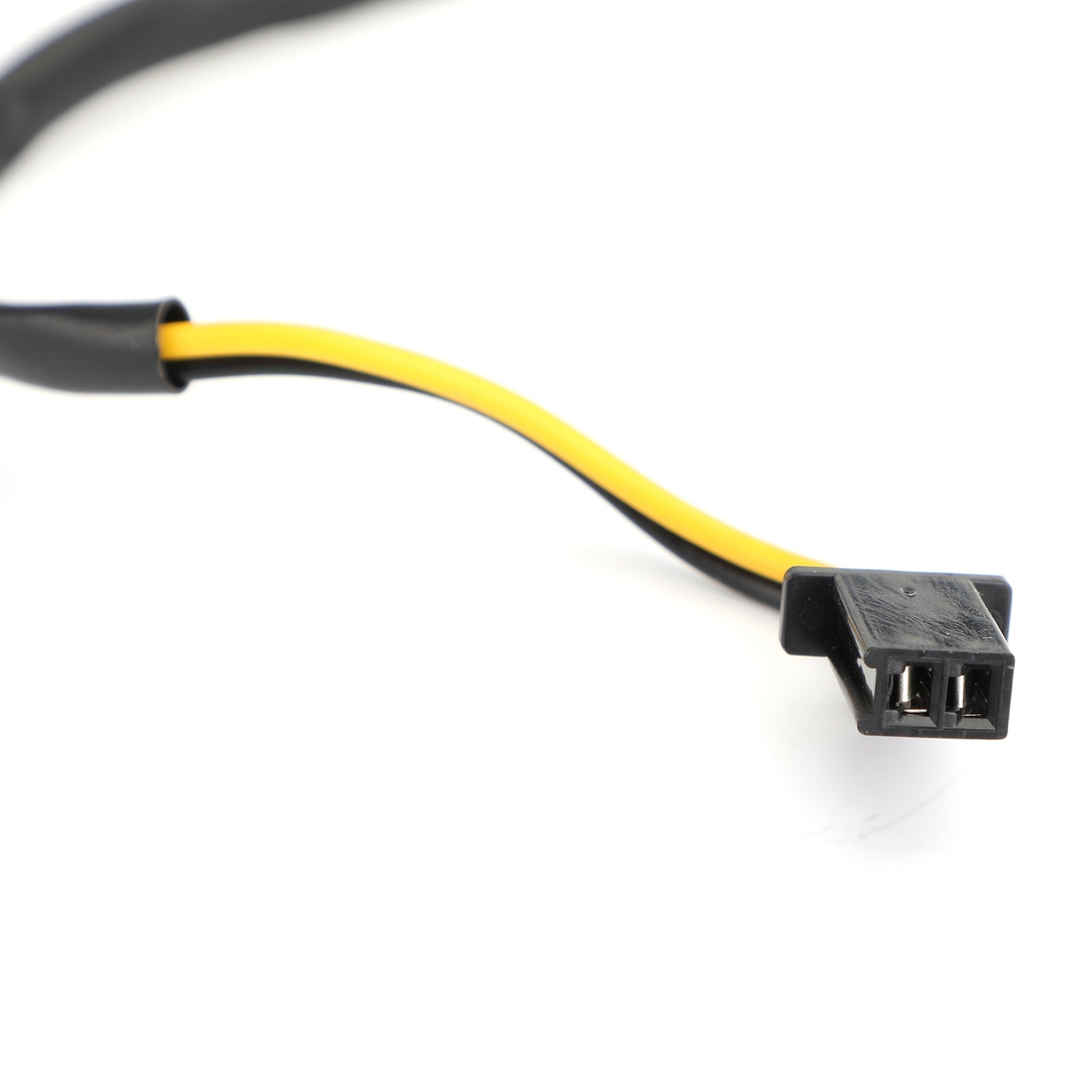

Pulsar / Pulsing Coil for Kawasaki EX250 Ninja 250R 2008 2009 2010 2011 2012 Generic

SKU: M550-B001

Sale price$19.09 CAD


Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Condition: 100% Brand New
Quantity: 1 PC
Type: Pick up pulsar coil

Height: 19 mm
Length: 26 mm
Width: 21 mm
Bracket center to center: 35 mm
Wires length: Approx.870mm

Other specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2

Replacement Part Number(P/N):
Pulsar / Pulsing Coil for Kawasaki EX250 Ninja 250R 2008 2009 2010 2011 2012 Generic
For Kawasaki EX250 Ninja 250R 2008-2012

1 x Pick up pulsar coil

Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.

Free Shipping
Delivery Time: 2-6 working days

Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems

Customer Reviews

Based on 56 reviews
darren boonstoppel

Great product hi quality

Steven Tobler
Stator and pickup coil ktm

Fit and Works perfectly. Shipping was a bit longer than predicted. However easy to forget how far away these parts come from. 👍

John Nichols
Quick delivery

Much quicker than I expected

charles brooks

Stator 398-86617A20 86617A20 174-6617K1 Fits Mercury MANY 6-40HP 2cyl Motors Generic

Peter Mramor
Required tweaking...

Purchased it for my 2011 Suzuki DL650. As installed, it is running great, producing good voltage. Must mention though, not a simple plug'n'play: had to remove the wire retaining clip to get it properly seated... had to move the rubber grommet up the cable to create enough slack for proper seating inside the housing... fought with the rubber grommet to press it in the seating as it appeared a bit too large... had to modify the routing to compensate for the 2" too short cable. Still very happy as the low price outweighed the additional tweaks...
