Magneto Stator+ Voltage Rectifier+ Gasket For EXC 250 5200 MXC 450 520 2000-2004 Generic

Features:
1.Made of high grade magnetically conductive material to minimize the magnetic losses.
2.Computerized winding to optimize quality of copper wiring
3.Higher grade of electric components.
4.Dramatically improves reliability and durability comparing to stock units.
5.Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
6.Rectifier made of highest quality electro-conducting lamination materials.
7.Improved heat sink and charging capabilities.
8.Direct replacement to your original unit.
9.Plug-and-play, direct fit, instruction is NOT Included.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

Replacement Part Number:
Stator Assy: 59039104000, 59039104200
Rectifier, regulator: 50311034000
Gasket, generator cover: 59030040000

Fitment:
Fit for 250 EXC-F Racing 2002-2003
Fit for 400 EXC Racing 2000-2004
Fit for 400 EXC Racing Six Days 2001-2003
Fit for 450 MXC Racing 2003-2004
Fit for 450 MXC-G Racing 2003-2004
Fit for 450 EXC Racing 2003-2004
Fit for 450 EXC-G Racing 2003-2004
Fit for 450 EXC Racing Six Days 2004
Fit for 520 EXC Racing 2000-2002
Fit for 520 EXC Racing Six Days 2002
Fit for 525 MXC Destrt Racing 2003-2004
Fit for 525 MXC-G Racing 2003-2004
Fit for 525 MXC Racing 2003-2004
Fit for 525 EXC Racing 2003-2004
Fit for 525 EXC-G Racing 2003-2004
Fit for 525 EXC Racing Six Days 2003-2004

(The following is For 4K3B Version)
Fit for 400 MXC Racing 2001-2002
Fit for 520 MXC Racing 2001-2002
Fit for 540 SXS Racing 2003

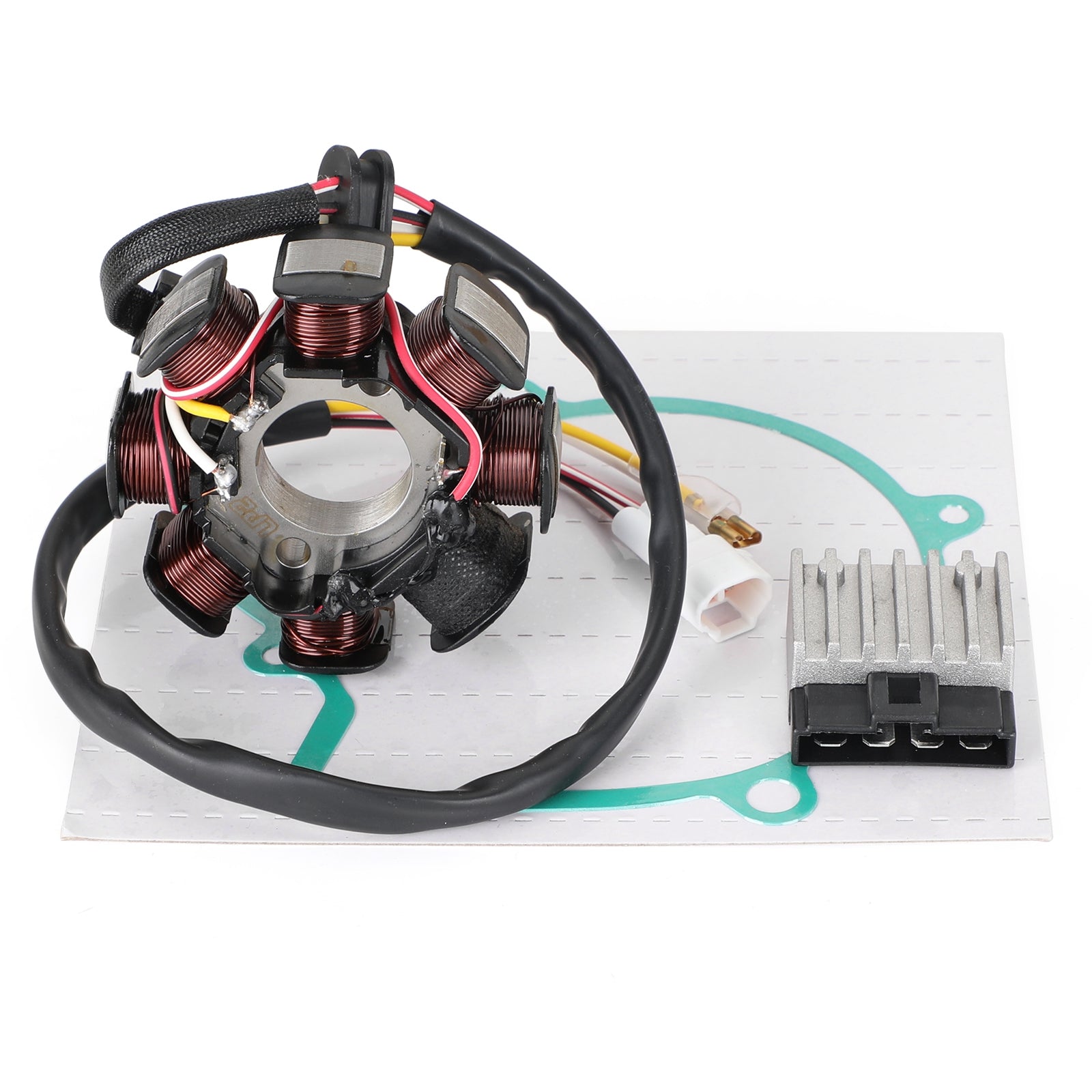

Package Includes:

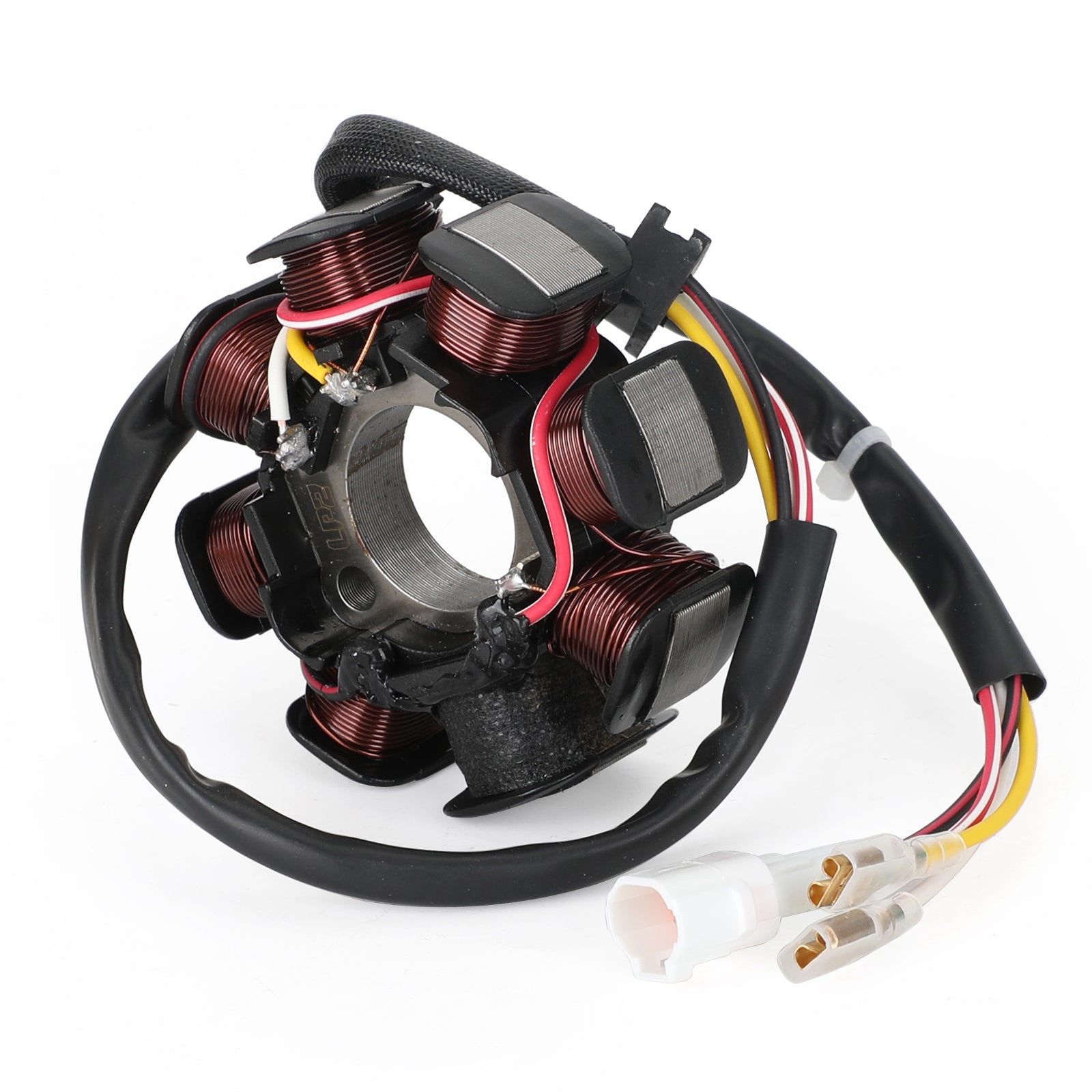

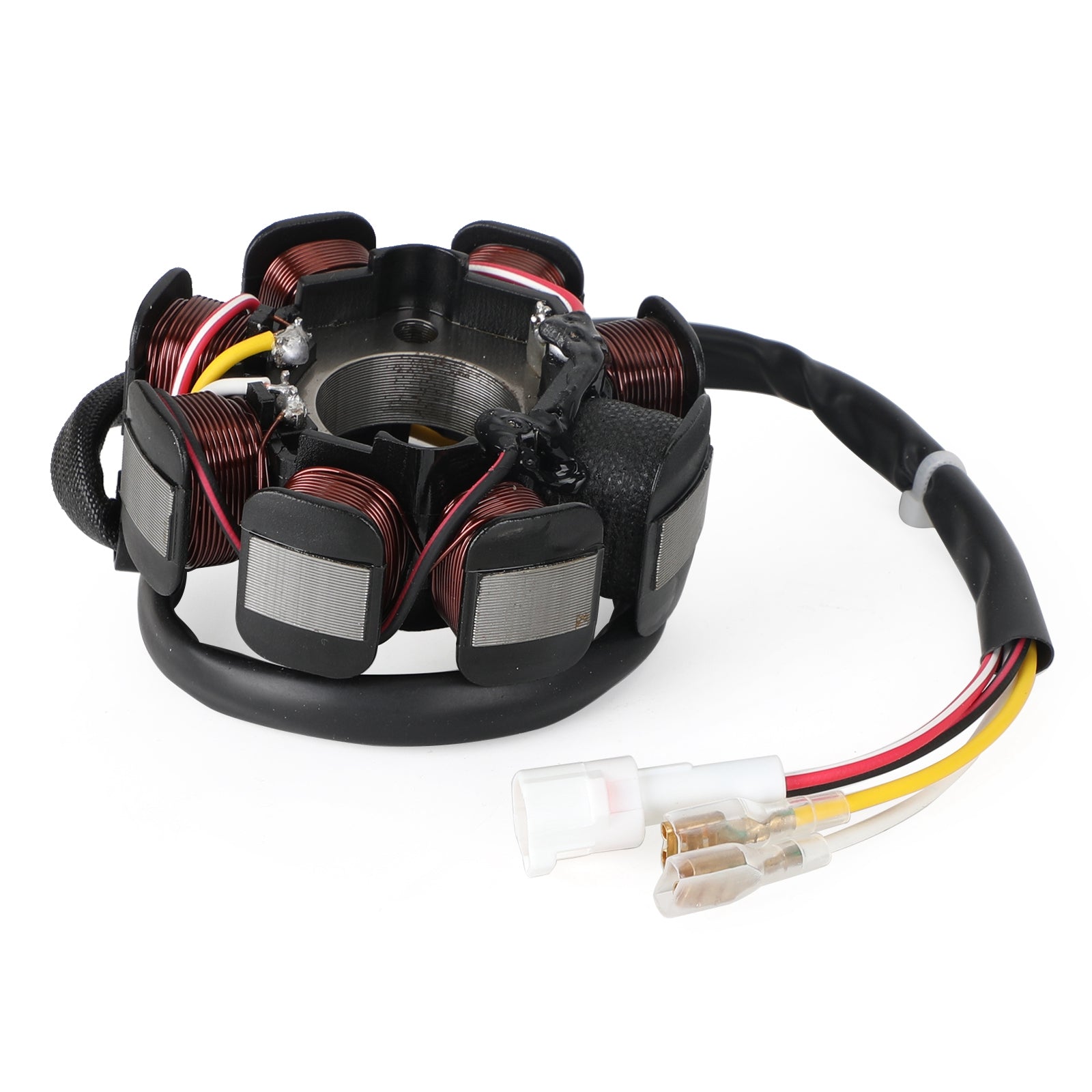

1 x Stator Coil

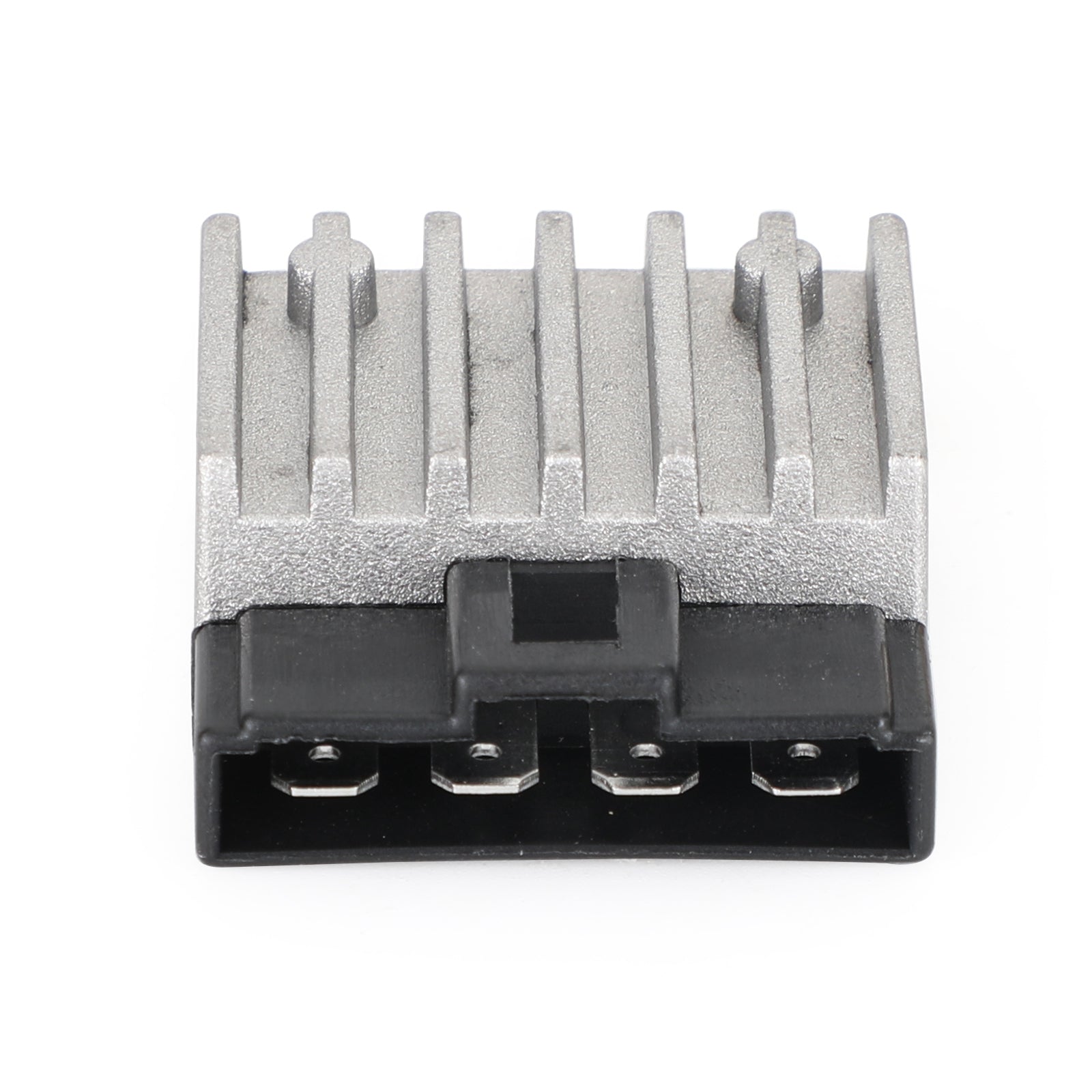

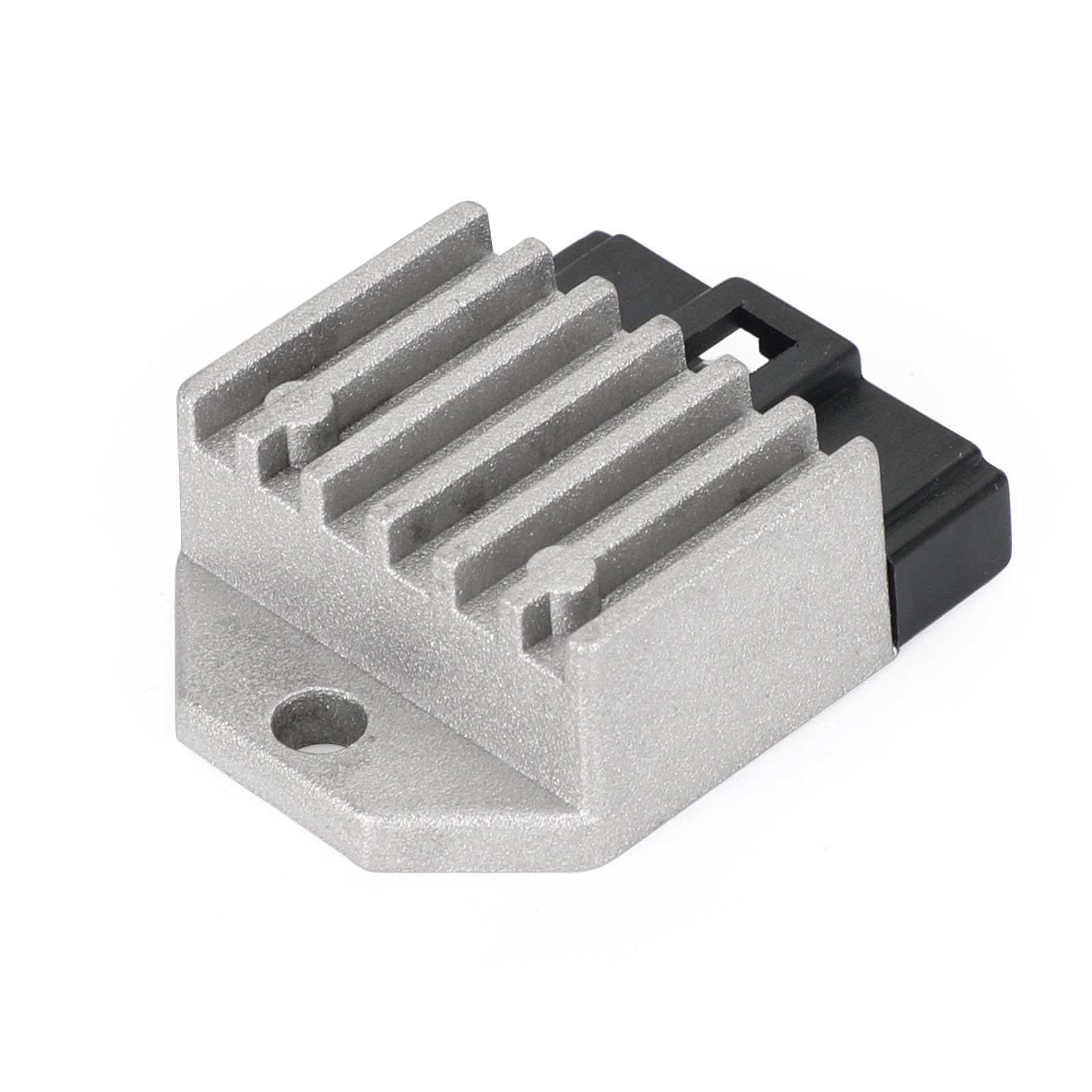

1 x Regulator Rectifier

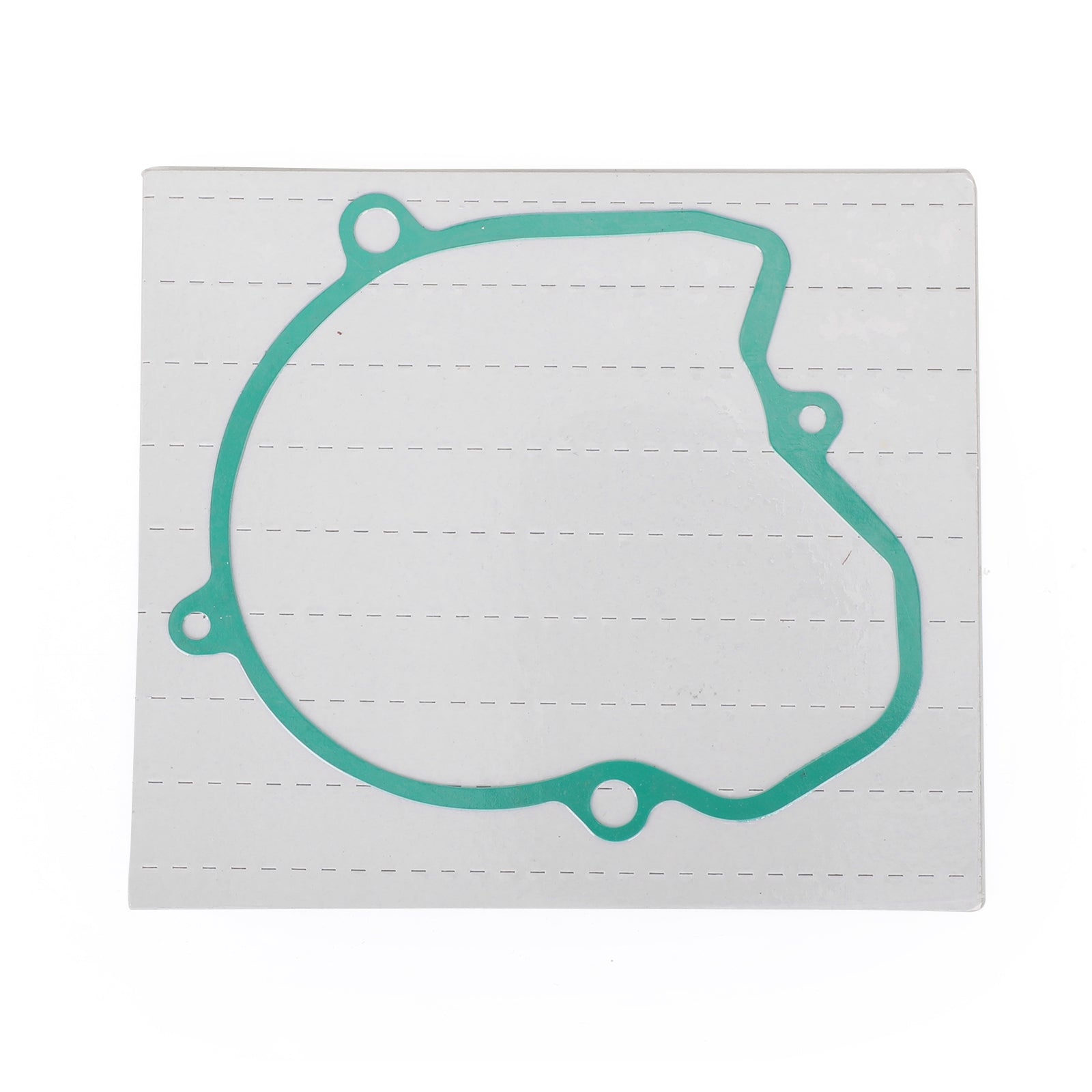

1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
