Description
?
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
Stator Assy: 28P-81410-00, 28P-81410-01
Rectifier, regulator: 1D7-81960-00, 1D7-81960-01
Gasket, generator cover: 3B4-15451-00, B4F-15451-00
Fitment:
Fit for Yamaha YFM550 YFM550FWA Grizzly 550 2009-2015
Fit for Yamaha YFM550 YFM550FWA Grizzly 550 Hunter 2009-2014
Fit for Yamaha YFM550 YFM550FWAD Grizzly 550 EPS 2009-2015
Fit for Yamaha YFM550 YFM550FWAD Grizzly 550 EPS Hunter 2009-2015
Fit for Yamaha YFM550 YFM550FWAD Grizzly 550 EPS Special Edition 2009
Fit for Yamaha YFM700 YFM700FWA Grizzly 700 2008-2022
Fit for Yamaha YFM700 YFM700FWA Grizzly 700 Hunter 2008-2022
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS 2007-2022
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS Hunter 2007-2022
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS Special Edition 2007-2015
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS Limited Edition 2008-2013
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS Ducks Unlimited 2007-2009
Fit for Yamaha YFM700 YFM700FWAD Grizzly 700 EPS Outdoorsman Edition 2007
Fit for Yamaha YFM700 Kodiak 700 (YFM70KDXMG) 2019-2021
Fit for Yamaha YFM700 Kodiak 700 (YFM70KDXMR) ?2019-2021
Fit for Yamaha YFM700 Kodiak 700 4WD HUNTE (YFM70KDHMH) 2019-2021
Fit for Yamaha YFM700 Kodiak 700 EPS (YFM70KPAMG) 2019-2021
Fit for Yamaha YFM700 Kodiak 700 EPS HUNTE (YFM70KPHMH) 2019-2021
Fit for Yamaha YFM700 Kodiak 700 EPS SE (YFM70KPSMG) 2019-2021
Fit for Yamaha YFM700 Kodiak 700 ESP SE (YFM70KPSMO) 2019-2021
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:

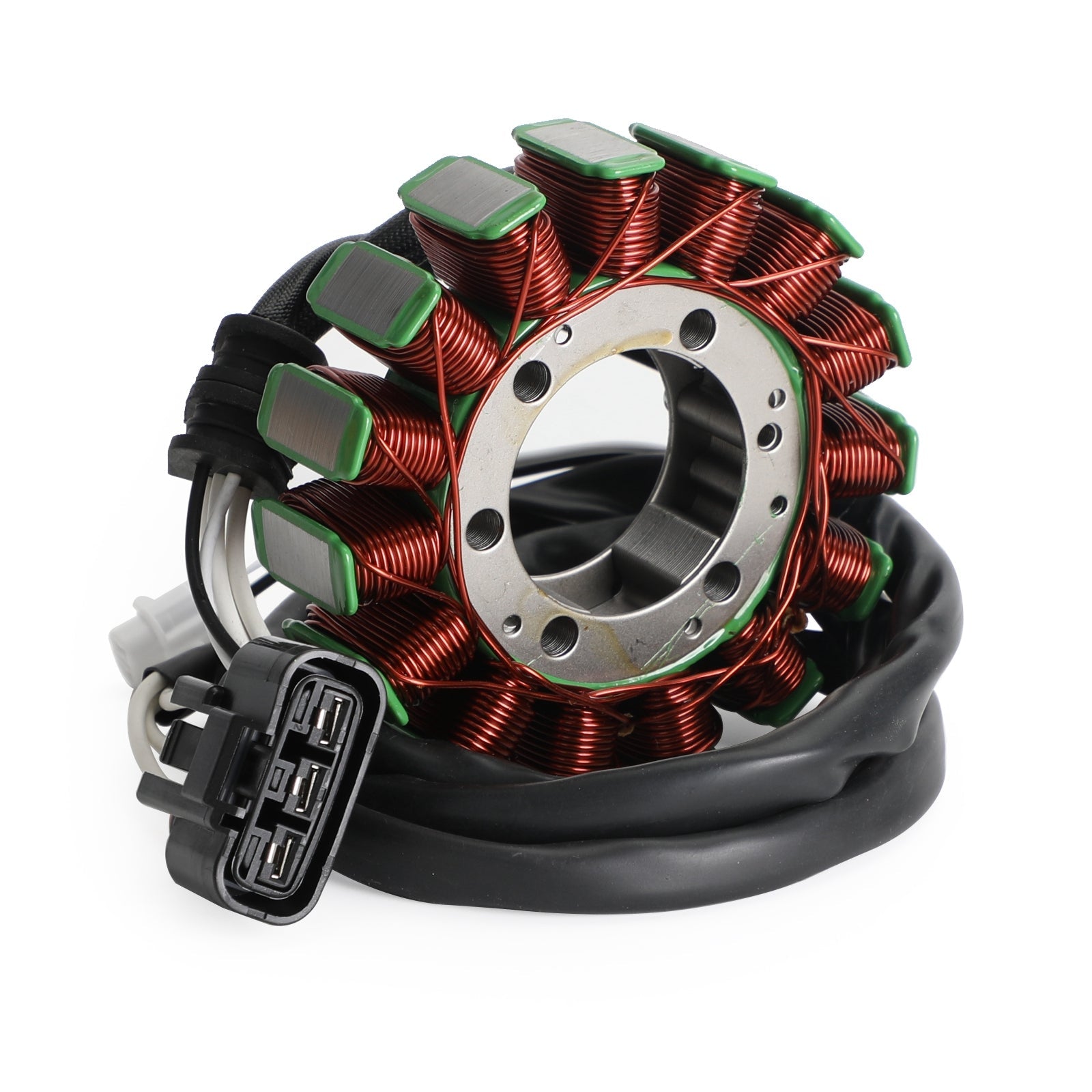

1 x Stator Coil

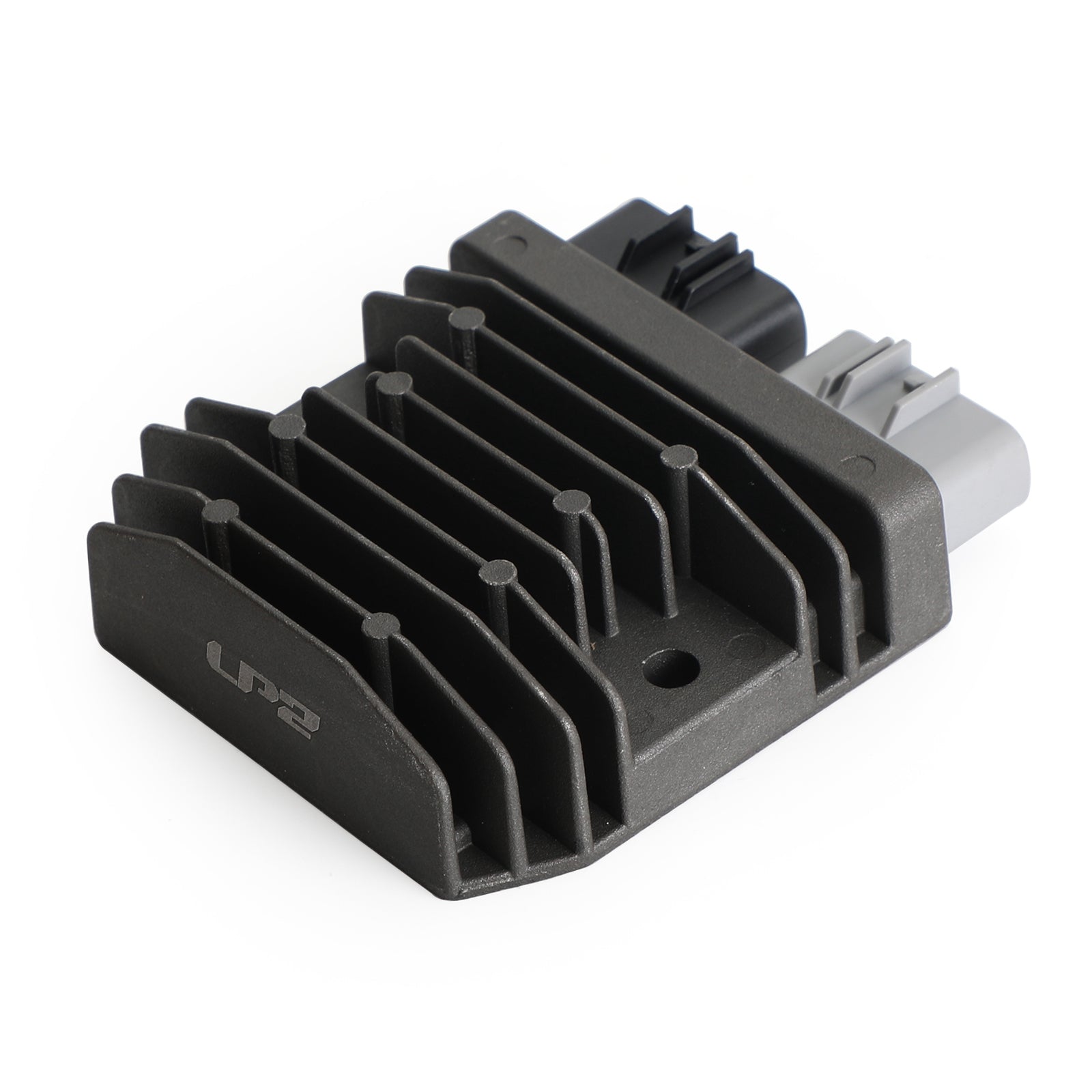

1 x Regulator Rectifier

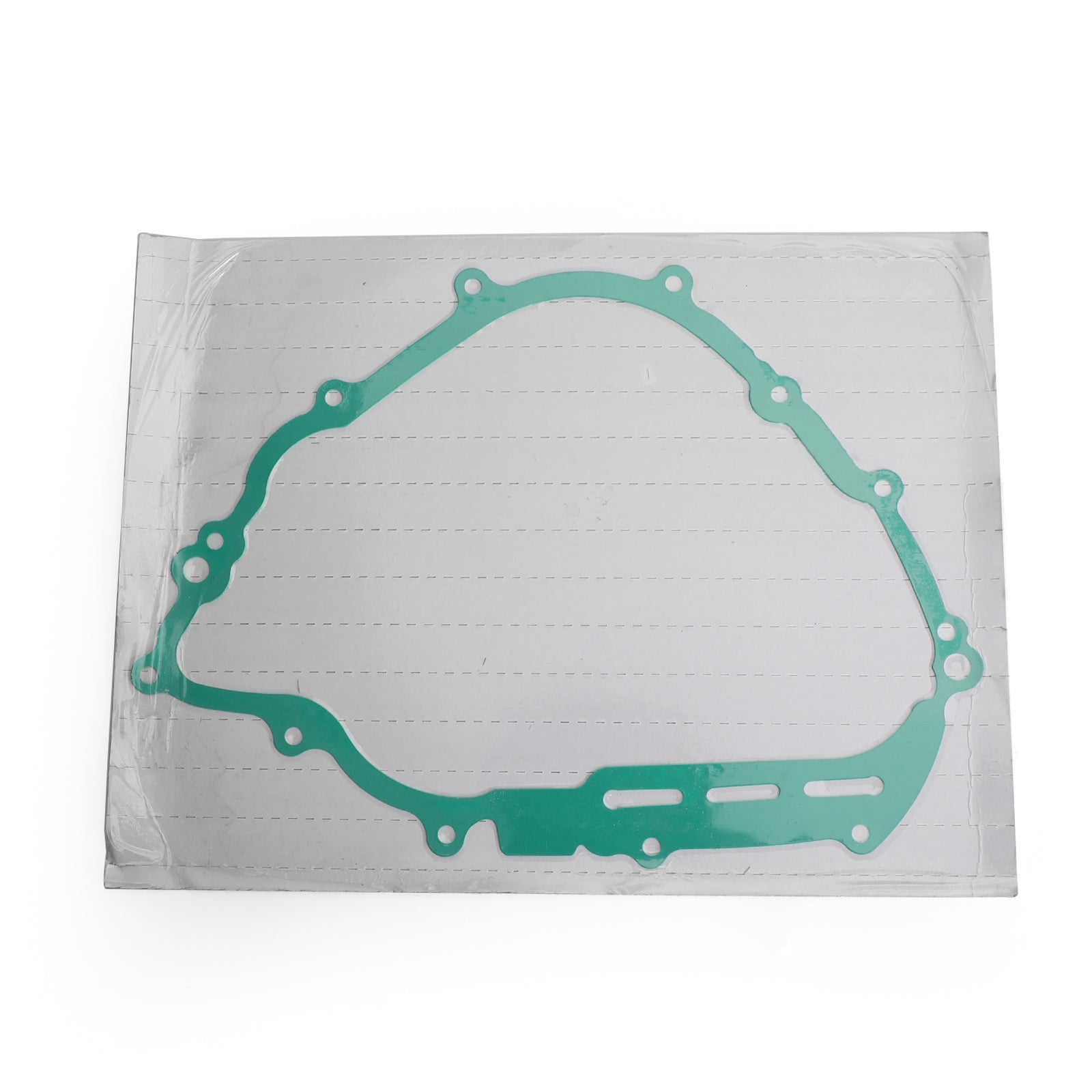

1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
