Features:

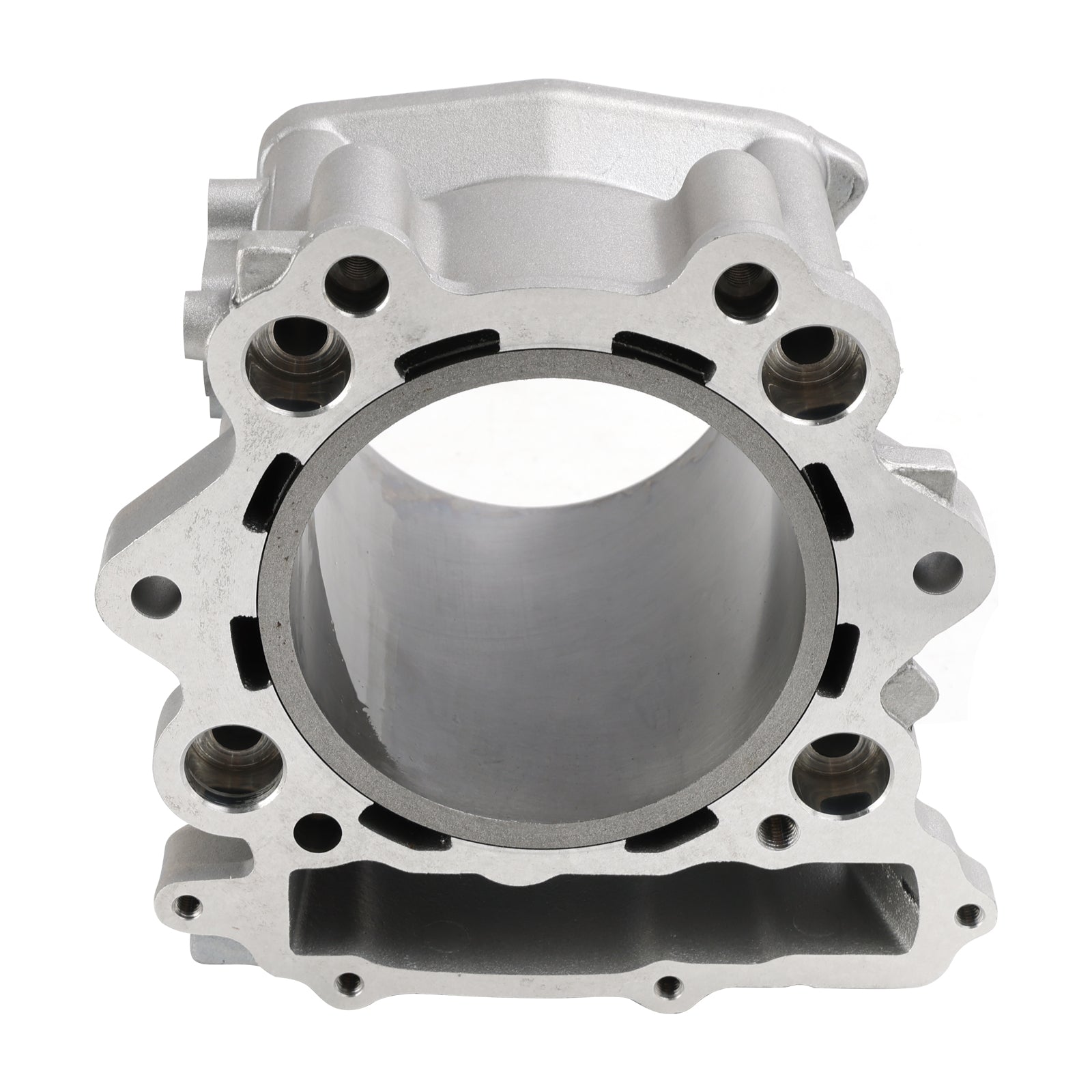

Cylinder block kit.
Commonly used for (but not limited to) 700cc engines, such as the Hisun 700cc 4x4 ATVs, as well as many other clones, rebrands and similar displacement machines.

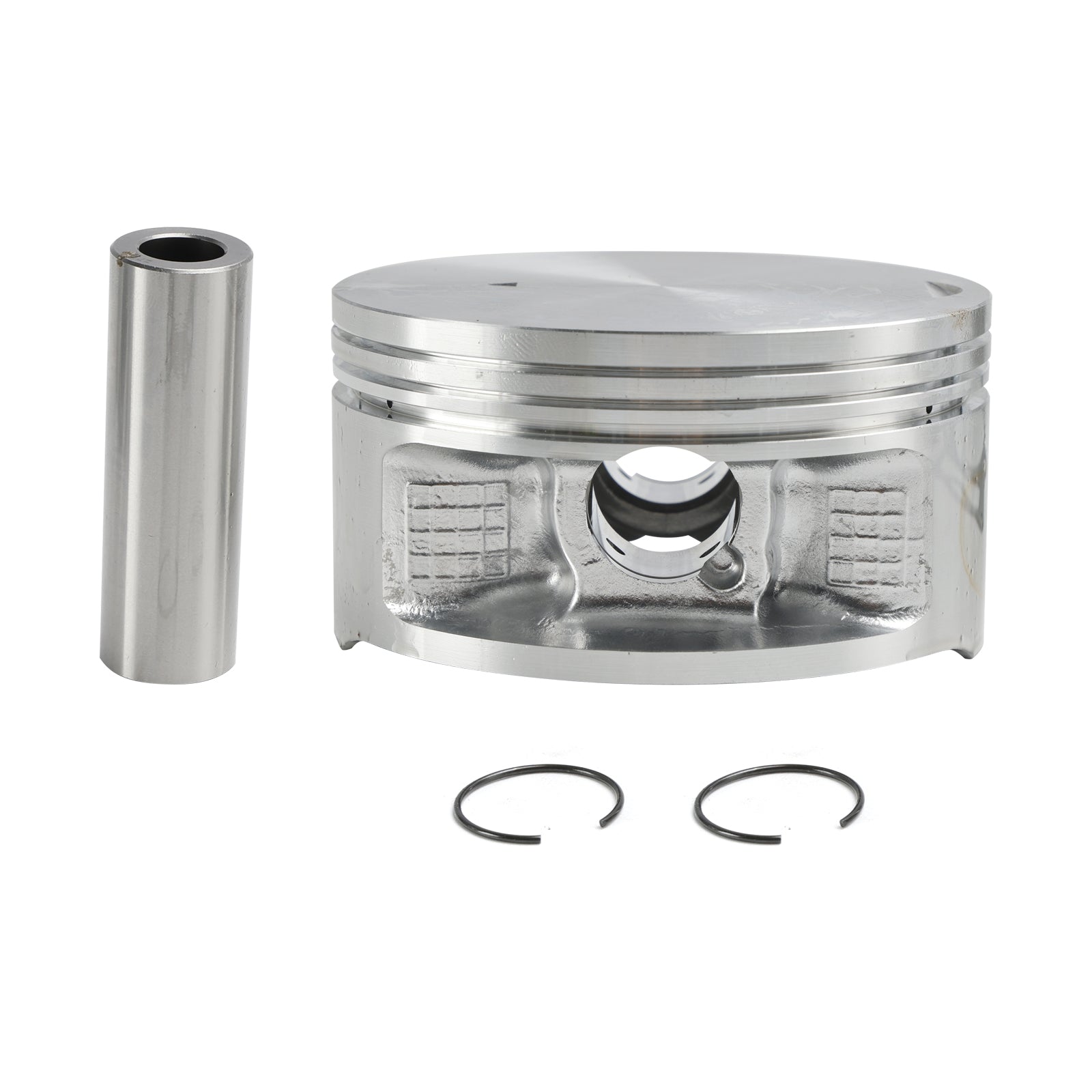

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 102 mm, 22mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 686cc
Bore Size: 102mm
Piston Diameter: 101.5mm
Piston Height: 54mm
Pin Diameter: 22mm
Pin Length : 57mm
Replaces Part Number:
Cylinder: 12100-007-0100, 12100-F39-0000
Cylinder Base Gasket: 12150-007-0000, 12150-F39-0000
Cylinder Head Gasket: 12250-007-0000, 115101-F39-0000
Piston (Std): 13101-007-0000
Pin, Piston: 13111-007-0000
Piston Ring Set (Std): 13120-007-0000
Circlips, piston (2): 91301-007-0000
Fits Models:
Fits Most (But Not All) EFI and Carburetor HiSUN 700 UTVs and ATVs.
Including Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.
Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
